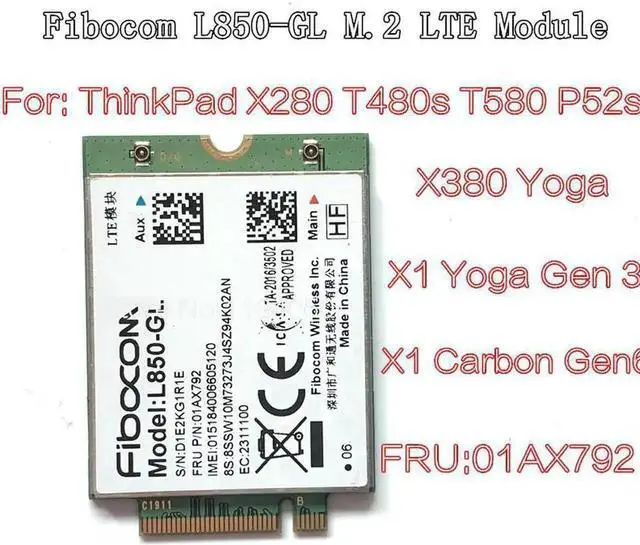

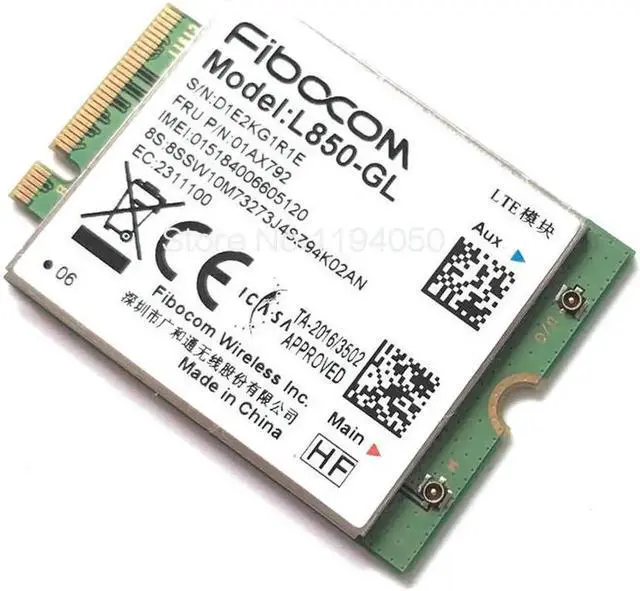

JAENFONG Fibocom L850-GL L850 01AX792 forThinkpad X1 Carbon 6th X280 T480 T480s X1 Yoga 3rd 4th T490 T490s T580 L580 P52 WWAN Card

Type: Wireless

Certification: CE, FCC

Style: Internal

Origin: Mainland China

Products Status: STOCK

Model Number: L850-GL

Please pay attention to this module in Thinkpad version. Available only for the following Thinkpad laptops

compatibility

Wireless, CMB, FBC, L850-GL (01AX792) is compatible with the following machines:

Sheet-X280-TYPE-20KF-20KE

THINKPAD-X1-CARBON-6TH-GEN-TYPE-20KH-20KG

THINKPAD-X1-CARBON-7TH-GEN

Sheet-T480-TYPE-20L5-20L6

ThinkPad T480S-TYPE-20L7-20L8

ThinkPad T580-TYPE-20L9-20LA

Thin plate-P52S-TYPE-20LB-20LC

Sheet-X1-YOGA-3RD-GEN-TYPE-20LD-20LE-20LF-20LG

Sheet X380-Yoga

Sheet L480-TYPE-20LS-20LT

Sheet L580-TYPE-20LW-20LX

Sheet-P52-TYPE-20M9-20MA

Thin plate-A485-TYPE-20MU-20MV

Thinking treasure-A285-TYPE-20MW-20MX

D330-10IGM

Product manual:

L850-GL is an industry-leading LTE Cat9 high-speed full memory module. It is based on the Intel7360 platform and is based on the M. 2 interface. The size of the L850-GL is 30 * 42 * 2.3 mm. It supports LTE FDD, LTE TDD, WCDMA and many other formats. Notebook computer applications are preferred, and can be widely used in gateways, industrial monitoring and telemedicine fields. Fibocom L850 has a downlink speed of 450Mbps, supports 2 * 2MIMO, supports 3CA combination and 2CA combination. At the same time, it supports eSIM, which can meet users' rapid business needs.

product description

Basic Features

Dimensions (mm): 42.00 x 30.00 x 2.30

Packaging: M. 2

LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B11 / B12 / B13 / B17 / B18 / B19 / B20 / B21 / B26 / B28 / B29 / B30 / B66

LTE TDD: B38 / B39 / B40 / B41

WCDMA: B1 / B2 / B4 / B5 / B8

Power: 3.135V ~ 4.4V (Typical 3.3V )

Working temperature: -20 ~ + 65

Ranch

interface

SIM card: x 1, 1.8V / 3.0V

PCIe:

USB 3.0: x 1

GPIO:

BodySar / TAS:

Tunable antenna:

Ranch

Ratification

Regulations: PTCRB / GCF / RoHS / HF / CB / FCC / CE-RED

Country / Region: CCC / SRRC / ENACOM / RCM / TRA / DOC / EAC / IC / TRC / SUBTEL / CRC / ARCOTEL / VOC / SDPPI / MOC / JPA & JRF / TRC / KCC / MOC / SIRIM / IFT / Morocco / NTA / TRA / PTA / MTC / NTC / FAC / ICASA / CITC / IDA / NCC / NBTC / Dealer Registration / TRA / VC / CONATEL

Operator: AT & T / Verizon / Deutsche Telekom / Optus / Telefonica / Vodafone / Swisscom / Docomo / KDDI / Softbank

Data transmission

LTE FDD (Mbps): 450 (DL) / 50 (UL) (Cat9)

LTE TDD (Mbps): 347 (DL) 30 (UL) (Cat9)

UMTS (kbps): 384 (DL) / 384 (UL)

DC-HSPA + (Mbps): 42 (DL) / 5.76 (UL)

Feature

USSD:

STK:

Operating system driver: Win10 / Android * / Linux / Chrome OS

GNSS: GPS / GLONASS / BeiDou

AGNSS:

SMS:

Protocol: MBIM / NCM
