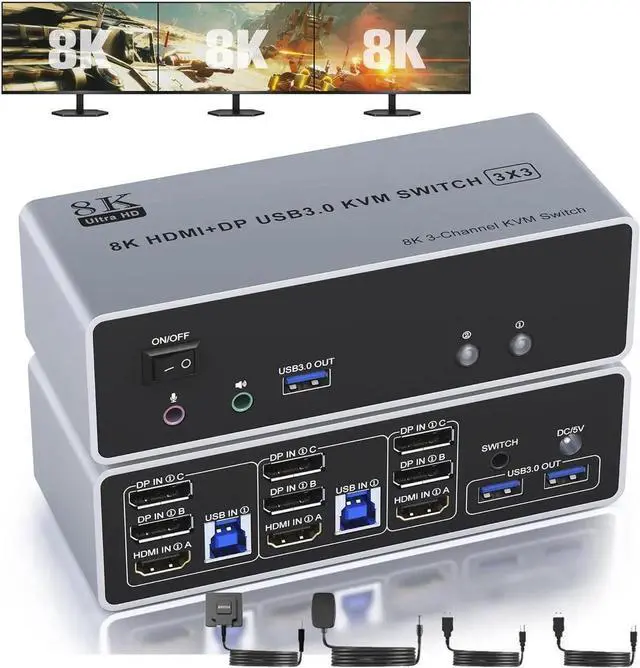

KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz, HDMI + 2 Displayport Triple Monitor KVM Switch for 2 PC Share 3 Monitor, Audio Mic Port and 3 USB 3.0 Devices Support Extended and Copy Mode
Limited time offer, ends 11/14 By Smart core

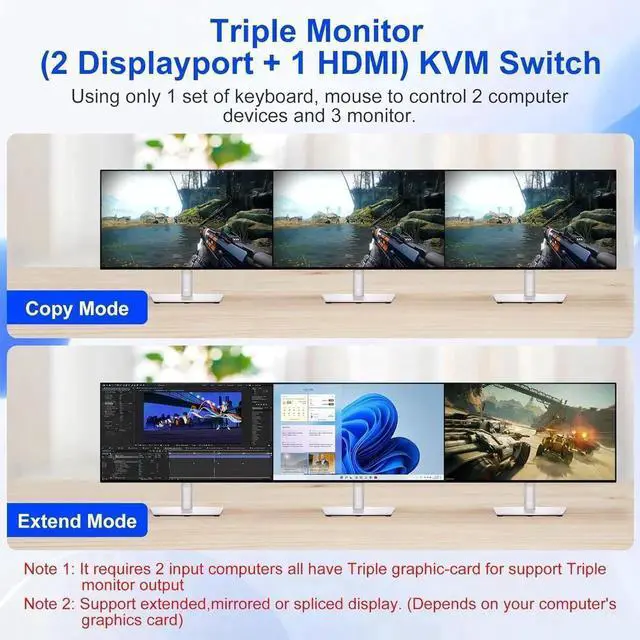

- 3 Monitor KVM Switch: This KVM Switches 2 DP+1 HDMI connects 2 desktops or laptops to share 3 monitors and 3 USB 3.0 ports & Audio & Microphone Output. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays.
- Ultra HD 8K@60Hz: Support up to Ultra HD 8K@60Hz resolution. And if you need different resolutions, fear not, it supports 8K@30Hz, 4K@120Hz,4 K@60Hz, 3D, and 1080P as well.

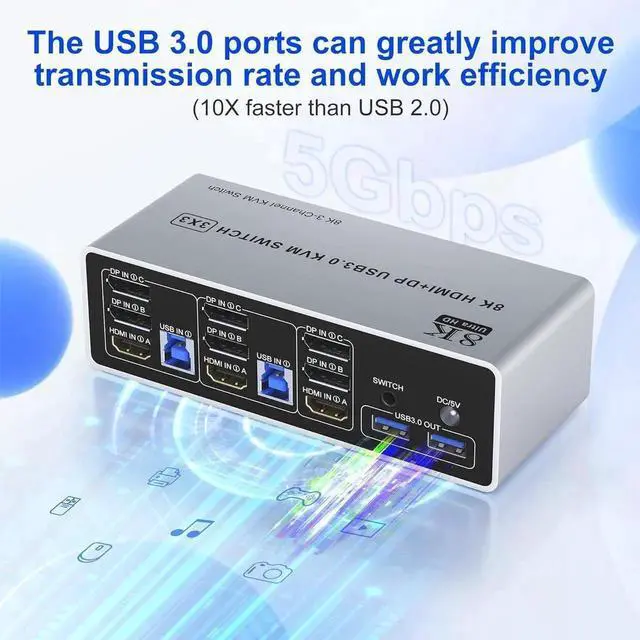

- 3 USB 3.0 & Audio & Microphone Output: with 3 integrated USB 3.0 ports which can recognize keyboard, mouse, printer and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices. KVM Also supports separate audio and microphone output.

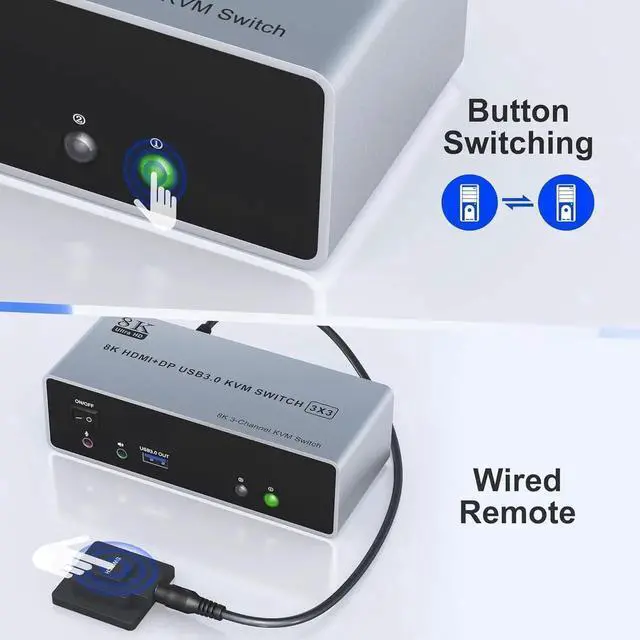

- Convenient Switching Modes and Wide Compatibility: You can switch computers using the buttons on the panel or the wired remote control (supplied). Easy switching without delay. Widely Compatible with Windows/Vista/XP/Mac OS/Linux and Unix operating systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

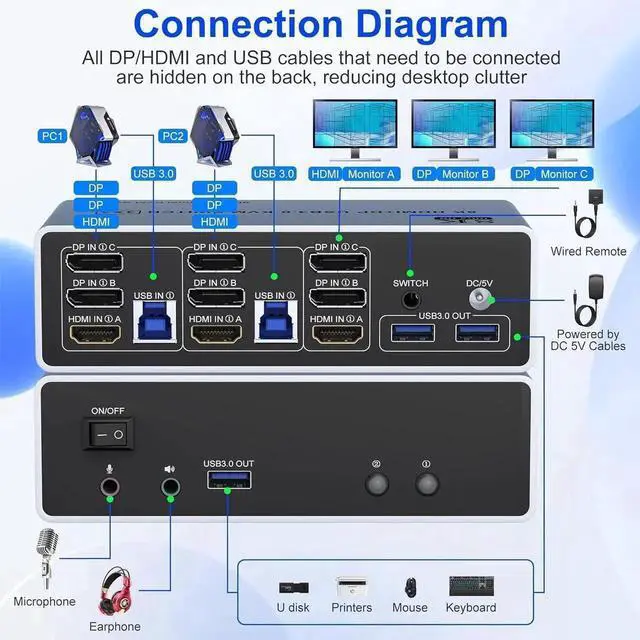

Connection Steps & Notes
- 1. Insert the adapter into the KVM ;
- 2. Plug the DP/HDMI cable into the KVM and monitor;(Output)
- 3. 1). Connect PC1 Firstly(Input)
- Use 1 HDMI cable to connect the "HDMI IN 1 A" input interface and PC1 HDMI A output interface,
- Use 1 DP cable to connect the "DP IN1 B" input interface and PC1 DP B output interface.
- Use 1 DP cable to connect the "DP IN1 C" input interface and PC1 DP C output interface.
- Use 1 "USB-a to USB-b" USB3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.
- 2)Then, Connect PC2 according to the connection steps of PC1.
- 4. Insert the mouse and keyboard into the KVM switch
- 5. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(HDMI+2 DP+USB cable) connect to the KVM.
- 2. If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
- 3. Note: DP/HDMI cables are not included
