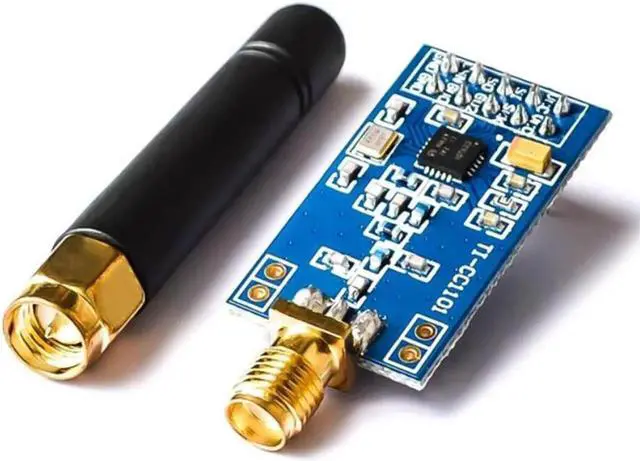

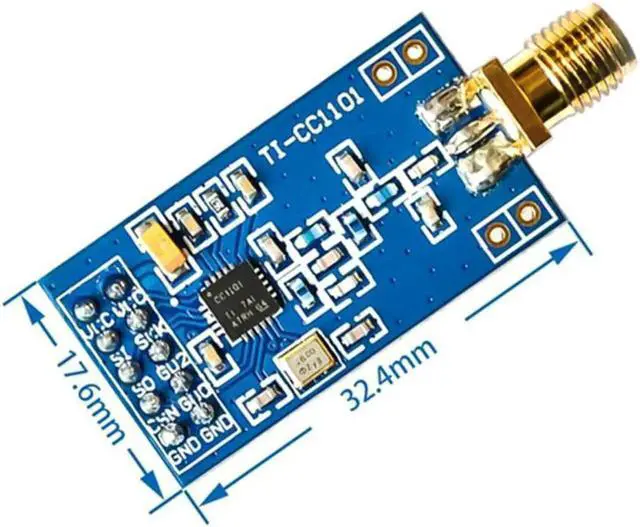

Ultra-stable CC1101 wireless module / industrial grade, with external antenna, with rich routines

Model Number:CC1101

Because the 1.2K baud rate of CC1101 has higher requirements on the accuracy of peripheral circuit parameters, in order to improve the effective communication distance, the module is specially developed and modified. This module is also specially developed and customized by a domestic unit and has been used in batches.

CC1101 in the main improvement part of CC1100

Improve spurious response;

Better phase noise better improves adjacent channel power (ACP) performance;

The saturation level input is higher;

Higher performance power output

Expansion of the continuous frequency band,

CC1100: 400-464 MHz and 800-928 MHz

CC1101: 387-464 MHz and 779-928 MHz

1. Peripheral circuit devices use 1% high-precision peripheral parameters.

2. Designed specifically for 1.2K low-speed baud rate, increasing the communication distance of 1101

3. It is smaller and more stable than the ordinary CC1100 module, and at a 1.2K baud rate, the distance is about 50-100 meters.
