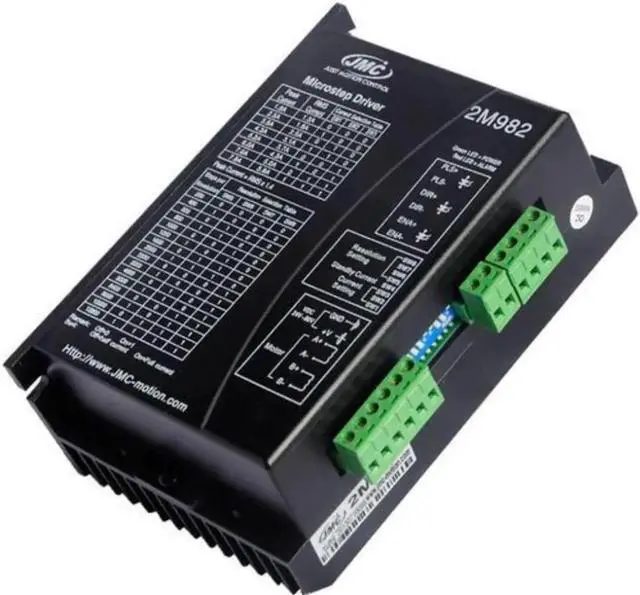

CNC 2M982 Stepper Motor Driver Drive Controller 7.8A 24 ~ 80V DC

Motor Type:DC Motor

Certification:CE

Origin:CN(Origin)

Power Supply:DC

Model Number:2M982

Model:

2M982

Name:

2M982 2 phase step motor driver

Details:

Introduction

2M982 is a cost effective high perfomance bi-polar two phase micro-stepping drive applying pure-sinusoidal current control

technique ,It is best suited for the applications that desired extreme low noise and heat,It operates well in an encironment ,

where electricity supply experience instability and fluctuation

Key Features:

1.24 to 80VDC supply Voltage

2.H-Bridge ,2 Phase Bi-polar Micro-stepping Drive

3.Suitable for 2-phase ,4,6and8 leads step motors.with Nema size23 to 34

4.Output current selectable from 1.8~7.8A peak

5.Current reduction by 50% automatically,when motor standstill mode is enabled

6.Maximum steps for 12800 steps

7Over Voltage ,Coil to Coil and Coil to Ground short dircuit protection

Specifications

Cooling

Natural Cooling or Forced Convection

Current Setting
