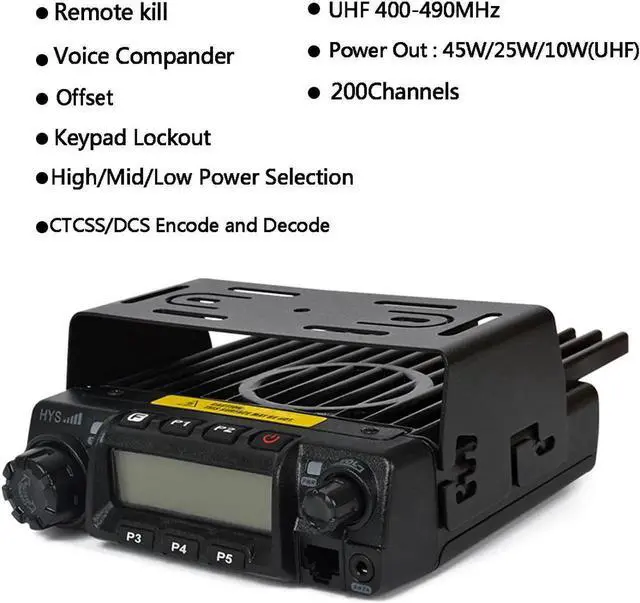

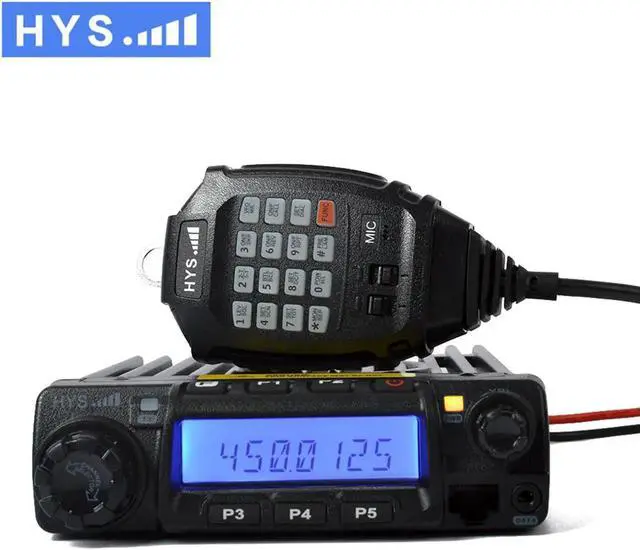

Car Two-Way Radio Station 200CH 45W High Power UHF Mobile Radio Car Radio Ham Mobile Radio Transceiver Radio Scanner
- Frequency Range:UHF 400-490MHz;Power Out : 45W/25W/10W(UHF)'Operating Voltage: 13.8V DC ±15%;Dimensions(W*H*D):145*47*190mm
- Product main functions::CTCSS/DCS Encode and Decode,50 groups CTCSS Tone Frequency,1024 groups DCS Code;Offset;Busy Channel Lockout;Reverse TX/RX;Scrambler Setup;Voice Prompt;200Channels.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
Frequency Range:UHF 400-490MHz
Channel Spacing: 25K(Wide Band)
20K(Middle Band)
12.5(Narrow Band)
Phase-locked Step: 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz
Operating Voltage: 13.8V DC ±15%
Squelch: Carrier/CTCSS/DCS /5Tone/2Tone/DTMF
Frequency Stability: ±2.5ppm
Operating Temperature: -20~+60?
Dimensions(W*H*D):145*47*190mm
Weight: About 1.2kg
Power Out : 45W/25W/10W(UHF)
Functions:
Squelch level Setup
Frequency/Channel Scan
CTCSS/DCS Encode and Decode
CTCSS/DCS Scan
Voice Compander
Offset
Keypad Lockout
Current Voltage Enquiry
Auto-dialer Setup
Sending DTMF call
Signaling Combination Setup
High/Mid/Low Power Selection
Band-width Selection
Busy Channel Lockout
Reverse TX/RX
Talk around
Scrambler Setup
Voice Prompt
TOT(Time-out timer)
APO(Auto power off)
Squelch level Setup
LCD Backlight
Pilot Frequency
Power On Password Setup
Factory Default
50 groups CTCSS Tone Frequency,1024 groups DCS Code
200Channels

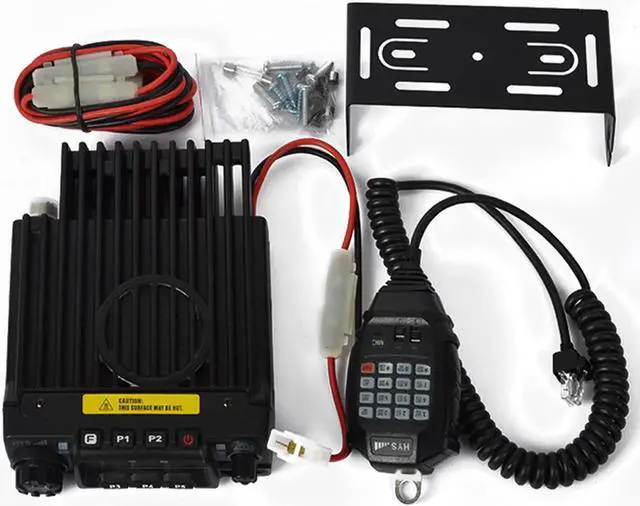

Packing include:
1PC Mobile Radio

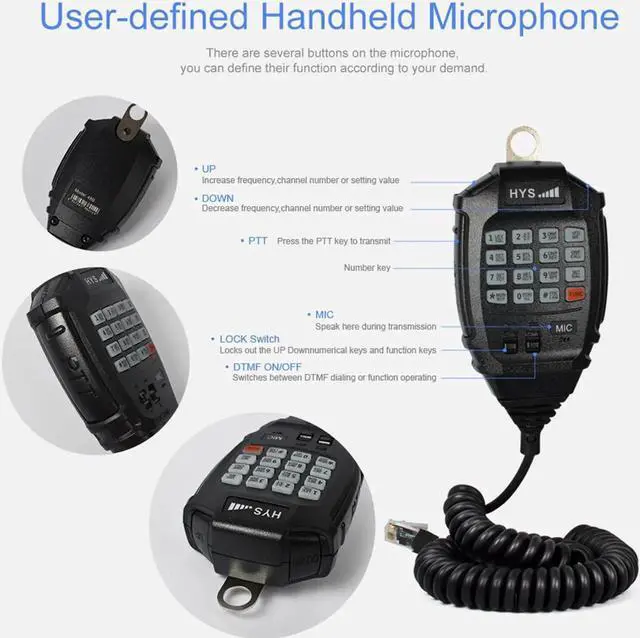

1PC Speaker Microphone
1PC Mounting Bracket
1PC DC Power Cord
1PC Hardware Kit for bracket
1PC User Manual
