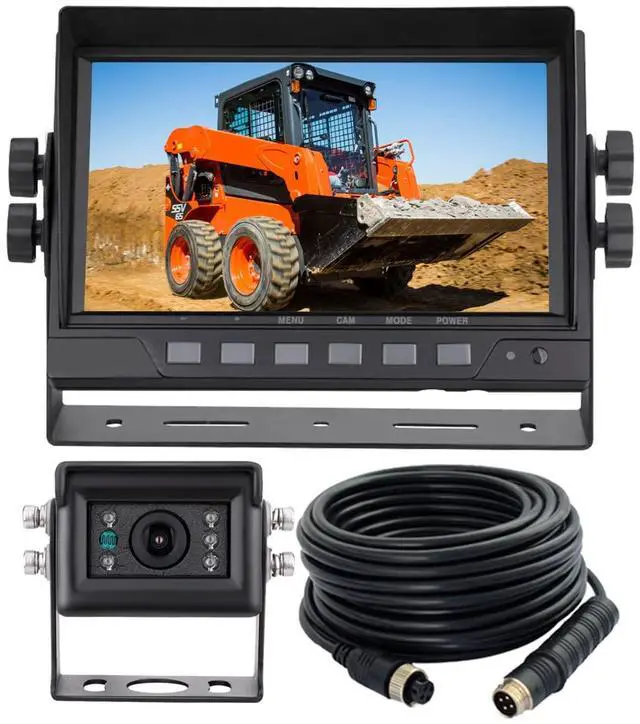

7" 1080P AHD Wired Reverse Rear View Backup Camera System,Guide line,IP69K No Water Leakage Camera, Night Vision, Vibration-Proof 10G for Tractor/Truck/Excavator/Caravan/Skid Steer/Heavy Equipment

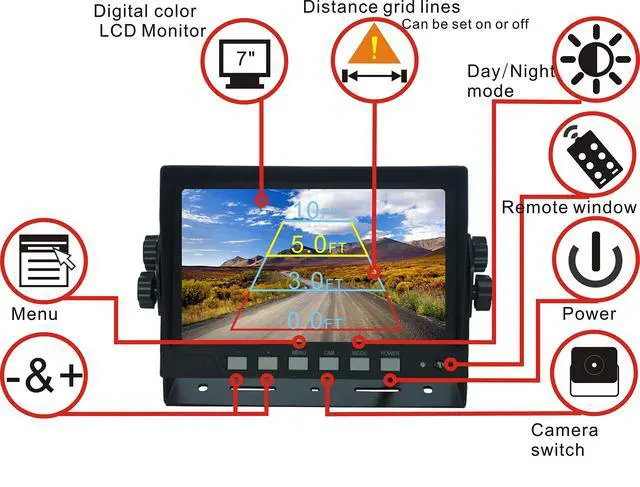

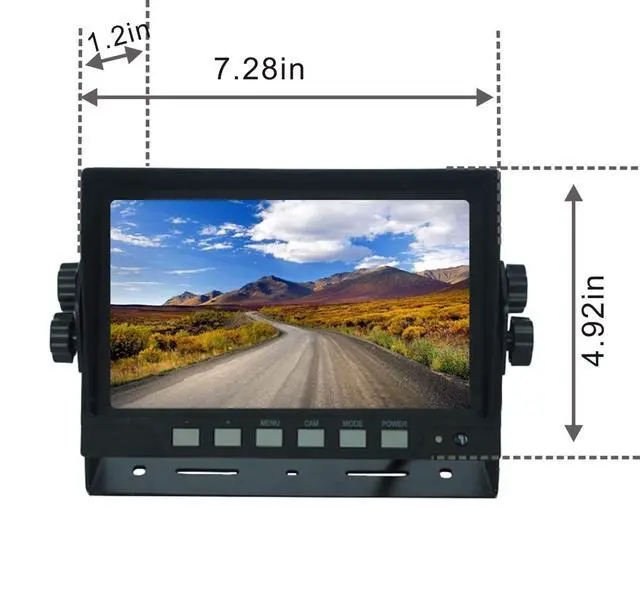

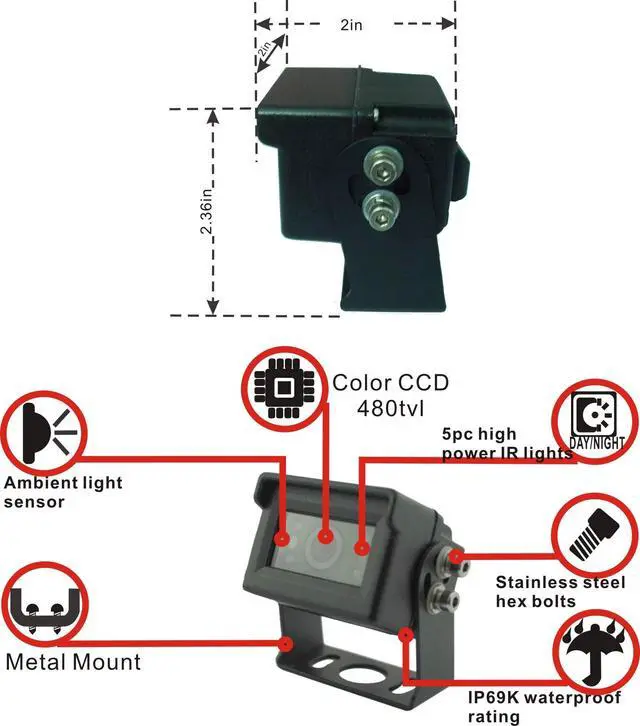

This is an enhanced industrial-grade AHD 1080P wired single-camera system. With its high vibration resistance of 10G and broad power input range of DC12-24V, it is appropriate for large vehicles, including buses, box trucks, pickup trucks, garbage trucks, flatbed trucks, dump trucks, street sweeper trucks, refrigerator trucks, motor homes, vans, skid steers, farm tractors, combines, cotton pickers, crop sprayers, bulldozers, snow plows, forklifts, excavators, and heavy equipment. The 7-inch color monitor features a U-type metal bracket and 1080P resolution. It is not waterproof. It works with most vehicles having a free power input range of DC12-24V and supports a maximum of 2 cameras. A built-in TVS and ESD device safeguards the monitor from damage caused by transient high vehicle power and electrostatic discharge up to 8kV. This monitor supplies only the camera in use with DC12V, conserving energy. It is compatible with PAL, NTSC, and AUTO formats. This is a color camera with 1080P resolution, delivering super clear and realistic color images. The viewing angle is 120 degrees. Featuring a waterproof rating of IP69K (the highest level) and night vision, it performs excellently in all weather conditions. With a heavy-duty, 10G vibration-proof rating, it operates reliably with vehicles experiencing intensive vibration in extreme environments. Unique Features: 1. The monitor offers three selectable modes via the menu to brighten the screen during daytime and dim it at night, minimizing glare. 2. The monitor includes a built-in protector to prevent damage from reversed power polarities. 3. It incorporates an innovative built-in system that retains previous option settings even after being powered off. 4. The camera's image can be configured to mirror, non-mirror, or upside-down via the OSD menu. 5. The distance grid line can be toggled on/off and adjusted through the OSD menu. Additional Features: 1. The monitor has 2 trigger wires. It automatically turns on and displays the camera image when reversing. After reversing, the monitor returns to the previous mode. 2. This system provides two viewing options: view only when reversing or remain on continuously. 3. It utilizes waterproof Aviation 4-pin screw connectors, not BNC/RCA connectors. 4. Installation is straightforward. FAQs: 1. Why don't the buttons work? --- Disconnect the trigger wire, and they will function. The trigger wire needs to be connected to the power of the rear lamp. 2. Remote doesn't work. --- The remote does not include a battery, as batteries are prohibited for shipping
