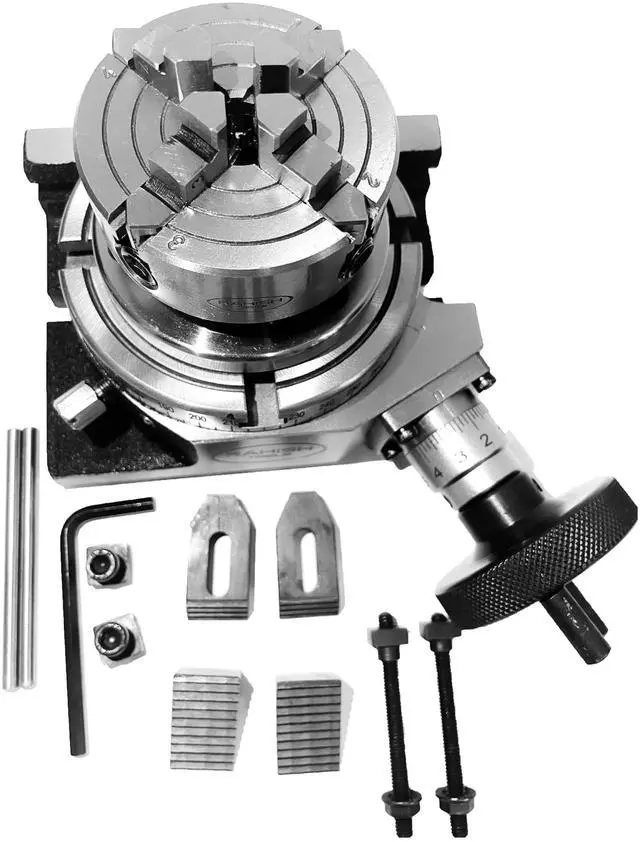

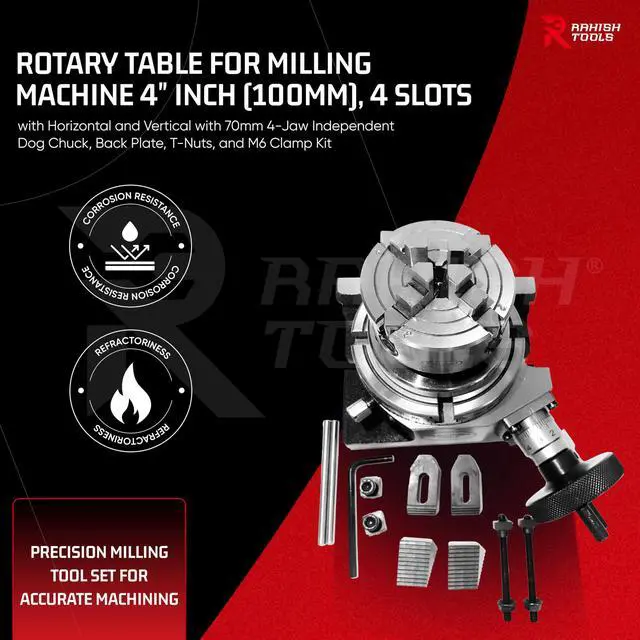

Rotary Table for Milling Machines 4" Inches (100mm) 4 Slots Horizontal and Vertical with 70mm 4 Jaw Independent Dog Chuck with Back Plate and T-nuts with m6 clamp kit

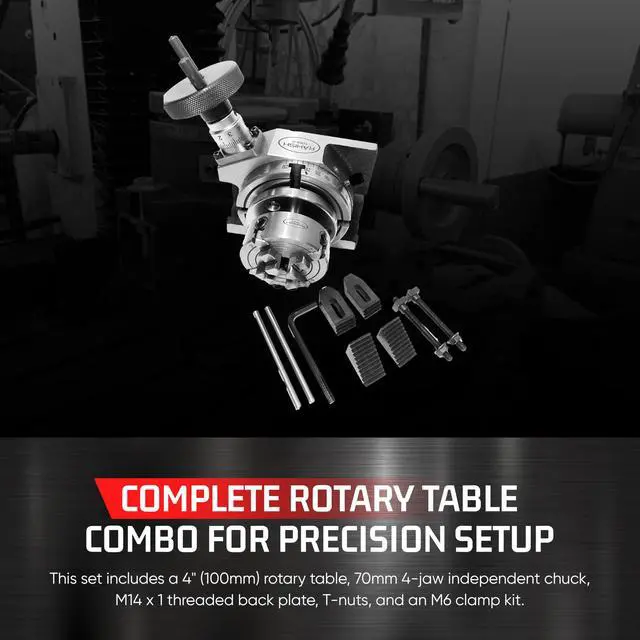

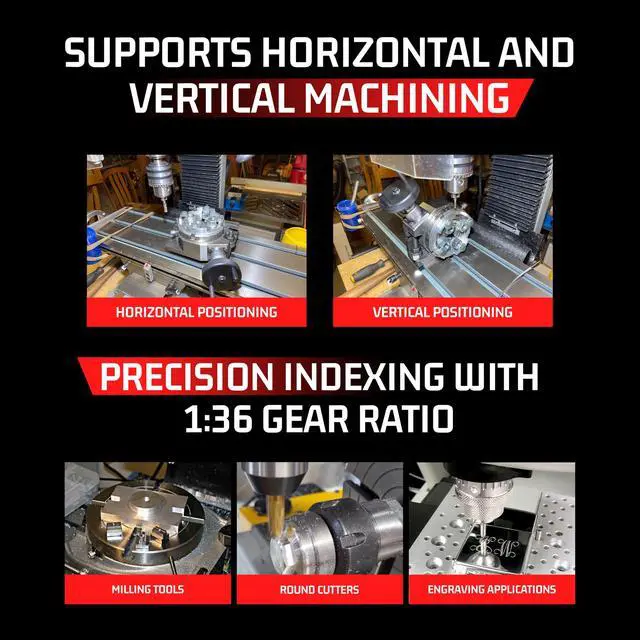

An excellent combination of a 4"/100 mm rotary table with a 70 mm 4-jaw independent chuck, complete with back plates, T-nuts, and an M6 clamp kit. An ideal milling setup for smaller mills. A high-precision, quality-crafted low-profile rotary table. Center height in vertical position: 2-1/16" (approximately 50 mm). The hand wheel is graduated in divisions of 10 minutes and can be set to zero. Can be installed in both horizontal and vertical orientations. The table is graduated 360 degrees. Worm gear ratio is 1:36, meaning one handle rotation turns the table by 10 degrees. The 70 mm 4-jaw independent chuck features an M14 x 1 mounting thread. The back plate also has an M14 x 1 thread spigot for mounting the chuck. The back plate is drilled so it can be fitted ONLY to a 4 Slot Rotary Table. Appropriate T-nuts are also provided. The M6 clamp kit suits a 3-inch rotary table. This set contains: 2 x step blocks, 2 x tee bolts with flanged nut, 2 x clamps. Bolt length: 55 mm overall, with M6 thread
