Rotary Table for Milling Machines 4, Horizontal & Vertical, 4-Slot, with 65mm Front Load 3 Jaw Self-Centering Chuck, Back Plates, T-Nuts and M6 Clamp Kit

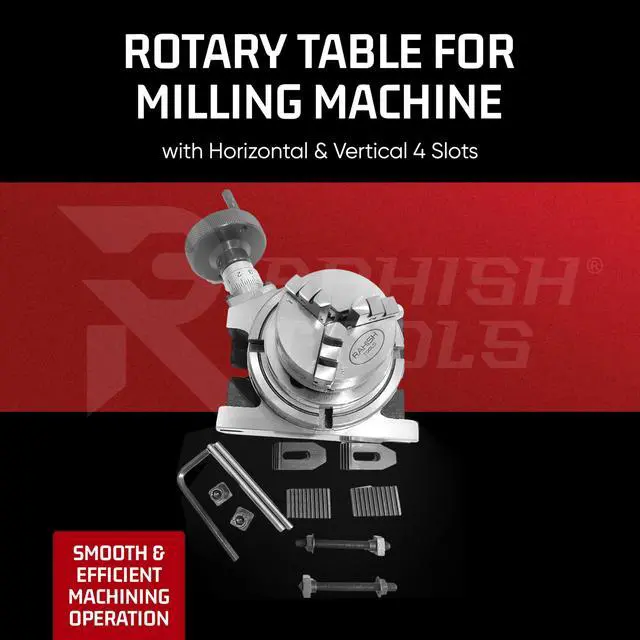

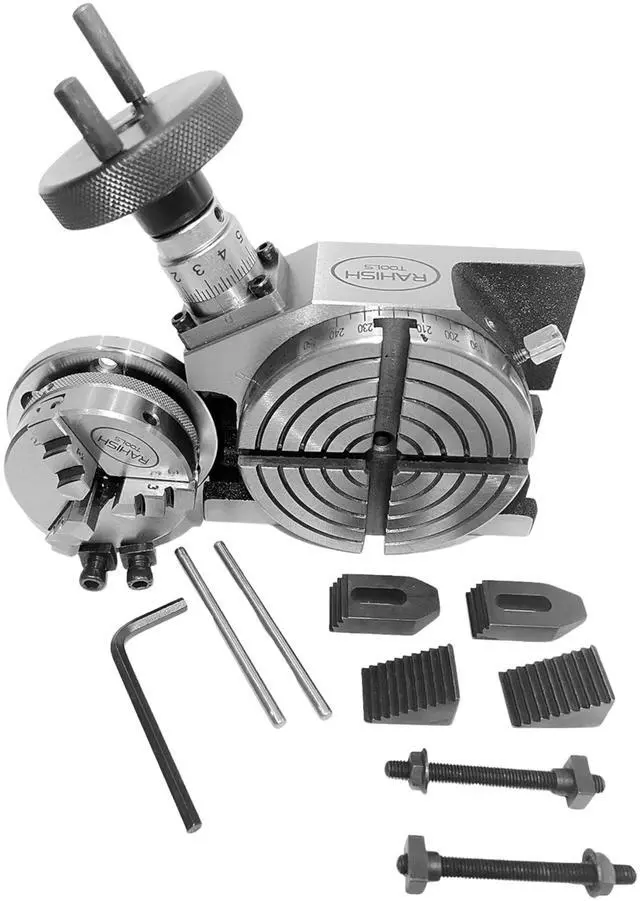

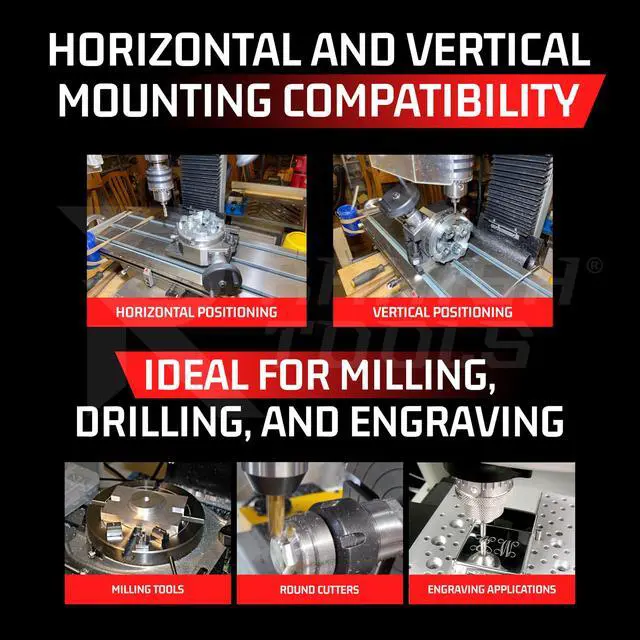

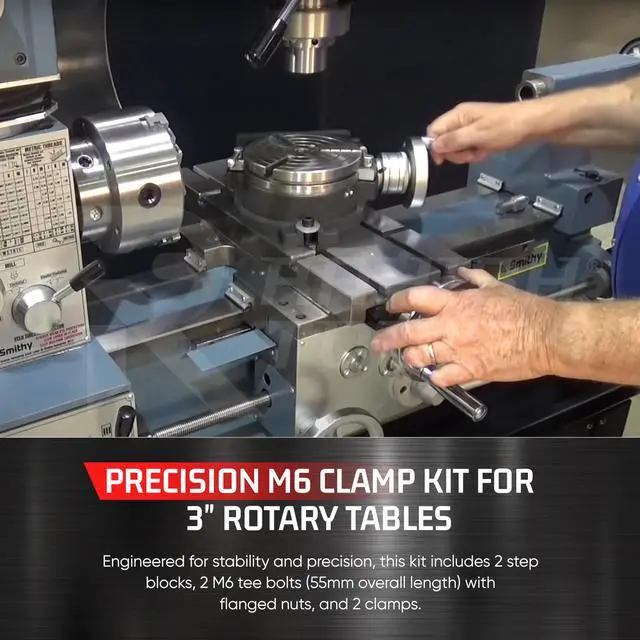

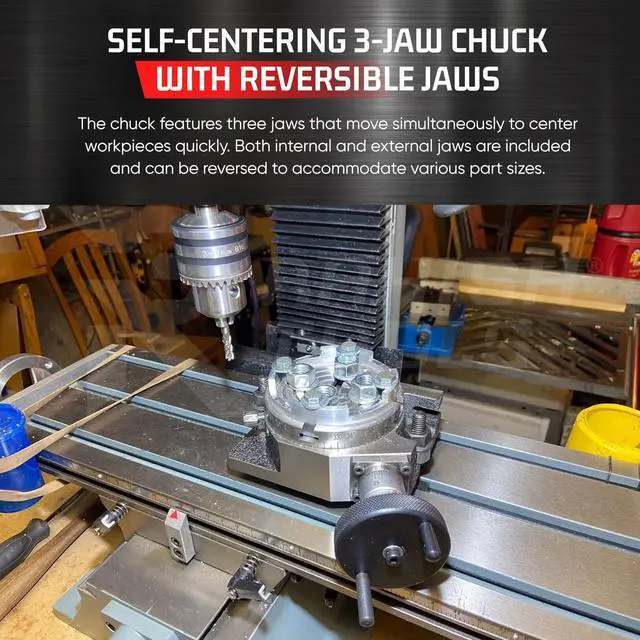

Complete rotary table setup for small mills. This kit contains a 100mm (4") rotary table with four T-slots, a 100mm self-centering 3-jaw chuck, an M14 x 1 back plate, an M6 clamp kit, and T-nuts. Designed for precise part positioning and rotary machining, it offers a compact and versatile solution for small to medium milling machines. All components are constructed for accurate alignment and stable work holding. Horizontal and vertical mounting compatibility: The rotary table accommodates both horizontal and vertical orientations, providing flexibility for multi-axis machining. In the vertical setup, the center height is about 50mm (2-1/16"), which suits compact bench-top mills or limited-space machine environments. This enables operations like slotting, indexing, and angled hole drilling. Worm gear with 10-minute graduated handwheel: The rotary table employs a 1:36 worm gear system, enabling 10° of table rotation per full handwheel turn. The handwheel is precisely graduated in 10-minute (1/6°) divisions and can be reset to zero. This facilitates accurate and repeatable angular positioning across the full 360° table scale, perfect for layout marking, drilling, or segment machining. Self-centering 3-jaw chuck with reversible jaws: The chuck has three jaws that move together to center workpieces swiftly. Both internal and external jaws are provided and can be reversed to handle various part sizes. The front-mount design permits easy installation onto the rotary table via a pre-drilled back plate and 65mm locating recess, aiding in precise chuck alignment. Precision M6 clamp kit for 3" rotary tables: Built for stability and accuracy, this kit includes 2 step blocks, 2 M6 tee bolts (55mm overall length) with flanged nuts, and 2 clamps. It is correctly sized for 3" rotary tables. Suitable for firmly holding workpieces during milling, drilling, or other machining tasks
