PCIe 4.0 x16 to PCIe x8 + 2* M.2 Mkey Splitter Card Support X8X4X4 PCIe-Bifurcation Compatible with NVMe M Key 2230 2242 2260 2280 22110 SSD (PCB Board)

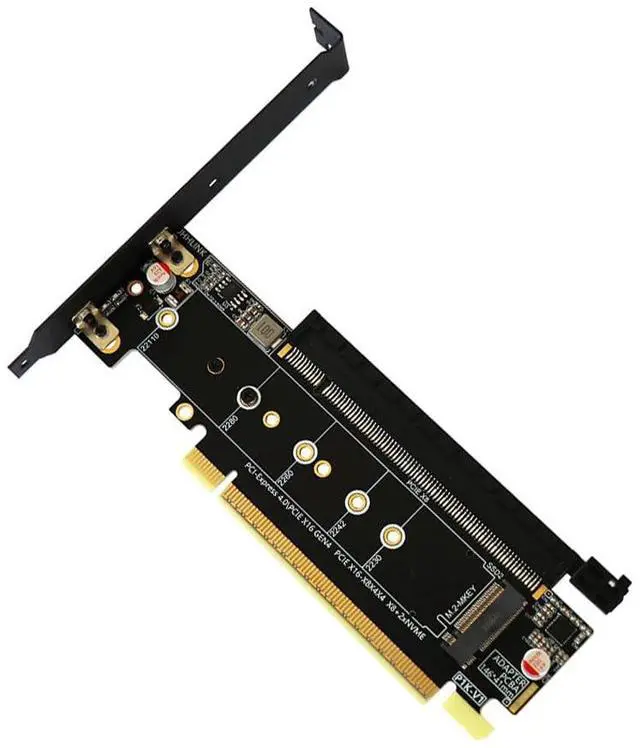

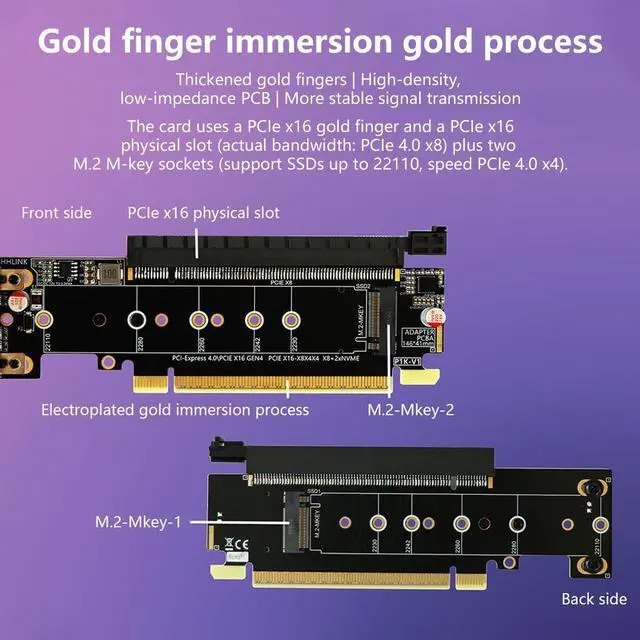

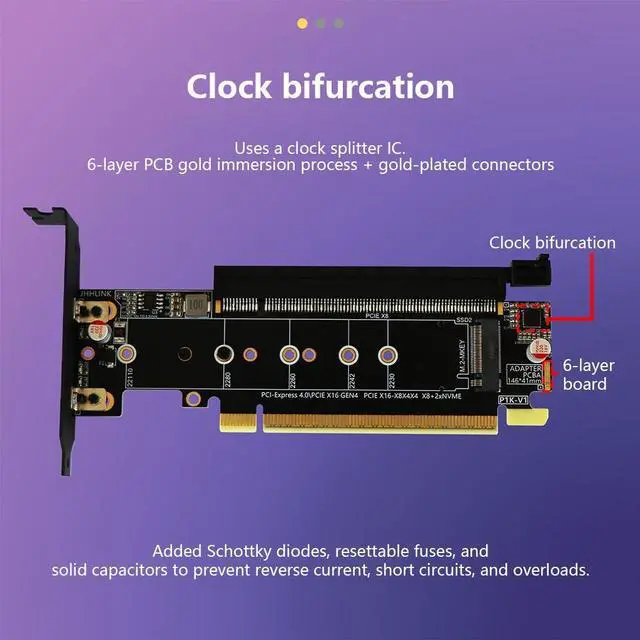

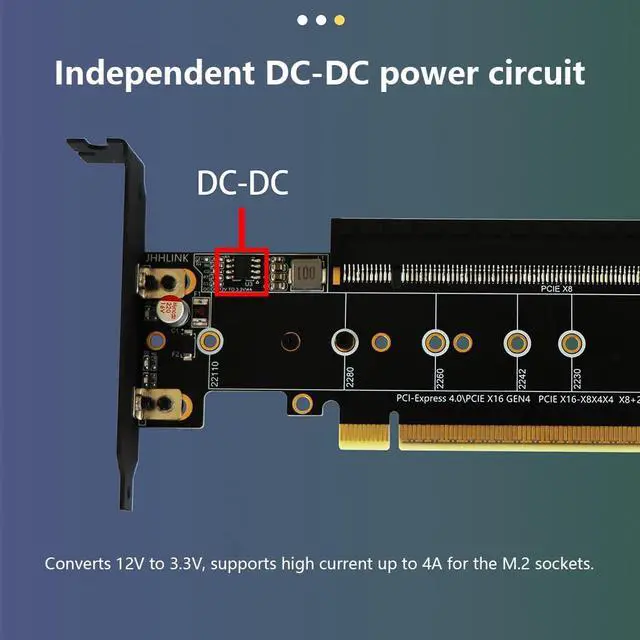

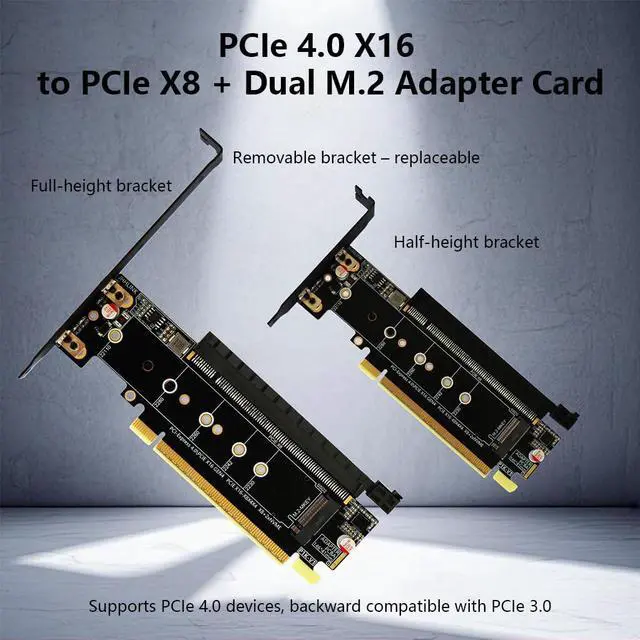

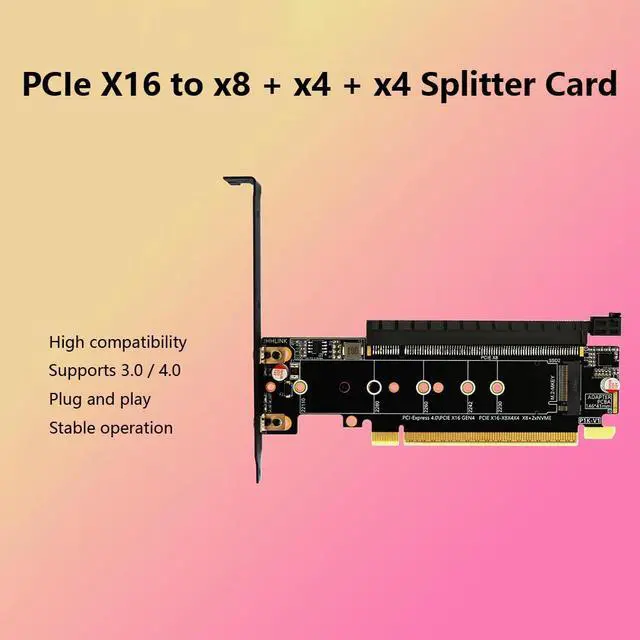

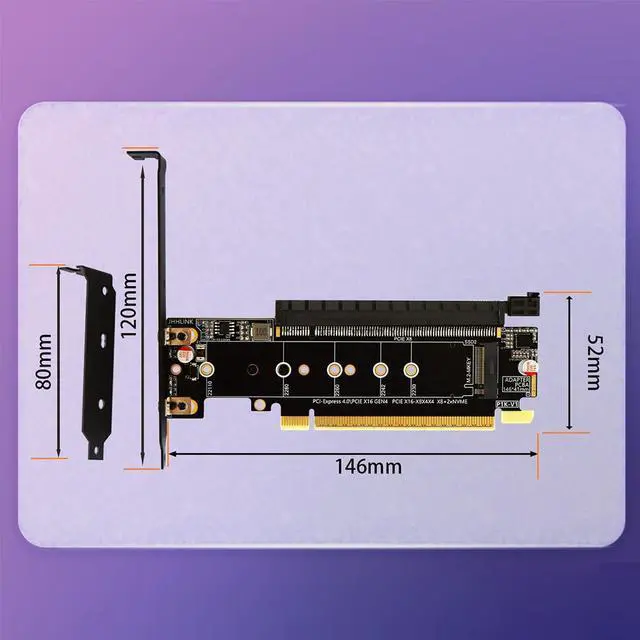

PCIe 4.0 x16 to PCIe x8 + 2* M. 2 Mkey Splitter Card Support X8X4X4 PCIe-Bifurcation Compatible with NVMe M key 2230 2242 2260 2280 22110 SSD Product Detail Solid capacitor Add solid-state capacitors to prevent overload Self healing fuse Add self-healing fuses to prevent short circuits DC-DC step-down IC Using an independent DC-DC power supply circuit, 12V is stepped down to 3.3V, supporting high current 4A, and provided to M. 2 socket PCle X16 socket (PCle X8 4.0 speed) Using PCIE X16 Gold Finger and PCIE X16 physical socket (actual bandwidth is PCIE X8) Clock splitting IC Adopting 6-layer gold plating process and gold-plated connectors, using clock split IC M.

2-SSD hard drive socket (PCIEX4 4.0 speed) M. 2-Mkey socket (supports up to 22110 SSD specifications) Schottky diode Add Schottky diode to prevent power backflow Split

Details

: 1. This adapter requires the motherboard BlOS to support X8x4X4 split settings. If the motherboard does not support settings, only PCIeX8 can work 2. lf the motherboard only supports X8X8 settings, only PCle X8 and SSD1 on the back can work 3. If the motherboard only supports X4X4X4X4 settings, the PCIEX8 will operate in PCIE mode X4, and both SSD1 and SSD2 can operate. 4. The maximum working speed of this adapter card is PCIE 4.0, supporting PCIE 4.0 /PCIE 3.0 graphics cards, network cards, and solid-state drives. lf a PClE extension cable is used, it may cause instability or slow down to PCIE 3.0 5. This adapter card is a physical conversion, without driver or power consumption. Please power off for operation.
