BNC to Balun-Compatible Passive Twisted Pair Video Transmitter 0-300m Transmission Distance Compatible with AHD/CVI/TVI/CVBS (Video Transfer)

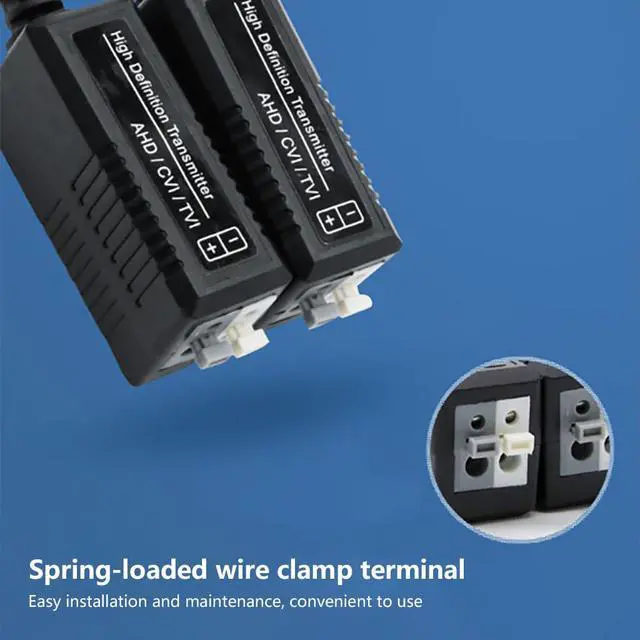

- Video Transfer Version: Anti-interference transmission. Transmits PAL, NTSC, SECAM without additional power supply. More stable video signal transmission.; Long Transmission Distance Supports video signal transmission up to 300m (0-300m) over UTP CAT5, CAT5E, or CAT6 cables, ideal for CCTV and surveillance systems.; Easy Integration Standard BNC male interface on one side, screw-less terminal block for UTP cable on the other(Video Transfer Version). Perfect for retrofitting existing coaxial systems with twisted pair cabling.; Video Transfer Version Transmission Distance:0-300m. Transmission Cable Type:UTP CAT5/5E/6. Interface Type:BNC-M. Formats: Compatible with AHD/CVI/TVI/CVBS.; Video+Power Transfer Version Transmission Distance: Video 0-300m / Power 0-150m. Transmission Cable Type:UTP CAT5/5E/6. Interface Type:BNCRJ45DC5.5*2.1. Formats: Compatible with AHD/CVI/TVI/CVBS. Input Voltage:DC12-36V.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

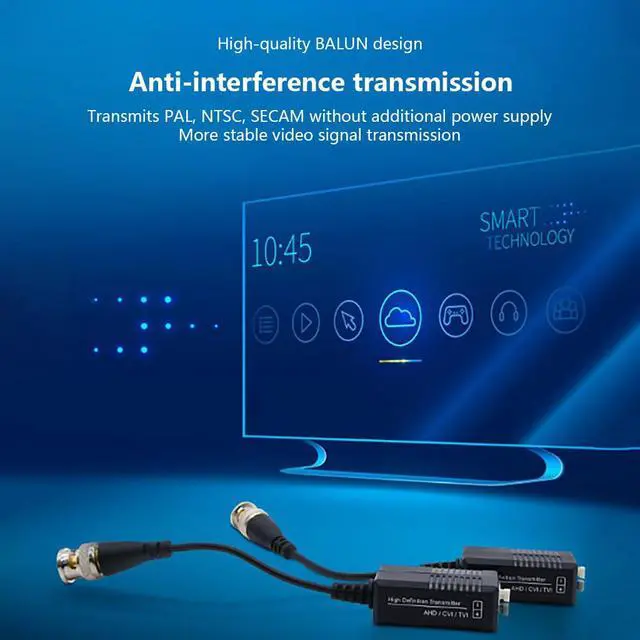

BNC to Balun-compatible Passive Twisted Pair Video Transmitter 0-300m Transmission Distance Compatible with AHD/CVI/TVI/CVBS Video Transfer High-quality BALUN design, Anti-interference transmission, Transmits PAL, NTSC, SECAM without additional power supply More stable video signal transmission

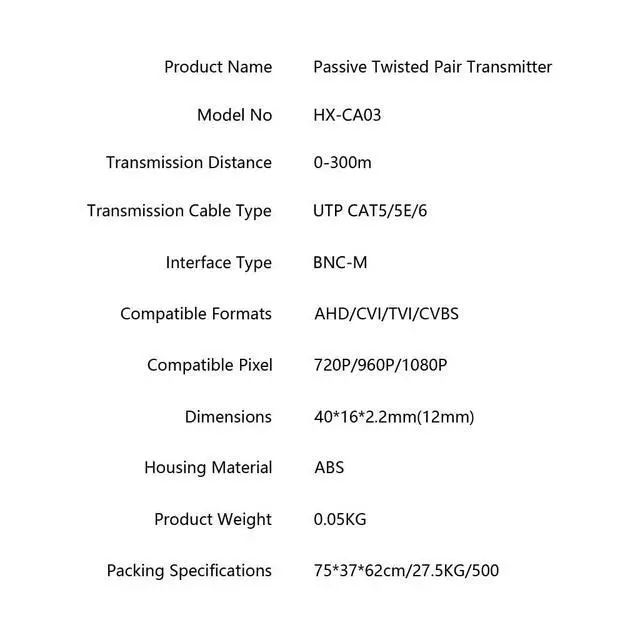

Product Name: Passive Twisted Pair Transmitter
Model No: HX-CA03
Transmission Distance: 0-300m Transmission
Cable Type: UTP CAT5/5E/6
Interface Type: BNC-M
Compatible Formats: AHD/CVI/TVI/CVBS
Compatible Pixel: 720P/960P/1080P
Dimensions: 40*16* 2.2 mm (12mm)
Housing Material: ABS
Product Weight: 0.05KG Video+Power Transfer Video power 2-in-1 Transmitter Real-time transmission of clear video signals, high image quality Compatible with AHD/ CVI/ TVI for efficient transmission
Product Name: 2-in-1 Transmitter
Model No: HX-H207D
Transmission Distance: Video0-300m/Power0-150m Transmission
Cable Type: UTP CAT5/5E/6
Interface Type: BNCRJ45DC 5.5 * 2.1
Compatible Formats: AHD/CVI/TVI/CVBS
Compatible Pixel: 720P/960P/1080P
Input Voltage: DC12-36V
Dimensions: 6.5 * 3.2 * 2.5 cm (12cm)
Housing Material: ABS
Operating Temperature: -10°C~60°C
Product Weight: 0.08KG
Product Name: Passive Twisted Pair Transmitter
Model No: HX-CA03
Transmission Distance: 0-300m Transmission
Cable Type: UTP CAT5/5E/6
Interface Type: BNC-M
Compatible Formats: AHD/CVI/TVI/CVBS
Compatible Pixel: 720P/960P/1080P
Dimensions: 40*16* 2.2 mm (12mm)
Housing Material: ABS
Product Weight: 0.05KG Video+Power Transfer Video power 2-in-1 Transmitter Real-time transmission of clear video signals, high image quality Compatible with AHD/ CVI/ TVI for efficient transmission
Product Name: 2-in-1 Transmitter
Model No: HX-H207D
Transmission Distance: Video0-300m/Power0-150m Transmission
Cable Type: UTP CAT5/5E/6
Interface Type: BNCRJ45DC 5.5 * 2.1
Compatible Formats: AHD/CVI/TVI/CVBS
Compatible Pixel: 720P/960P/1080P
Input Voltage: DC12-36V
Dimensions: 6.5 * 3.2 * 2.5 cm (12cm)
Housing Material: ABS
Operating Temperature: -10°C~60°C
Product Weight: 0.08KG
