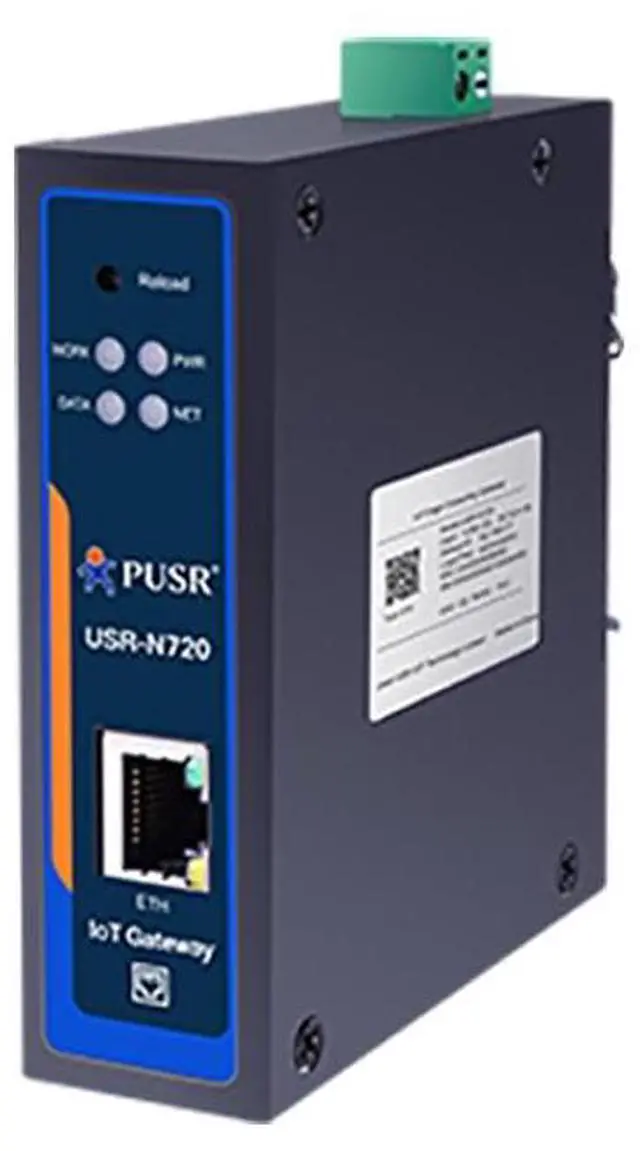

USR-N720-ETH Edge IoT Gateway 600MHz with 2* RS485 Ports + 1* RJ45 Port Supporting Edge Computing Data Acquisiton Protocol Conversion Data Reporting Compatible with TCP MQTT Protocol

USR-N720-ETH is the next generation edge IoT gateway which support edge computing, data acquisiton, protocol conversion and data reporting in json format. It comes with 2 RS485 ports and 1 RJ45 ports which can quickly establish the connection between industrial field equipment and the cloud. With these features, it can be widely used in various fields such as smart factories, smart grid, smart water service and so on.

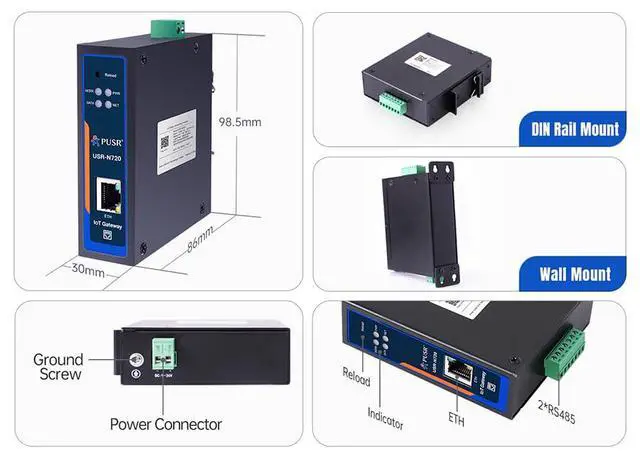

Key Features Multiple Interface: Ethernet+2*RS485
Powerful Edge Computing Capabilities: 1000 points+data acquisition+analysis
Data Encryption: Compatible with TCP+SSL, MQTT+SSL

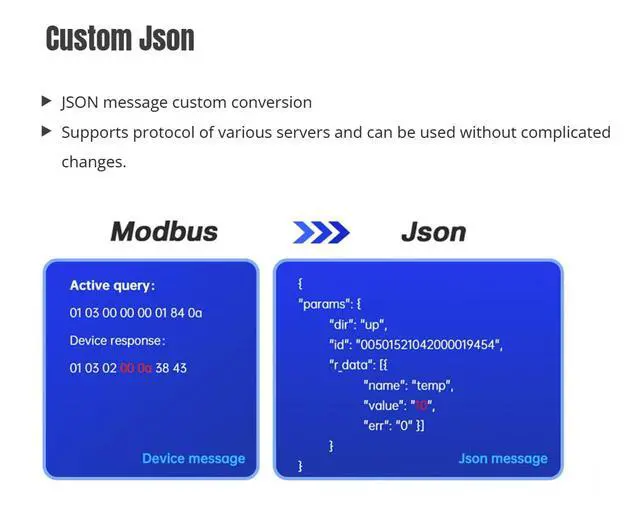

Protocol Conversion: Modbus to MQTT+Json, DL645 to MQTT+Json Rich

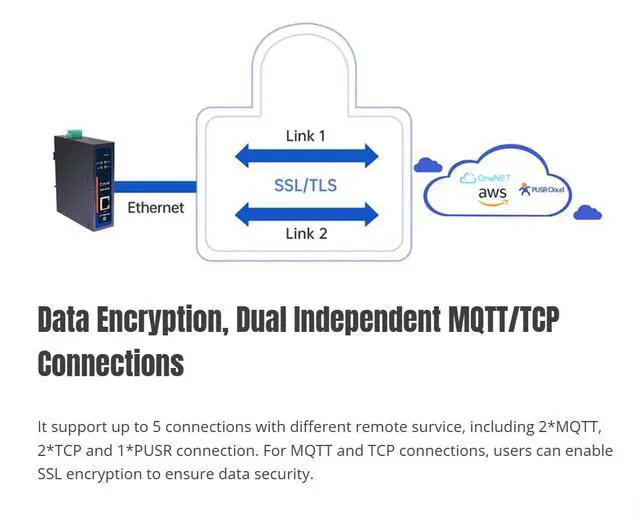

Communication Protocol: Compatible with TCP/MQTT SD Card for Data StorageTo ensure data integrity Edge Computing, Enabling Edge Device Connectivity In The IIOT Era USR-N720-ETH can collected data in Modbus RTU, Modbus TCP-compatible and DL/T645-2007 protocol and reporting data to IoT cloud in JSON format using MQTT or TCP-compatible protocol. It supports up to 1000 data points, and can decode and compute the collected data to reduce servers pressure. It support up to 5 connections with different remote survice, including 2*MQTT, 2*TCP-compatible and 1*PUSR connection. For MQTT and TCP-compatible connections, users can enable SSL encryption to ensure data security. USR-N720-ETH supports SD card for data caching, the collected data will be cached tothe SD card when the gateway is in Internet disconnection. And the cached data will be sent to server when the gateway get connection recovery. Remote Management over PUSR Cloud Users can monitor the running status, upgrade firmware, configure parameters of the N720 remotely, saving users time and cost.
