SlimSAS to SXM2 Single-Channel Direct Pass-Through Backplane PCIe3.0 X16 8GT/s with 2X 8pin GPU Power Support External V100 Graphics Card (Backplane)
- PCIe 3.0 x16 High Bandwidth: Single port SFF8654: PCIe x8 bandwidth; Dual ports SFF8654: PCIe x16 full speed . Stable signal transmission, low loss.; Dual Power Modes (DIP Switch Control): AT Mode: Auto power on/off with host computer; MT Mode: Manual power control via ON_SW. Only works with dedicated power board.; Stable Power Supply: Dual GPU 8Pin power input ensures stable power for SXM2 GPU. Must connect both 8Pin ports for normal operation.; Flexible Configuration: ARGB light control.Dual fan ports for heat dissipation.Compact layout, easy installation.; Standard Compliance Compliant with SFFTA1016 Rev1.3.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

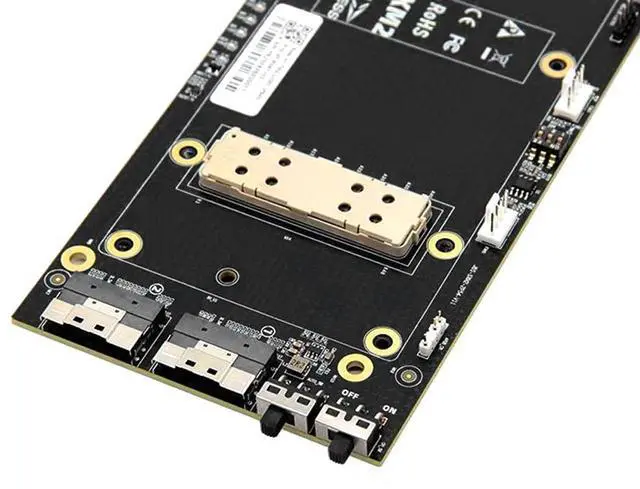

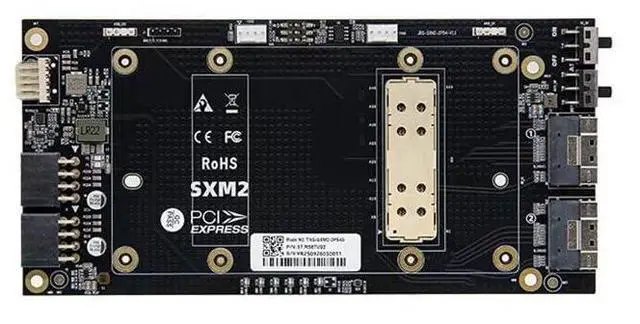

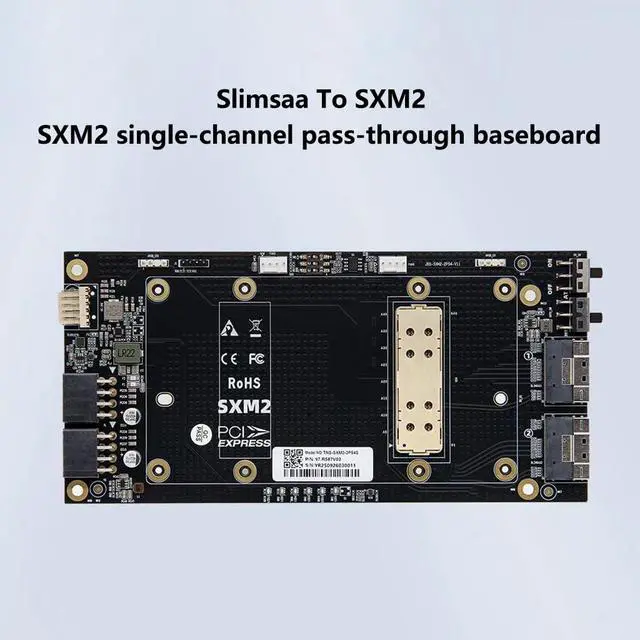

SlimSAS to SXM2 Single-Channel Direct Pass-Through Backplane PCIe 3.0 X16 8GT/s with 2x 8pin GPU Power Support External V100 Graphics Card Product Overview This SlimSAS to SXM2 direct passthrough backplane is a professional adapter for connecting SXM2 GPU via SlimSAS SFF8654 interface, with PCIe 3.0 x16 full channel. It supports dual 8Pin GPU power input, dual fan ports, ARGB light control, and auto/manual power modes. Ideal for server, mining, highperformance computing, and GPU testing platforms.
Basic
Type: SXM2 SingleChannel Direct PassThrough Backplane
GPU Support: 1× SXM2
GPU Bus: PCIe x16
PCIe Speed: PCIe 3.0 8GT/s
Protocol: SFFTA1016 Rev 1.3

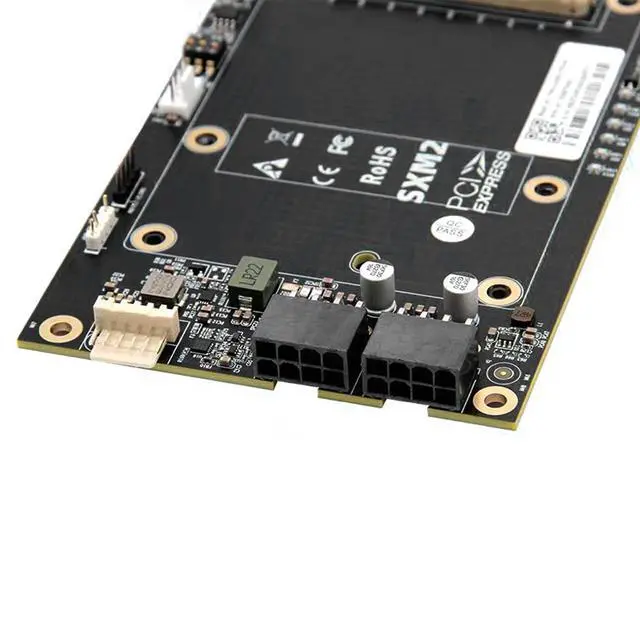

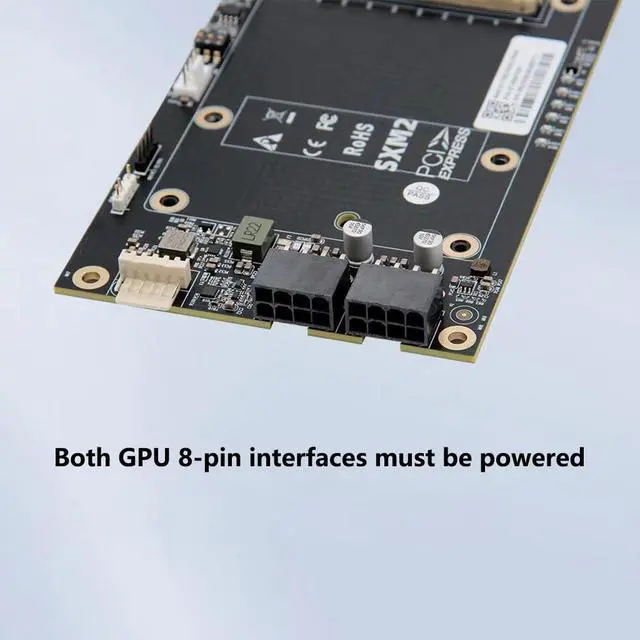

Power Input: 2× GPU 8Pin (must be powered)
Uplink Ports: 2×
SlimSAS SFF8654 Downlink Port: SXM2 PCIe x16
Fan Ports: 2× fan connectors
Light: ARGB control interface Wiring & Switch Instructions Bandwidth Setting Only Port 1 connected PCIe x8 Port 1 + Port 2 connected PCIe x16

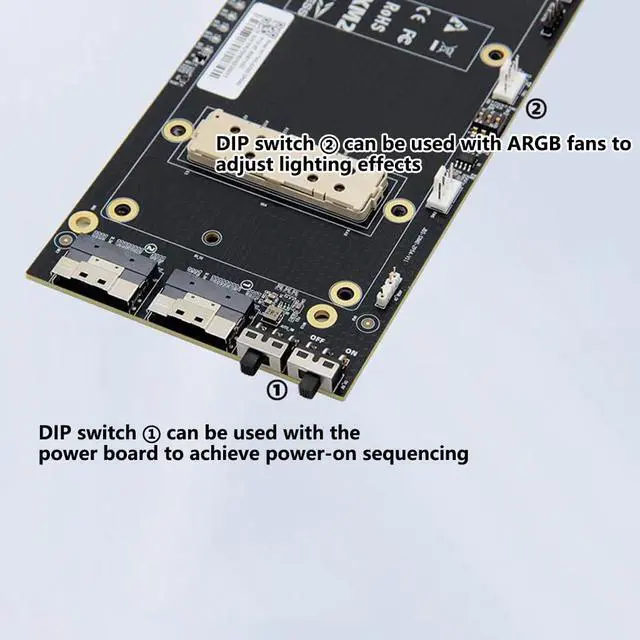

Power Mode Switch AT: Auto power sync with
PC MT: Manual control (ON_SW valid) Power Connection 2× GPU 8Pin must be connected Can match with dedicated power board Notes This is a passthrough adapter board, not builtin voltage regulation Must use dedicated power board for full function Please connect ports and power in correct order Suitable for industrial / server / testing use
Basic
Specifications
Model: TNSSXM22P54SType: SXM2 SingleChannel Direct PassThrough Backplane
GPU Support: 1× SXM2
GPU Bus: PCIe x16
PCIe Speed: PCIe 3.0 8GT/s
Protocol: SFFTA1016 Rev 1.3
Power Input: 2× GPU 8Pin (must be powered)
Uplink Ports: 2×
SlimSAS SFF8654 Downlink Port: SXM2 PCIe x16
Fan Ports: 2× fan connectors
Light: ARGB control interface Wiring & Switch Instructions Bandwidth Setting Only Port 1 connected PCIe x8 Port 1 + Port 2 connected PCIe x16
Power Mode Switch AT: Auto power sync with
PC MT: Manual control (ON_SW valid) Power Connection 2× GPU 8Pin must be connected Can match with dedicated power board Notes This is a passthrough adapter board, not builtin voltage regulation Must use dedicated power board for full function Please connect ports and power in correct order Suitable for industrial / server / testing use
