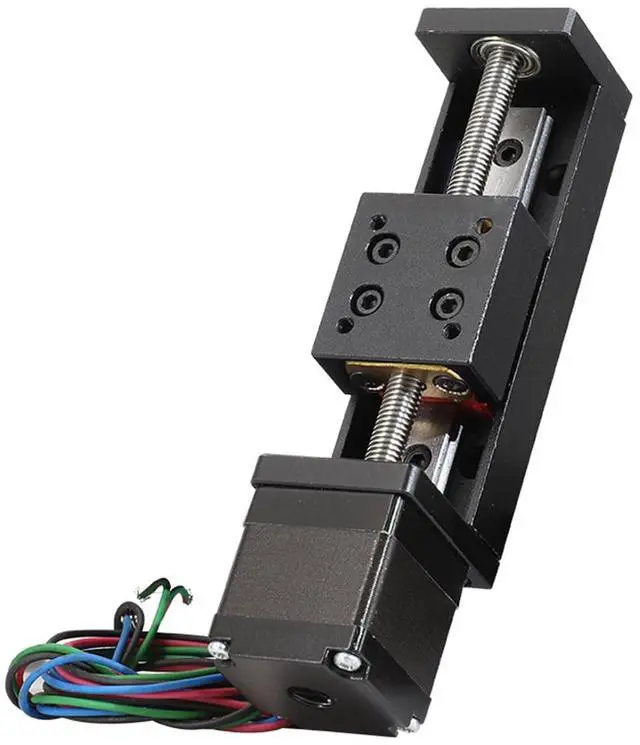

50mm Travel Mini Linear Stage Actuator, Linear Rail Slide Actuator with 28 * 30 Stepper Motor, T Screw Rod for DIY CNC Router Parts X Y Z Axis
Limited time offer, ends 08/30 By StarVelocity Technology

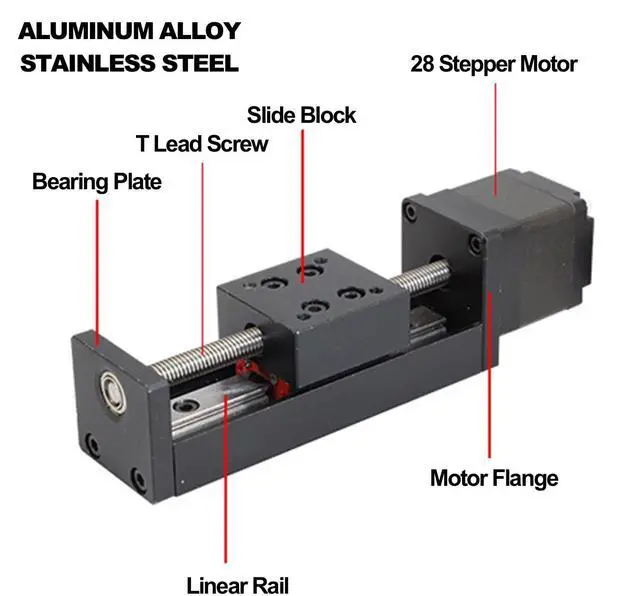

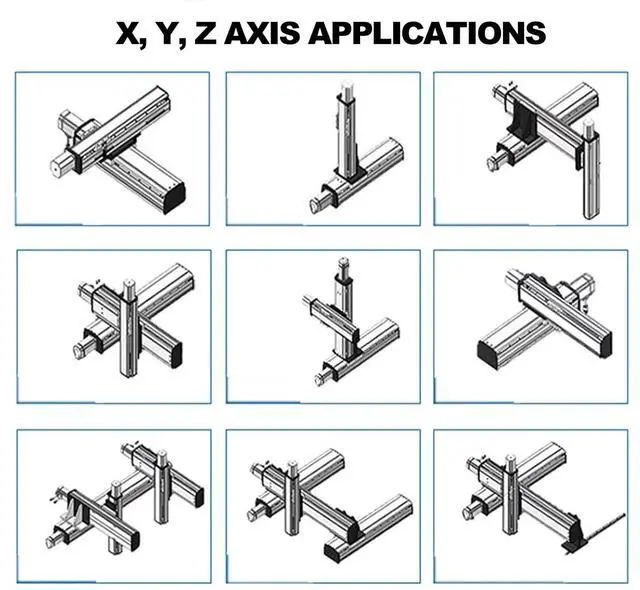

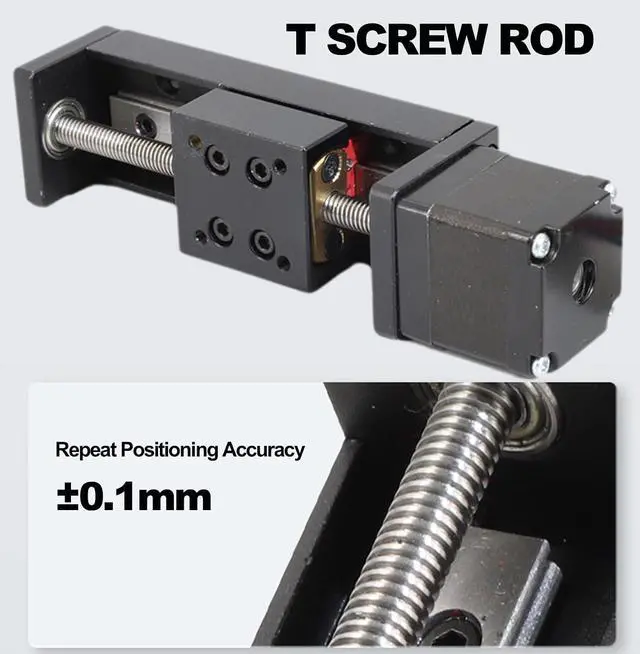

- Mini linear stage actuator provides an effective travel of 50mm or 2 inch, load capacity up to 5kg horizontally and 1kg vertically; Linear rail slide actuator features a T screw threaded rod, diameter of 6mm, lead of 1mm, repeat positioning accuracy of ±0.1mm; Linear slide table allows for speed adjustment 0-8mm, where a pulse generator is required; Linear motion table constructed with premium aluminum alloy and stainless steel, thickened plate ensuring stability during running; Mini linear slide table actuator boasts a mini size, 5-inch in length, easy to combine several together for X, Y and Z axis applications; The 28*30 stepper motor mini linear rail slide actuator is ideal for DIY CNC milling carving, 3D printing, laser engraving, automated testing equipment, optical measurement, fine tuning displacement, mechanical positioning and more; Stepper Motor's technical specification: Torque: 0.07Nm; Current: 0.6A; Motor frame: 28mm; Motor body: 30mm
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
50mm Travel Mini Linear Stage Actuator, Linear Rail Slide Actuator with 28 Stepper Motor, T Screw Rod for DIY CNC Router Parts X Y Z Axis Mini linear stage actuator provides an effective travel of 50mm or 2 inch, load capacity up to 5kg horizontally and 1kg vertically Linear rail slide actuator features a T screw threaded rod, diameter of 6mm, lead of 1mm, repeat positioning accuracy of ± 0.1 mm Linear slide table allows for speed adjustment 0-8mm, where a pulse generator is required Linear motion table constructed with premium aluminum alloy and stainless steel, thickened plate ensuring stability during running Mini linear slide table actuator boasts a mini size, 5-inch in length, easy to combine several together for X, Y and Z axis applications The 28 stepper motor mini linear rail slide actuator is ideal for DIY CNC milling carving, 3D printing, laser engraving, automated testing equipment, optical measurement, fine tuning displacement, mechanical positioning and more
SPECIFICATION Material: aluminum alloy, stainless steel

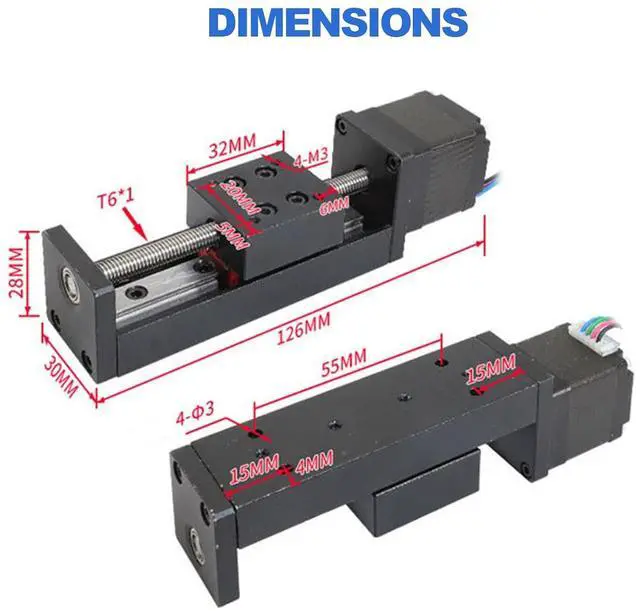

Travel Length: 50mm (2 in)

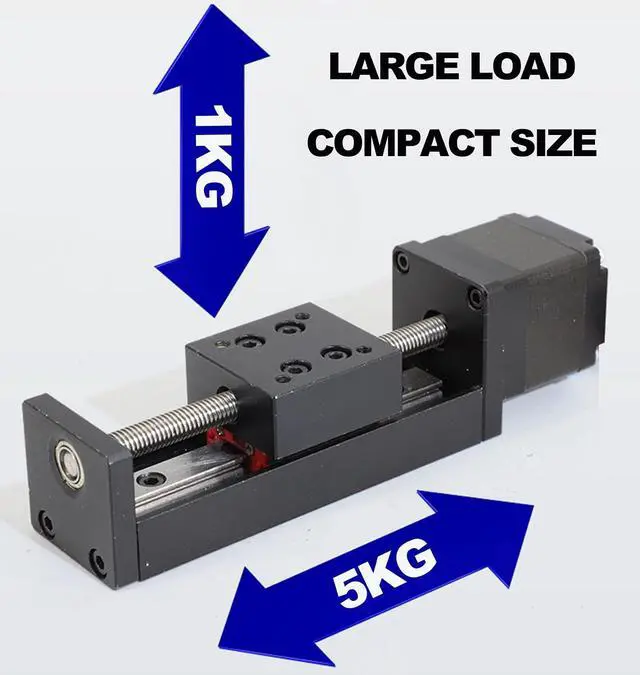

Load Capacity: horizontal 5kg; vertical 1kg
Speed: adjustable 0-8mm/s (pulse generator required)
T Screw Rod: diameter 6mm

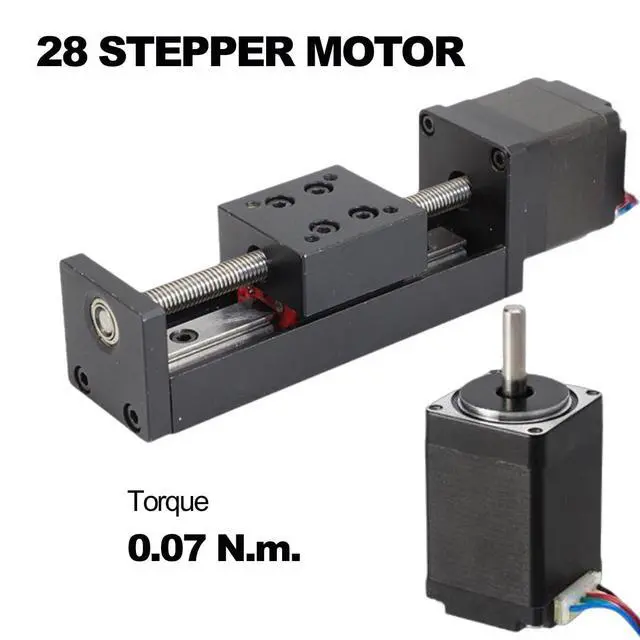

Motor Torque: 0.07 N. m.
Motor Current: 0.6A PACKAGE 1 x 50mm Stroke Mini Linear Stage Actuator with 28 Stepper Motor
SPECIFICATION Material: aluminum alloy, stainless steel
Travel Length: 50mm (2 in)
Load Capacity: horizontal 5kg; vertical 1kg
Speed: adjustable 0-8mm/s (pulse generator required)
T Screw Rod: diameter 6mm
Motor Torque: 0.07 N. m.
Motor Current: 0.6A PACKAGE 1 x 50mm Stroke Mini Linear Stage Actuator with 28 Stepper Motor
