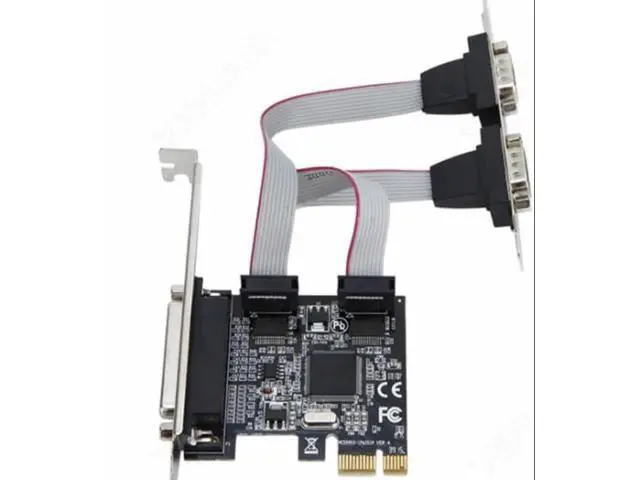

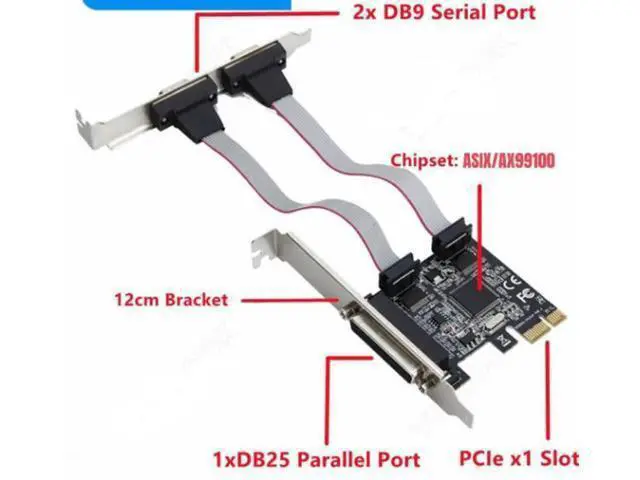

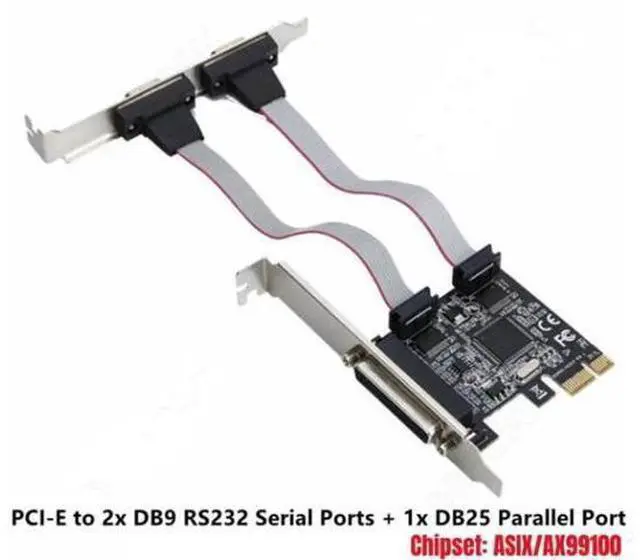

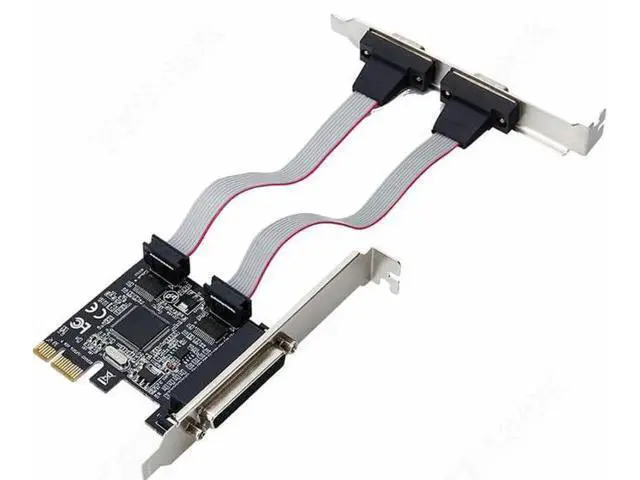

PCIe to 2x DB9 RS232 COM Serial Port+ 1x DB25 Parallel Port Printer LPT Adapter Card Chipset ASIX/AX99100 for Desktop Computer

PCIe to 2x DB9 RS232 COM Serial Port+ 1x DB25 Parallel Port Printer LPT Adapter Card Chipset ASIX/AX9900 for
Desktop Computer Description: Model
number: TXB070
Chipset: ASIX/MCS
AX99100 Port number: 2* Serial port, 1*Parallel port
Interface: PCI Express 1x slot
Dimension: 65.4 *60*14mm Support OS Windows*10 (3264), 8/ 8.1 (3264), 7 (3264), Vista (3264), XP (3264), 2000 Windows Server 2012, 2008 R2, 2003 (3264) Mac OS°10. x(Intel based, tested up to 10.9 ) Linux 2.4. x and later(Tested up to 3.5 )
Environment Operating Temperature: 0-50
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0-80
Relative Humidity: 5%-90%(non-condensing) Features
Serial Port: Supports RS232, RS485 & RS422 modes Bi-directional speeds from 50 bps to 16 Mbps/Port Full Serial modem control Supports Hardware, Software flow control 5, 6, 7, 8 and 9-bit Serial format support Even, Odd, None, space & Mark parity supported Custom BAUD Rates supported with external clock or by programming internal PLL On Chip 256 Byte depth FIF Os in Transmit, Receive path of each Serial Port Supports remote wake up and power management features Serial Port transceiver shutdown support Supports Slow IrDA on all Serial Ports IEEE1284
Parallel Port: IEEE 1284 compliant parallel port interface, supporting SPP/PS2/EP/ECP modes and centronics interface Faster data rates up to 1.5M bps for parallel port
More Features: · Single-lane (X1) PCI Express End-point Controller with integrated PHY · Compliant with PCI Express Base Specification, Revision 1.1 · Compliant with PCI Express card specifications · Supports four PCI Express functions · Supports auto completion of configuration requests · Supports built in flow control · Supports Message TLP (Error) generation · Supports integrated time out handling of Non-posted request · Supports both legacy and MSI Interrupt · Supports PCle Power Management Serial Port · Four 16C450/550/Extended 550/650/Enhanced Mode compatible UAR
Ts · Supports RS232, RS422 & RS485 modes · Bi-directional speeds from 50 bps to 16 Mbps per port · Full Serial Modem Control · Supports Hardware, Software Flow Control · Supports 5, 6, 7, 8 bit Serial format · Supports Even, Odd, None, Space and Mark parity · Supports Custom baud rate by programming internal PLL or external clock · Supports On Chip 256 Byte depth FIF · Os in Transmit, Receive path of each Serial Port · Supports remote wakeup and power management features · Serial Port transceiver shutdown support · Supports Slow IrDA mode (up to 115200bps) on all Serial Ports Parallel Port · Compatible with IEEE 1284 · Nibble Mode · Byte Mode · Enhanced Parallel Port (EPP 1.9 ) · FIFO mode (Buffered SPP mode)
