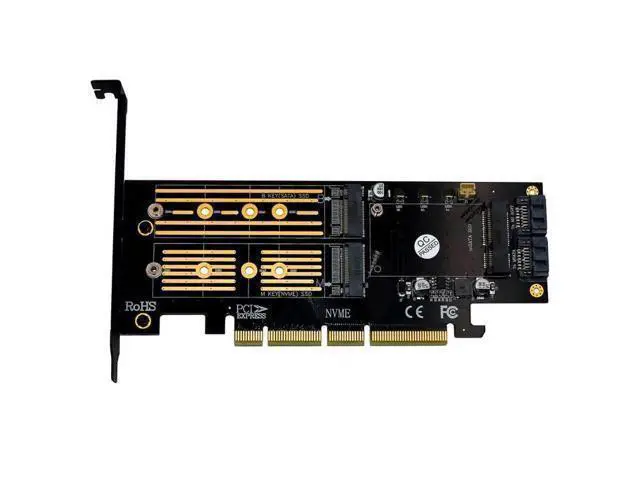

M.2 NVMe SSD NGFF mSATA to PCI-E 4X Raiser mSATA 3 in 1 PCI-E Riser Support PCIe 2.0, 3.0 and PCIe 4.0 motherboard

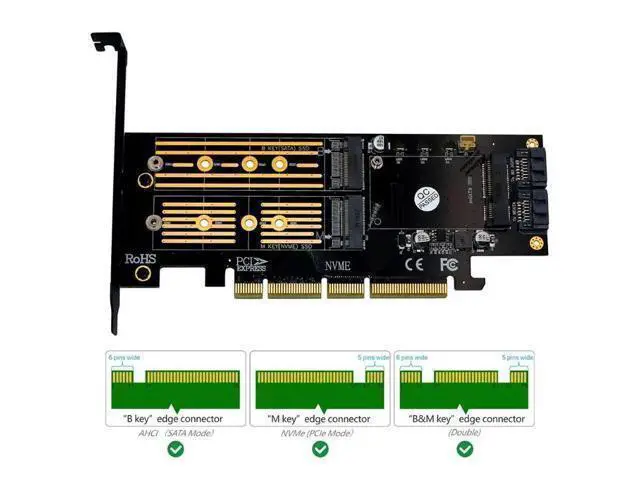

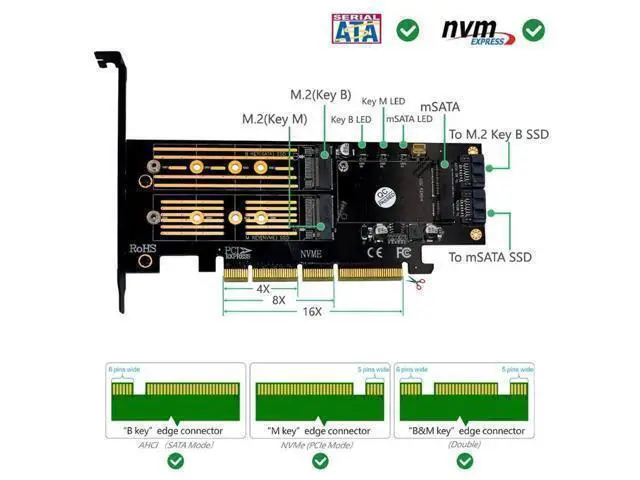

Features: 1. Supports PCIE M. 2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth, suitable for 2280/2260/2242/2230 mm. 2. Support M. 2 SSD (Key-B/B+M) based on SATA, SATA 6 Gbps bandwidth, applicable to 2280/2260/2242/2230 mm. 3. Support mSATA, 30x50mm, SATA 6 Gbps bandwidth. 4. 3 Channel SSD Read/Write LED Indicator. 5. Support PCIe 2.0, 3.0 and PCIe 4.0 motherboard. 6. Supports three SSDs (SSD based on M. 2 PCIE, SSD based on SATA and SSD based on SATA) to work simultaneously. 7. NVME M. 2 SSD to PCIE 3.0 x4 (32Gbps), no need to use SATA wire to connect to PC. 8. When using SATA M. 2 to SATA III (6Gbps) and mSATA to SATA III (6Gbps), SATA cables are needed to connect the motherboard. (The product already contains two SATA lines). 9. This adapter is compatible with PCI-E 4X, 8X, 16X, but only with PCI-E 4X.

Specifications

: Product
size: 183*120*20mm/ 7.2 * 4.72 * 0.78 ''
Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. 1 X Adapter Card 1 X 1/O Holder (High/Low Profile x1) 1 X Mini Card Extension Holder 2 X Aluminium Radiators 4 X Thermal Conductive Silicone Pads (2pcs Thin and 2pcs Thick) 4 X Silicone Rings 2 X SATA Cables 1 X Screwdriver 1 X Screw Kits
