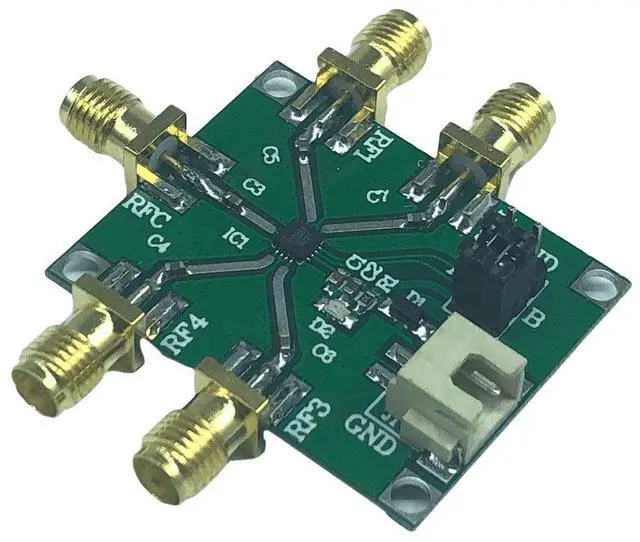

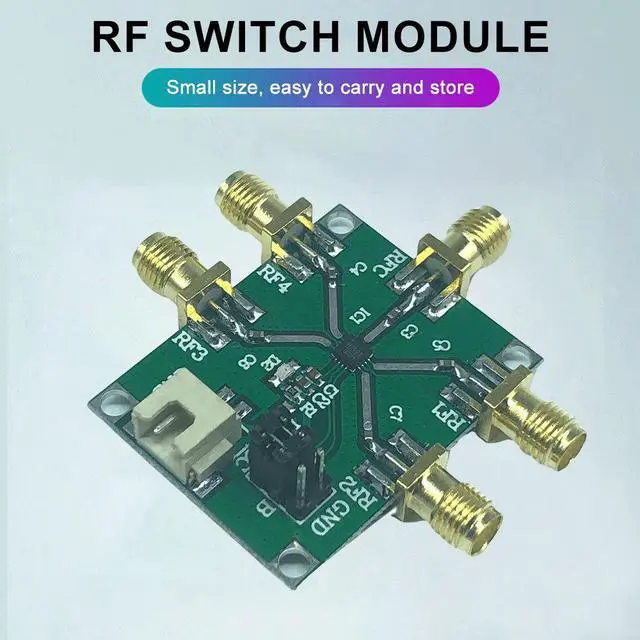

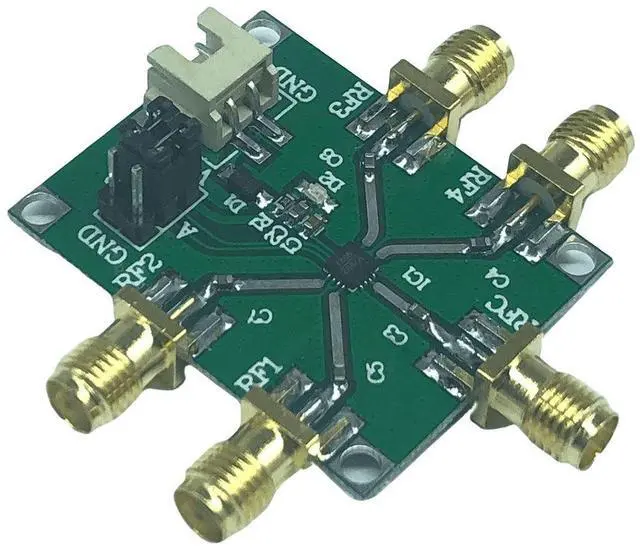

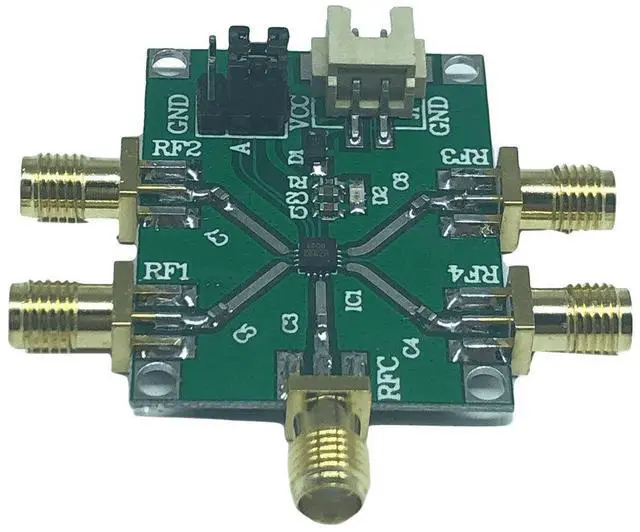

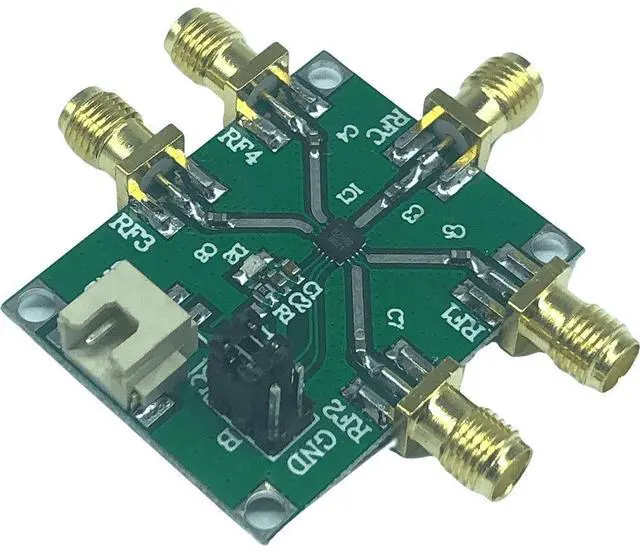

HMC7992 RF Switch Module, SP4T Single Pole Four Throw Silicon Switch, 0.1GHz-6GHz Non-Reflective Microwave Signal Switching Board
- II. Features
- Non-reflective 50 design
- High isolation: 45 dB (typical, at 2 GHz)
- Low insertion loss: 0.6 dB (at 2 GHz)
- High power handling: 33 dBm (through path), 27 dBm (terminated path)
- High linearity 1 dB compression point (P1dB): 35 dBm (typical)
- Input third-order intercept point (IIP3): 58 dBm (typical)
- III. Applications
- Base stations and portable wireless systems
- CATV / DBS
- Wireless local loop
- Test equipment
- IV. Circuit Description
- Supply voltage: 3V5V
- Frequency range: 0.16 GHz
- Control signal: Logic high/low
- Product dimensions: 30 × 38 mm
- Product weight: 10 grams
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
II. Features
- Non-reflective 50 design
- High isolation: 45 dB (typical, at 2 GHz)
- Low insertion loss: 0.6 dB (at 2 GHz)
- High power handling: 33 dBm (through path), 27 dBm (terminated path)
- High linearity 1 dB compression point (P1dB): 35 dBm (typical)
- Input third-order intercept point (IIP3): 58 dBm (typical)
III. Applications
- Base stations and portable wireless systems
- CATV / DBS
- Wireless local loop
- Test equipment
IV. Circuit Description
- Supply voltage: 3V5V
- Frequency range: 0.16 GHz
- Control signal: Logic high/low
- Product dimensions: 30 × 38 mm
- Product weight: 10 grams
