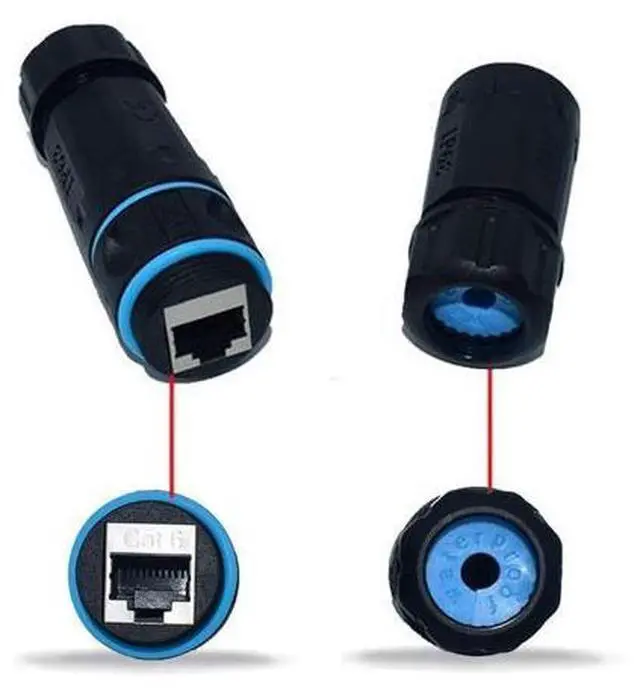

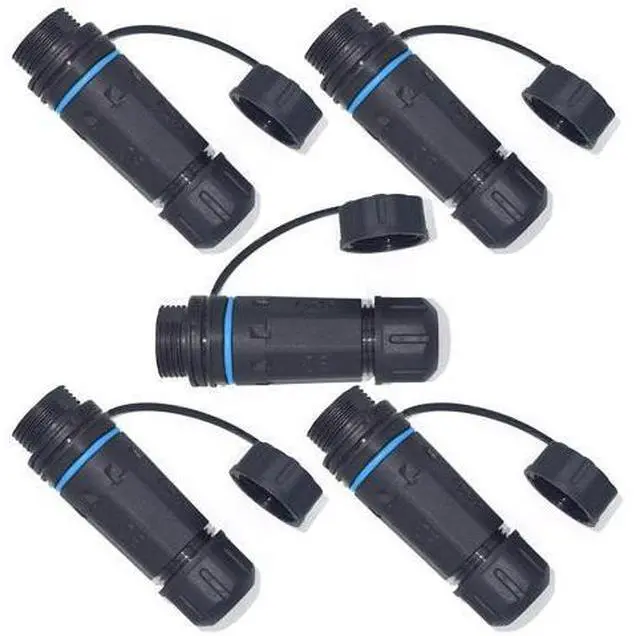

ANMBEST 5PCS Shielded RJ45 Waterproof Panel Mount Connector IP68 Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Female to Female Outdoor Network Adapter

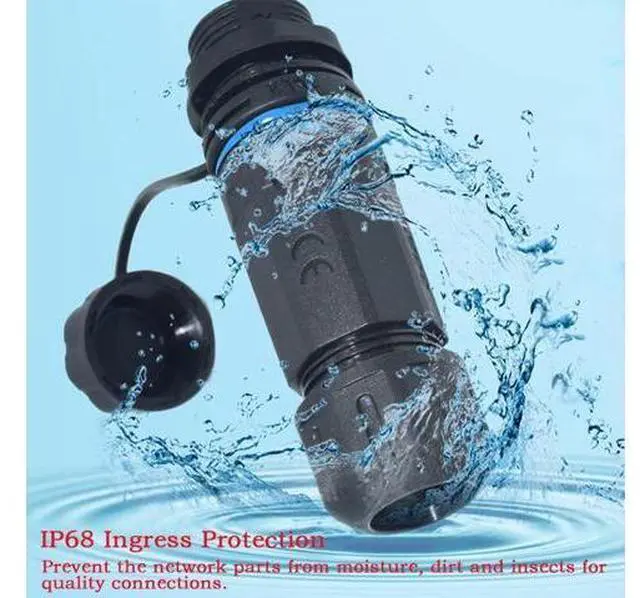

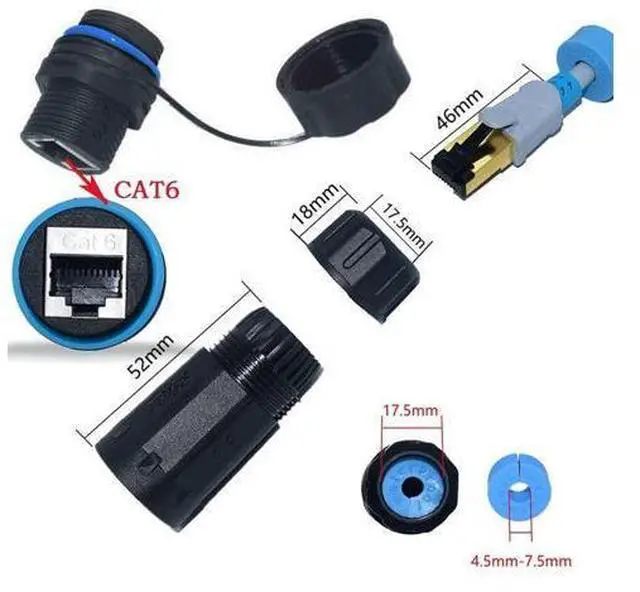

- The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Specifications : INGRESS PROTECTION : IP68i Waterproof and dustproofiThread : M23Color : Black, BlueNumber of cores : 8 PIN Connection type : RJ45Flame retardant rating : UL94V-0Connection method : plug type + thread pressure lockConnector wire-in range: OD ( 4.5 i 7.5 ) mmConnector transmission classification: CAT5, CAT5E, CAT6Transmission speed range : 10BASE-T, 100 BASE-T, 1000 BASE-T and 10000 BASE-T networkElectrical parameters : Rated current : 1.5AR ated voltage : 125VAC, 75VDC Insulation resistance : i 500MICompressive strength : AC1000V 50HZ or 60HZ for 1 minuteContact resistance: i 10MIMaterial : Shell : nylon plus fiber (UL94V-0)Socket contact pin: 0.5 mm diameter phosphor copper wireContact pin gold plating thickness: 6u inchWaterproof rubber ring : siliconeEnvironmental conditions : Working temperature : -40i 120CelsiusStorage temperature : -25i 85CelsiusAtmospheric pressure : 86i 106kPaRelative humidity : a 90% RHPackage Included : 5x M23-CAT6 Shielded Waterproof RJ45 Con
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.;: INGRESS;: IP68i;:;: Black, BlueNumber;: 8 PIN;: RJ45Flame;: UL94V-0Connection;: plug type + thread pressure lockConnector wire-in range: OD ( 4.5 i 7.5 ) mmConnector transmission classification: CAT5, CAT5E, CAT6Transmission;: 10BASE-T, 100 BASE-T, 1000 BASE-T and 10000;: Rated;: 1.5AR;: 125VAC, 75VDC;: i;: AC1000V 50HZ or 60HZ for 1 minuteContact resistance: i;:;: nylon plus fiber (UL94V-0)Socket contact pin: 0.5 mm diameter phosphor copper wireContact pin gold plating thickness: 6u;: siliconeEnvironmental;: Working;: -40i;: -25i;: 86i;: a 90%;: 5x M23-CAT6 Shielded Waterproof RJ45 Connector
