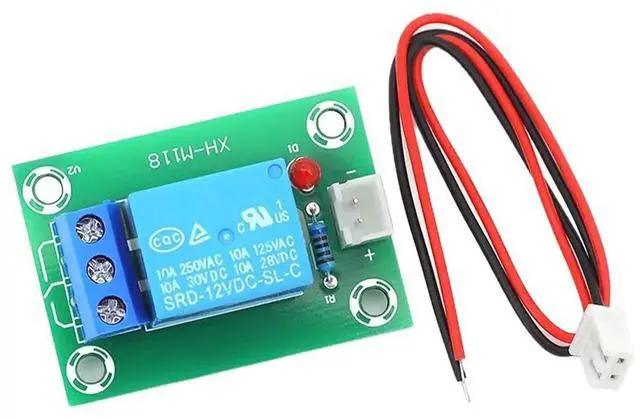

XH-M118 Single Channel Relay Module 5V/12V/24V DC, 10A SPDT Output with Optocoupler Isolation, Compatible with Arduino, Raspberry Pi, PLC Includes Wiring Harness

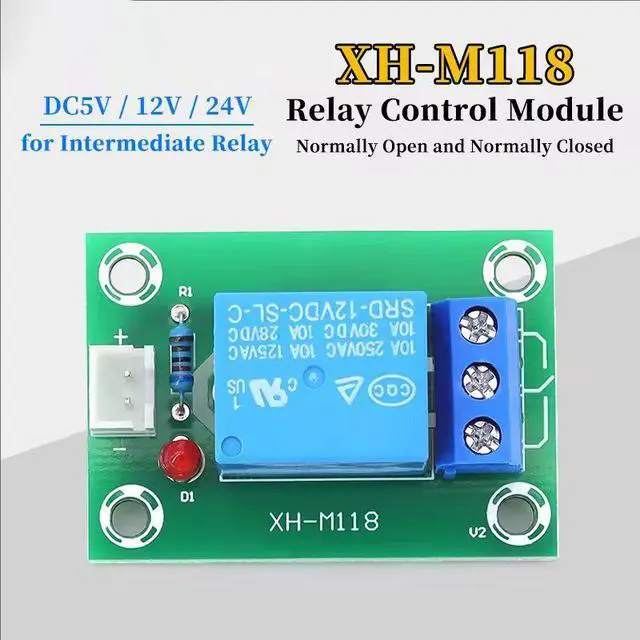

A controllable AC 10A 250VAC and DC 10A 30VDC load path relay control module with selectable voltages of 5V, 12V, and 24V. Connect the power supply, the relay will engage and the indicator light will turn on. The output interface has three ports: CK for normally open port, Cb for normally closed port.

Com Public End

Reverse connection protection. Reverse connection will not damage the module. When powered on, the common terminal is connected in series with the normally closed state. After power-on, the common terminal is connected in parallel with the normally open state.

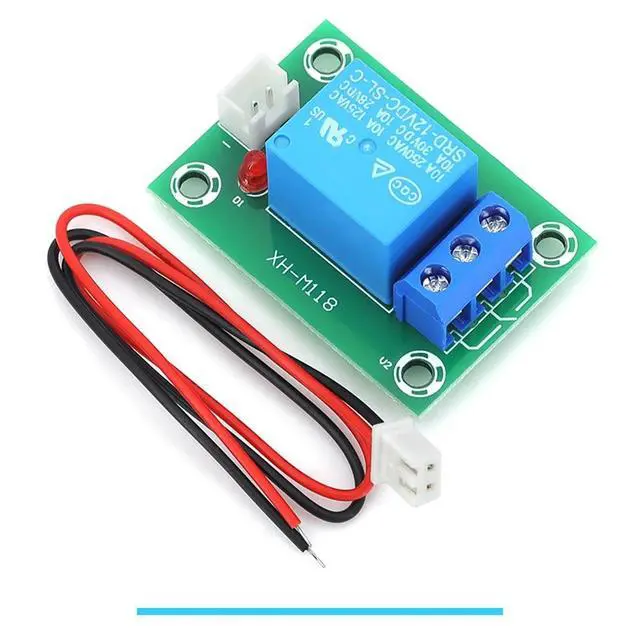

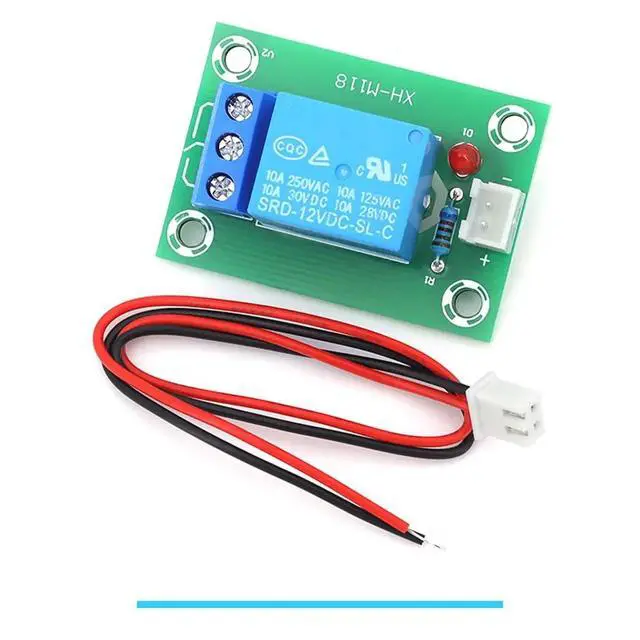

The small white socket on the relay module is wired. The wire is 150mm long and it is a simple and practical relay module. It has 5.08-3P terminals as output. It is environmentally friendly and resistant to high temperatures. The input terminals have leads for connection, with reverse connection protection. It can be directly connected to the power supply and the relay will engage without any complicated circuits.
