2 Pack WS2812B ECO RGB Alloy Wires 5050SMD Individual Addressable 16X16 256 Pixel LED Matrix Flexible FPCB Full Color Works with WLED,SP802E Controllers Image Video Text Display DC5V

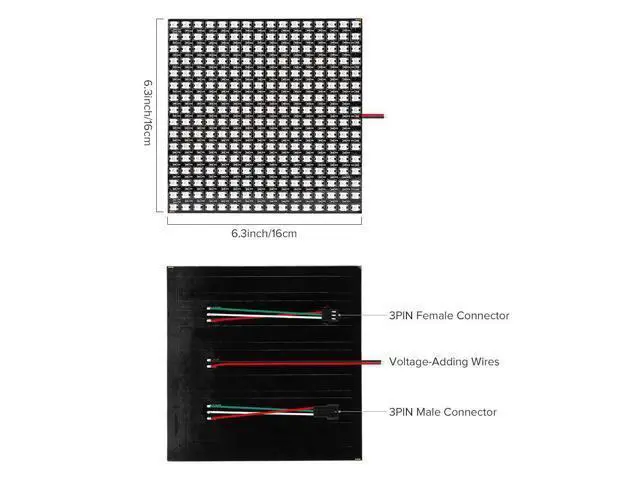

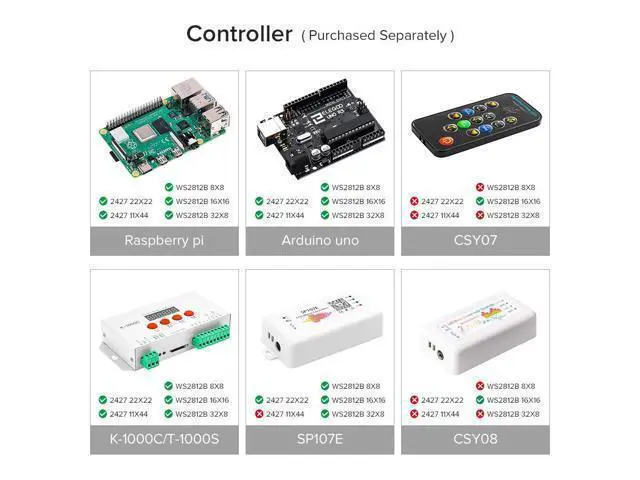

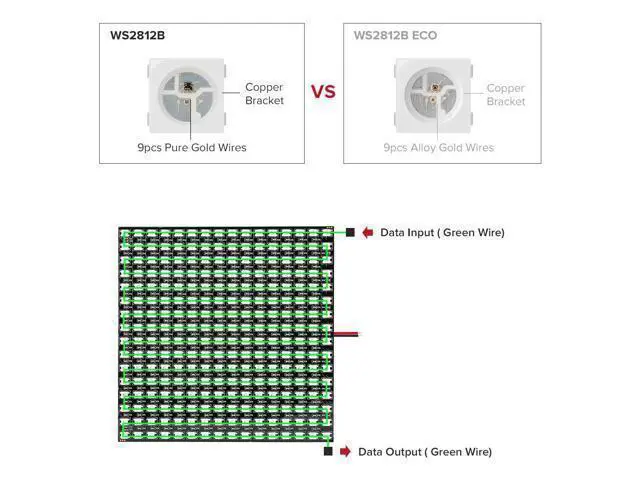

- Alloy-Wired LED Solution: Premium Performance, Budget-Friendly Value.Cost-effective solution using alloy wiring instead of premium gold wires, significantly reducing production costs while maintaining reliable performance. Perfect for entry-level projects and budget-conscious makers, delivering excellent value while expanding affordable options for LED enthusiasts.; 2 pack 16X16 256Pixels. This 16x16 LED matrix (256 total pixels, with 16 horizontal pixels and 16 vertical pixels) features a compact 16cm (Width) x 16cm (length) [6.3in x 6.3in] square design with individually addressable smart LEDs, enabling full customization of scrolling text, pixel art, and dynamic lighting patterns for creative displays.; Featuring wide compatibility, this LED matrix seamlessly works with Arduino, Raspberry Pi, FastLED library, Rainbowduino,K-1000CSP802E, SP530E and WLED controllers, offering diverse effects including spectrum music visualization, scrolling text, image/video display, fireworks animations, and dynamic chase patterns depending on your controller selection; With a chainable and flexible construction, these LED panels easily connect via 3-pin JST connectors for modular expansion. The bendable FPCB substrate conforms naturally to curved surfaces while preserving pixel integrity, perfect for creating expansive displays or organic architectural lighting installations.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IC type: WS2812B
IC Built-in Packing List: 2 pieces 16x16 256 LED matrixs
Color order: G R B (NOT
RGB) Gray level: 256
View angle: 120°
Input voltage: DC5V Do not use DC12V or

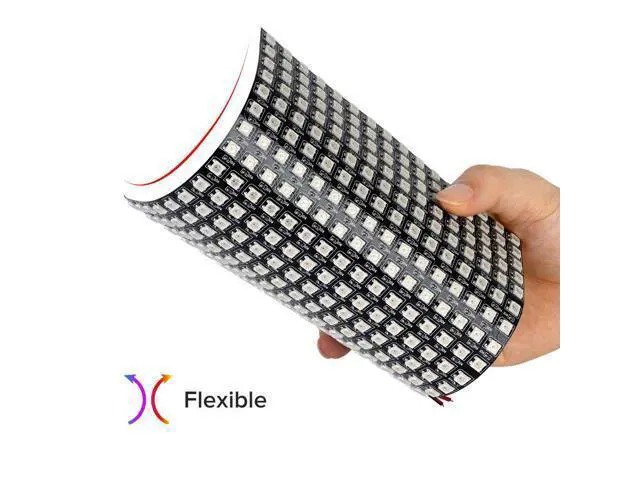

DC24V FPCB: Flexible
Color: full color 24-bit
FPCB board color: Black
Power: 0.1W ~ 0.3W /LED Total 25W~75W /256LEDs (The value will change depending on the effect. )
Recommended power supply: DC5V10A (50w) or DC5V20A (100W)
Pixel Qty: 32pixels x 8 pixels Total 256
Pixels (1PC) Operating Temperature: -20 ~ +50°C
Length xWidthx Height: 16cmx16cmx 0.2 cm
Waterproof level: IP30 non-waterproof When you light up 1 color (red or green or blue), 0.1W /LED. If you light up 2 colors (red+green), 0.2W /LED, when you light up 3 colors (red+green+blue=white light), 0.3W /LED
Note: All white light, power is 75W, wires generate a lot of heat, Do not recommended to light all white light, it will reduce the LED life and it will be very harsh Features Individually Addressable Using a programmable controller and you can program every led just you like. Every one led has its own IC chip. one IC controll one led. The chip buil in led. Ultra Bright Brightness can be adjusted freely. Do not stare at it for a long time, otherwise you will be dazzled when the led Brightness is the brightest. Colorful Red, Green, Blue. Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software Long life
Life span: more than 50000hrs Spliceable
IC Built-in Packing List: 2 pieces 16x16 256 LED matrixs
Color order: G R B (NOT
RGB) Gray level: 256
View angle: 120°
Input voltage: DC5V Do not use DC12V or
DC24V FPCB: Flexible
Color: full color 24-bit
FPCB board color: Black
Power: 0.1W ~ 0.3W /LED Total 25W~75W /256LEDs (The value will change depending on the effect. )
Recommended power supply: DC5V10A (50w) or DC5V20A (100W)
Pixel Qty: 32pixels x 8 pixels Total 256
Pixels (1PC) Operating Temperature: -20 ~ +50°C
Length xWidthx Height: 16cmx16cmx 0.2 cm
Waterproof level: IP30 non-waterproof When you light up 1 color (red or green or blue), 0.1W /LED. If you light up 2 colors (red+green), 0.2W /LED, when you light up 3 colors (red+green+blue=white light), 0.3W /LED
Note: All white light, power is 75W, wires generate a lot of heat, Do not recommended to light all white light, it will reduce the LED life and it will be very harsh Features Individually Addressable Using a programmable controller and you can program every led just you like. Every one led has its own IC chip. one IC controll one led. The chip buil in led. Ultra Bright Brightness can be adjusted freely. Do not stare at it for a long time, otherwise you will be dazzled when the led Brightness is the brightest. Colorful Red, Green, Blue. Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software Long life
Life span: more than 50000hrs Spliceable
