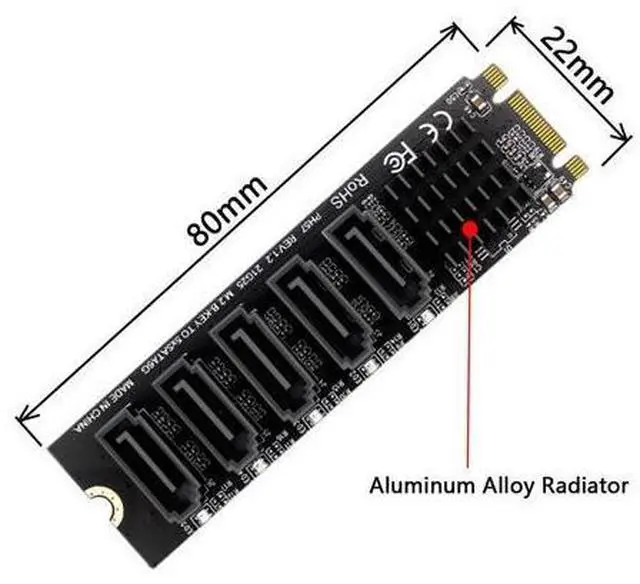

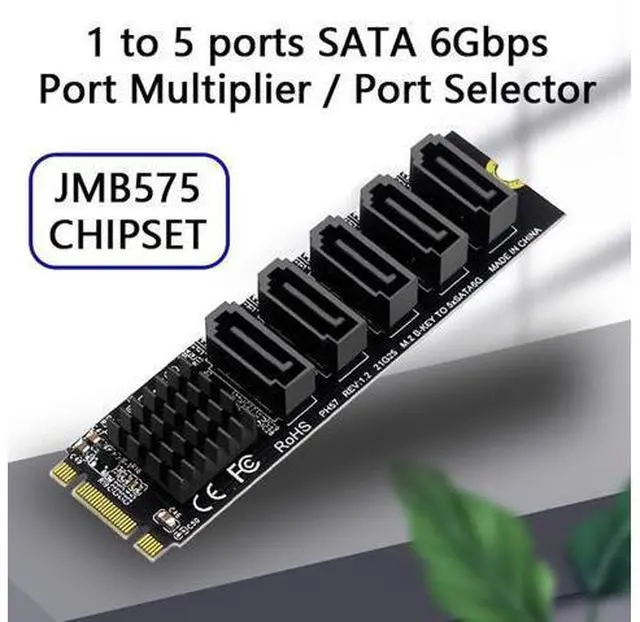

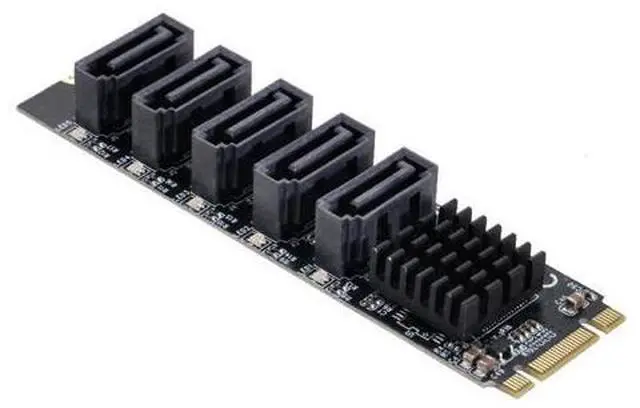

2280 M.2 NGFF Key B+M SATA to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575
Limited time offer, ends 07/14 By NovaStar Tech
- 2280 M.2 NGFF Key B+M SATA to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB Type: Other
Certification: CE
Use: Mobile
Storage Origin: CN (Origin)
Model Number: SA-035
Package: Yes NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575 JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port Multiplier or a 5 to 1 port SATA 6Gbps Port Selector. JMB575 supports cascaded mode which enables maximum 15 drives connected to one host. Key Features · Comply with Serial ATA Port Multiplier Spec. Revision 1.2 · Comply with Serial ATA Port Selector Spec. Revision 1.0 · Support 6 port SATA 6Gbps interface · Supports BIST and loopback mode · Support command-based and FIS-based switching · Support PM aware and non-PM aware host
Main control chip: JMB575
Interface: 5 * SATA 3.0 interface
Applicable slot: NGFF Key B+M
Certification: CE
Use: Mobile
Storage Origin: CN (Origin)
Model Number: SA-035
Package: Yes NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575 JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port Multiplier or a 5 to 1 port SATA 6Gbps Port Selector. JMB575 supports cascaded mode which enables maximum 15 drives connected to one host. Key Features · Comply with Serial ATA Port Multiplier Spec. Revision 1.2 · Comply with Serial ATA Port Selector Spec. Revision 1.0 · Support 6 port SATA 6Gbps interface · Supports BIST and loopback mode · Support command-based and FIS-based switching · Support PM aware and non-PM aware host
Main control chip: JMB575
Interface: 5 * SATA 3.0 interface
Applicable slot: NGFF Key B+M
