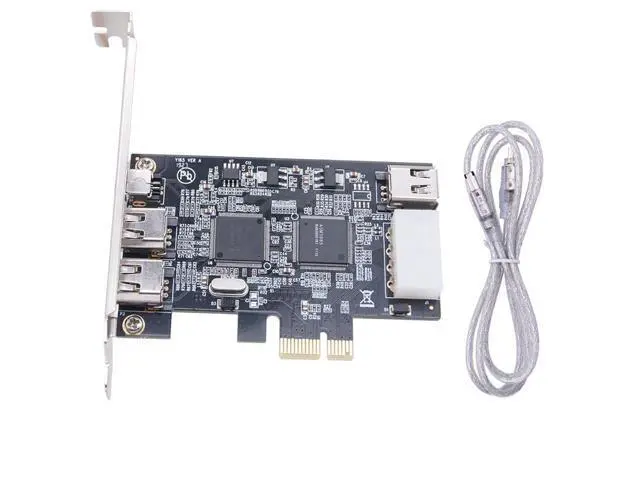

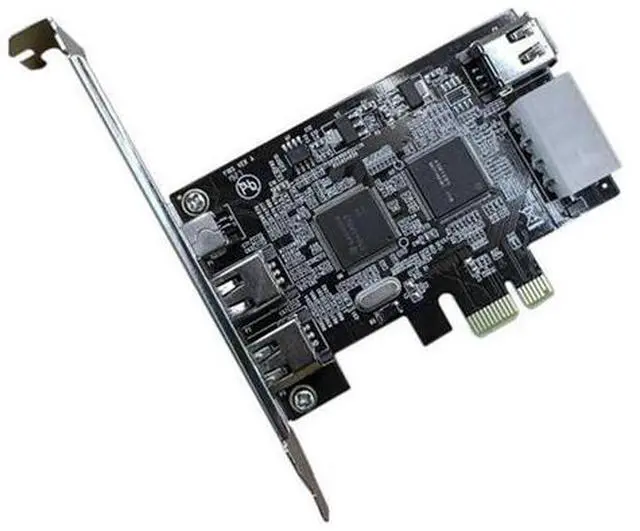

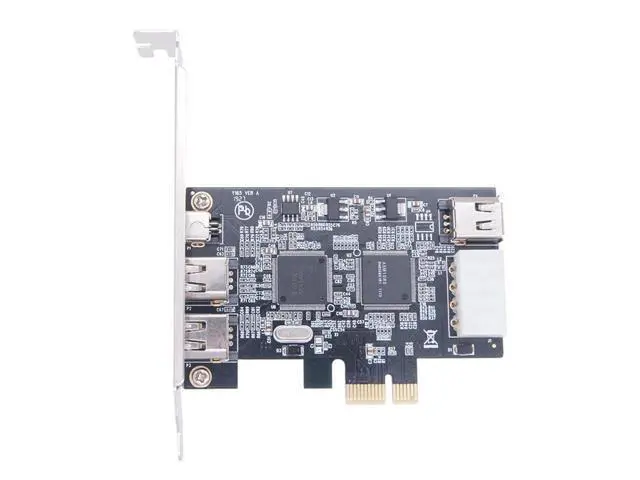

PCIe IEEE 1394 FireWire Card DV/HDV Video Capture Adapter, PCIe x1 for Desktop PC
- This card is a black Taiwan VIA/ASM1083 dual-chip version. It is fast and stable, supporting DV and HDV, and can handle the highest resolution of 1440*1080 for high-definition cameras.; There are three 1394A 6-pin ports and one 1394A 4-pin port externally.; Note: Does not support PCI interface; Shipment includes: 1 x 1394 adapter card; Connection line x1; Full-duplex 1-Lane (x1) PCI-Express bus, with a bus bandwidth of up to 2.5Gb/s; Complies with PCI-Express Revision 1.0a; Supports the IEEE P1394b-2002 standard; Complies with 1394 OHCI protocol Revision 1.1 and 1.2 draft; Supports data transmission rates of 800 / 400 / 200 / 100Mbps; Plug-and-play, supports hot swapping; Backward compatible with 1394a standard; Complies with IEEE 1394a-2000 and 1394-1995 standards; Supports bidirectional transmission (FirewireTM, iLINKTM and SB1394TM) IEEE 1394 standard; Supports the 1394b-2002 standard for bidirectional communication (800Mbps data transmission rate); Supported operating systems: Windows 8 / 7 / Vista / XP / 2000 / ME / 98SE / Server 2003-2008 32/64-bit, Mac and other operating systems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

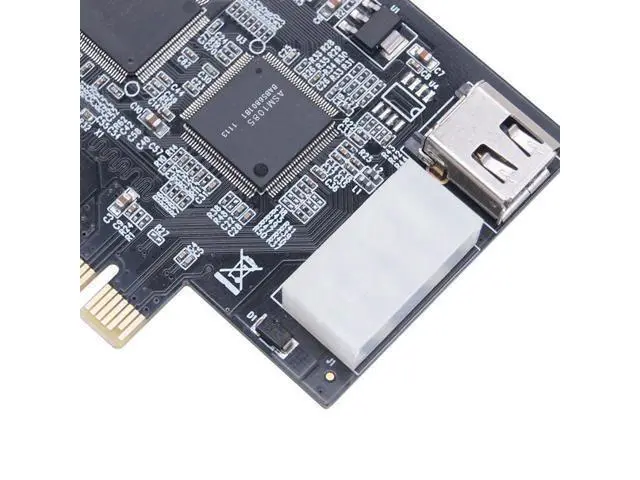

This card is a black Taiwan VIA/ASM1083 dual-chip version. It is fast and stable, supporting DV and HDV, and can handle the highest resolution of 1440*1080 for high-definition cameras. There are three 1394A 6-pin ports and one 1394A 4-pin port externally.
Note: Does not support PCI interface
Shipment includes: 1 x 1394 adapter card Connection line x1 Full-duplex 1-Lane (x1) PCI-Express bus, with a bus bandwidth of up to 2.5G b/s Complies with PCI-Express Revision 1.0 a Supports the IEEE P1394b-2002 standard Complies with 1394 OHCI protocol Revision 1.1 and 1.2 draft Supports data transmission rates of 800 / 400 / 200 / 100Mbps Plug-and-play, supports hot swapping Backward compatible with 1394a standard Complies with IEEE 1394a-2000 and 1394-1995 standards Supports bidirectional transmission (FirewireTM, iLINKTM and SB1394TM) IEEE 1394 standard Supports the 1394b-2002 standard for bidirectional communication (800Mbps data transmission rate)
Supported operating systems: Windows 8 / 7 / Vista / XP / 2000 / ME / 98SE / Server 2003-2008 32/64-bit, Mac and other operating systems
Note: Does not support PCI interface
Shipment includes: 1 x 1394 adapter card Connection line x1 Full-duplex 1-Lane (x1) PCI-Express bus, with a bus bandwidth of up to 2.5G b/s Complies with PCI-Express Revision 1.0 a Supports the IEEE P1394b-2002 standard Complies with 1394 OHCI protocol Revision 1.1 and 1.2 draft Supports data transmission rates of 800 / 400 / 200 / 100Mbps Plug-and-play, supports hot swapping Backward compatible with 1394a standard Complies with IEEE 1394a-2000 and 1394-1995 standards Supports bidirectional transmission (FirewireTM, iLINKTM and SB1394TM) IEEE 1394 standard Supports the 1394b-2002 standard for bidirectional communication (800Mbps data transmission rate)
Supported operating systems: Windows 8 / 7 / Vista / XP / 2000 / ME / 98SE / Server 2003-2008 32/64-bit, Mac and other operating systems
