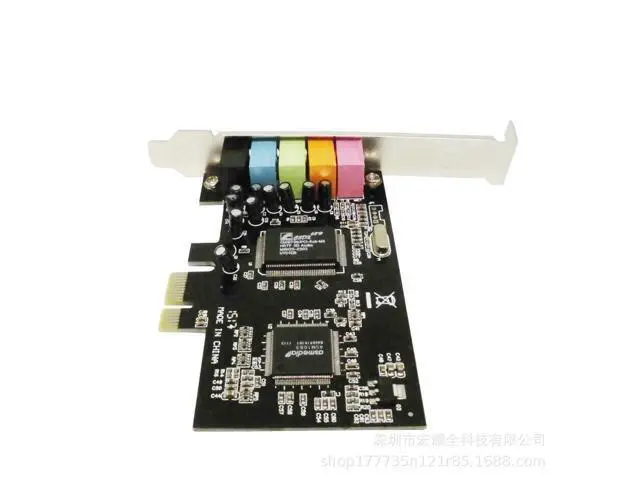

The CMI8738 5.1 multi-channel audio chip is used in the PCI-e sound card. It features a PCI-Express bus slot, supports 6-channel surround sound output, supports DLS sound library technology, supports A3D 1.0 and DS3D, and is compatible with DirectSound 3D and EAX audio effects. It supports 24-bit SPDIF OUT and SPDIF IN (optional), providing a surround sound field and clear sound quality, suitable for home theaters, large 3D games, music appreciation, karaoke and other entertainment.
Product Specifications
: 1. Full-duplex 5.1 -channel PCI-Express sound card 2. Uses VIA VT1723 Envy24D multi-channel audio chip 3. Complies with PCI-Express x1 specification revision 1.1 4. Complies with AC'97 specification revision 2.3 5.

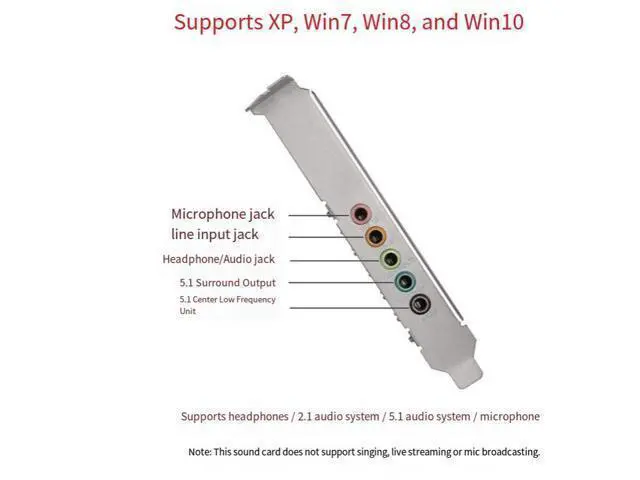

Sound sampling rate: 24-bit, 48 KHz, supports playback and recording 6. Supports front L/R, surround L/R, Centre/Subwoofer, S/PDIF-Out 7. Optional sub-card supports rear surround L/R, linear input L/R, mono Mic-In, S/PDIF-In 8. Noise balance elimination function is enabled when the PC power is off or on

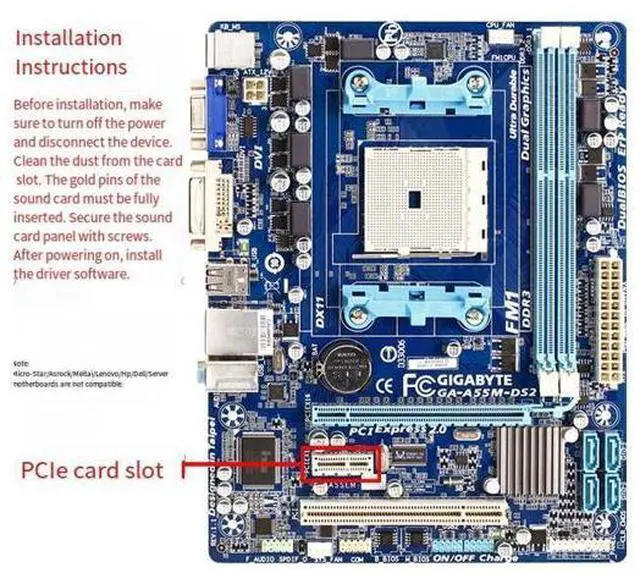

System Requirements: The operating system supports MSWin10/Windows 7/Vista/XP/Server 2003-2008 (32/64-bit), 2000, ME, 98SE. PCs with PCI-Express slots are included.
