DTECH DT-9000 Passive Bidirectional RS232 To RS485 Serial Communication Protocol Module Converter
- Interface compatible: RS485/RS232C standard; Material: ABS; Working mode: asynchronous half-duplex differential transmission; Protection level: 600W lightning surge protection per line, about 15KV electrostatic protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.
Interface compatible: RS485/RS232C standard
2.
Material: ABS
3.
Working mode: asynchronous half-duplex differential transmission
4.
Protection level: 600W lightning surge protection per line, about 15KV electrostatic protection
5.
Transmission distance: RS-485 is less than 1200m, RS-232 is within 15m
6.
Transmission rate: 300- 115.2 kbps
7.
Communication mode: point-to-point/two-wire half-duplex, point-to-multipoint/two-wire half-duplex
8.
Size: about 6.4 x 3.3 x 1.7 mm
Features:

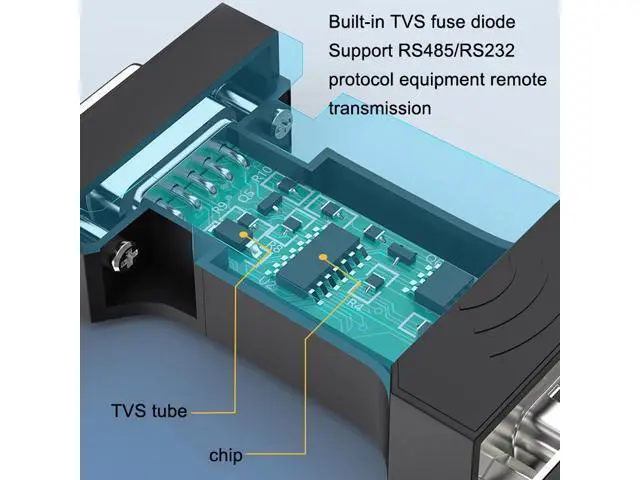

1. Built-in TVS fuse diode, support RS485/RS232 protocol equipment remote transmission
2. Driven by RS232 charge pump, no external power supply required

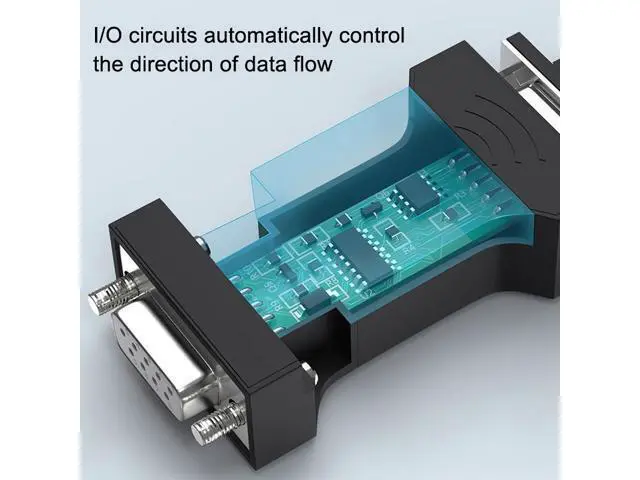

3. The I/O circuit automatically controls the data flow direction
4. Built-in zero-delay automatic transceiver conversion device, data transmission without delay
5. Multiple protections, safer to use, 600W surge protection power per line, about 15KV electrostatic protection
6. Asynchronous half-duplex differential transmission, two communication methods, stable transmission, convenient and fast
Interface compatible: RS485/RS232C standard
2.
Material: ABS
3.
Working mode: asynchronous half-duplex differential transmission
4.
Protection level: 600W lightning surge protection per line, about 15KV electrostatic protection
5.
Transmission distance: RS-485 is less than 1200m, RS-232 is within 15m
6.
Transmission rate: 300- 115.2 kbps
7.
Communication mode: point-to-point/two-wire half-duplex, point-to-multipoint/two-wire half-duplex
8.
Size: about 6.4 x 3.3 x 1.7 mm
Features:
1. Built-in TVS fuse diode, support RS485/RS232 protocol equipment remote transmission
2. Driven by RS232 charge pump, no external power supply required
3. The I/O circuit automatically controls the data flow direction
4. Built-in zero-delay automatic transceiver conversion device, data transmission without delay
5. Multiple protections, safer to use, 600W surge protection power per line, about 15KV electrostatic protection
6. Asynchronous half-duplex differential transmission, two communication methods, stable transmission, convenient and fast
