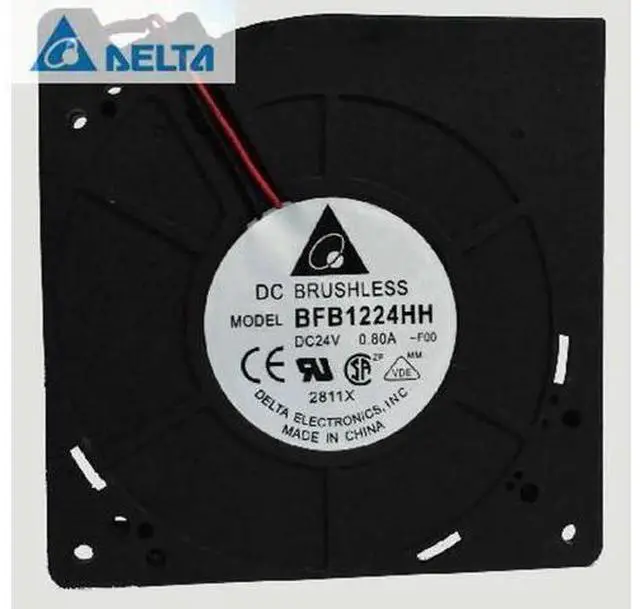

blower fan for delta BFB1224HH 12032 24V 0.80A centrifugal Excellent fan 120*120*32mm Blower Server inverter pc case cooling fan
- Certification:CE; Origin:CN(Origin); Application:Computer Case; Package:Yes; Lines:showed as above pic; Type:Fan; Brand; for delta; Fan Model; : BFB1224HH - foo; Exterior dimensions; : 120 * 120 * 32MM; Screw pitch; : 105mm; Bearing; : High -precision double ball bearing; Voltage; : 24V; Start-up voltage; : 16V; Operating voltage; :7.0- 27 .6 V; Electric current; : 0.8A; Power; : 19.2W; Speed; : 2800RPM ± 250RPM; Noise; : 54dB A; Air volume; : 32.49CFM; Line length; : 10cm; Wiring; : 2P interface supports 2-wire speed; Fan Frame; : An injection molding , PBT +30 % glass fiber VO grade flame retardant; Blades; : Injection molding , PBT +30 % glass fiber + VO grade flame retardant .; Fan rotation; : Counterclockwise as viewed from the direction of the blades; Operating temperature; : -10 Degrees Celsius to +70 degrees Celsius; Storage temperature; : -40 Degrees Celsius to +70 degrees Celsius; Power range; : Plus or minus 15 % of the rated power; Insulation resistance; : > 500 megohms; Withstanding Voltage; : Department of leakage current 0.5mA 500V / 1 minute; Working life; : 80,000 hours at an ambient temperature of 25 degrees; Scope; : Inverter,; Chassis cooling , the transformation of power supply fan , water cooling auxiliary , game consoles heat , high reliability server application places.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification: CE;
Origin: CN (Origin);
Application: Computer
Case;
Package: Yes;
Lines: showed as above pic;
Type: Fan; Brand; for delta;
Fan Model;: BFB1224HH - foo; Exterior dimensions;: 120 * 120 * 32MM; Screw pitch;: 105mm; Bearing;: High -precision double ball bearing;
Voltage;: 24V; Start-up voltage;: 16V; Operating voltage;: 7.0 - 27. 6 V; Electric current;: 0.8A;
Power;: 19.2W;
Speed;: 2800RPM ± 250RPM;
Noise;: 54dB A; Air volume;: 32.49CFM; Line length;: 10cm; Wiring;: 2P interface supports 2-wire speed;
Fan Frame;: An injection molding, PBT +30 % glass fiber VO grade flame retardant; Blades;: Injection molding, PBT +30 % glass fiber + VO grade flame retardant.;
Fan rotation;: Counterclockwise as viewed from the direction of the blades; Operating temperature;: -10 Degrees Celsius to +70 degrees Celsius;
Storage temperature;: -40 Degrees Celsius to +70 degrees Celsius;
Power range;: Plus or minus 15 % of the rated power; Insulation resistance;: > 500 megohms; Withstanding
Voltage;: Department of leakage current 0.5 mA 500V / 1 minute; Working life;: 80, 000 hours at an ambient temperature of 25 degrees; Scope;: Inverter,; Chassis cooling, the transformation of power supply fan, water cooling auxiliary, game consoles heat, high reliability server application places.
Origin: CN (Origin);
Application: Computer
Case;
Package: Yes;
Lines: showed as above pic;
Type: Fan; Brand; for delta;
Fan Model;: BFB1224HH - foo; Exterior dimensions;: 120 * 120 * 32MM; Screw pitch;: 105mm; Bearing;: High -precision double ball bearing;
Voltage;: 24V; Start-up voltage;: 16V; Operating voltage;: 7.0 - 27. 6 V; Electric current;: 0.8A;
Power;: 19.2W;
Speed;: 2800RPM ± 250RPM;
Noise;: 54dB A; Air volume;: 32.49CFM; Line length;: 10cm; Wiring;: 2P interface supports 2-wire speed;
Fan Frame;: An injection molding, PBT +30 % glass fiber VO grade flame retardant; Blades;: Injection molding, PBT +30 % glass fiber + VO grade flame retardant.;
Fan rotation;: Counterclockwise as viewed from the direction of the blades; Operating temperature;: -10 Degrees Celsius to +70 degrees Celsius;
Storage temperature;: -40 Degrees Celsius to +70 degrees Celsius;
Power range;: Plus or minus 15 % of the rated power; Insulation resistance;: > 500 megohms; Withstanding
Voltage;: Department of leakage current 0.5 mA 500V / 1 minute; Working life;: 80, 000 hours at an ambient temperature of 25 degrees; Scope;: Inverter,; Chassis cooling, the transformation of power supply fan, water cooling auxiliary, game consoles heat, high reliability server application places.
