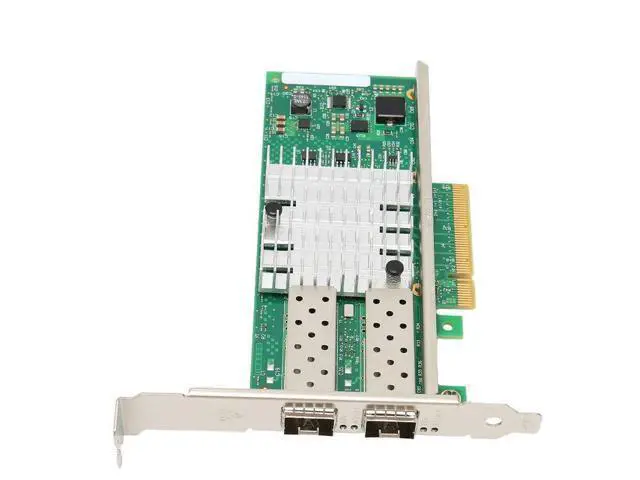

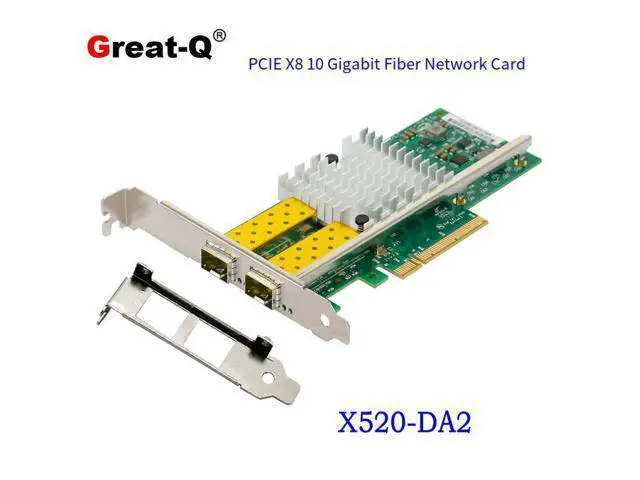

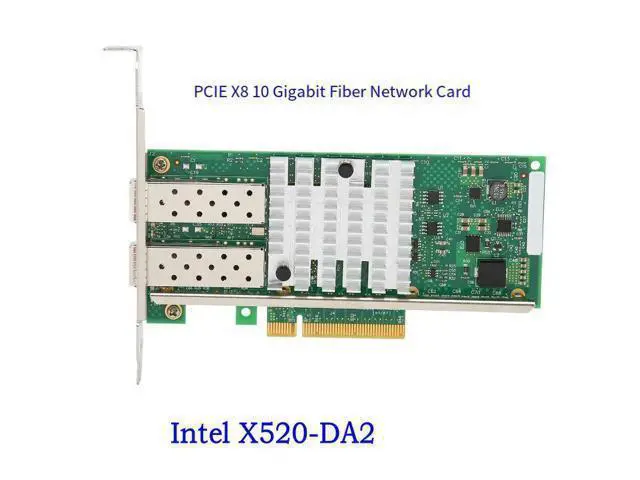

PCIe Dual Port 10GbE SFP+ Fiber Server Network Card X520-DA2, Intel 82599 Chip
- Processor chip: Intel 82599ES * 2; Bus type: PCI Express 2.0 (5GT/s); Bus bandwidth: x8 channel PCI Express, usable in x8 and x16 slots; Bus speed (x8, encoding rate): Unidirectional transmission 20 Gbps; Bidirectional transmission 40 Gbps; Network interface type: 2 SFP+ slots; Supporting rate: 10 GbE per port; Hardware Certification: FCC B, UL, CE, VCI, BSMI, CTICK, MIC; Typical power consumption: 10.0 W; General technical features; Product Name: Intel Dual-Port Gigabit Fiber Network Card; Product model: intel82599ES X520; Product type: Connected internally to (recommended with Intel Xeon 5500 series processors) server; Processor chip: Intel 82599ES * 2; Bus type: PCI Express 2.0 (5GT/s); Bus bandwidth: 8-channel PCI Express with x8 and x16 slots available for operation.; Bus speed (x8, encoding rate) One-way transmission: 20 Gbps; Two-way transmission: 40 Gbps; Network interface type: SFP+ slot *2, 2 LC optical fiber connections; Supporting rate: 10 GbE per port; Optional connection: 10GBASE-LR / 10GBASE-SR / SFP+DAC direct connection copper cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Network Standards IEEE 802.3 Hardware Certifications FCC B, UL, CE, VCI, BSMI, CTICK, MIC LED Indicators 2 fixed and blinking LEDs per port Speed LED Green = 10G / Yellow = 1G Brackets Included Full-height bracket + Low-profile bracket Airflow Requirement Minimum 100 LFM
Power Consumption Maximum: 10.7W /
Typical: 10.0W Environmental
Power Consumption Maximum: 10.7W /
Typical: 10.0W Environmental
Specifications
ParameterOperatingStorage Temperature 0°C ~ 55°C -40°C ~ 70°C Humidity 90% 90% Dimensions ComponentMetricImperial PCB Length 14.8 cm 5.83 in PCB Width 6.8 cm 2.68 in Bracket Height 12.0 cm / 8.0 cm 4.72 in / 3.15 in Package Size 20 x 15 x 4.5 cm 7.87 x 5.91 x 1.77 in Operating System Support Linux Microsoft Windows Server 2003 FreeBSD 6.2 & 7. x OS Independent Microsoft Windows Vista Microsoft Windows 7 Microsoft Windows Server 2008 Key Features 10GbE Fiber Port Supports 10GBASE-SR 850nm SFP+ Interface Hot-pluggable LC Duplex Connector Host Bus Interface PCI Express x8 PCIe Base Spec 2.0 ( 5.0 GHz) Low Profile Adapter Supports 2U / 3U chassis LAN Features IEEE 802. x Flow Control IEEE 802.1 q VLAN Tagging IEEE 802.1 p Layer 2 Priority Encoding Jumbo Frame Support (up to 16KB) Link Aggregation & Load Balancing RFC2819 RMON MIB Statistics TCP Segmentation Offload (up to 256KB) IP/TCP Receive Checksum Offload IPv6 Support DDP Offload Time Synchronization IEEE 1588 / 802.1 as Link / Activity LED Indicators LED / ConnectorSpecifications
ItemSpecification LED per Port 1 LED Link/ACT Solid when linked, blinking when active (Green) Connector...Warranty & Returns
