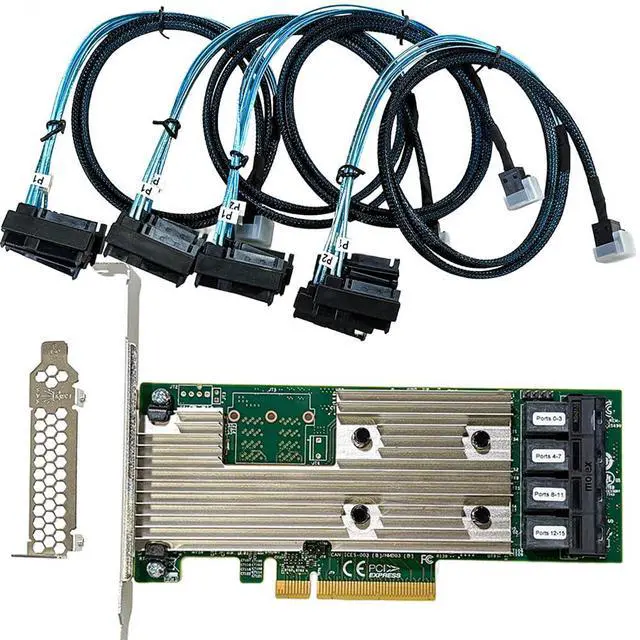

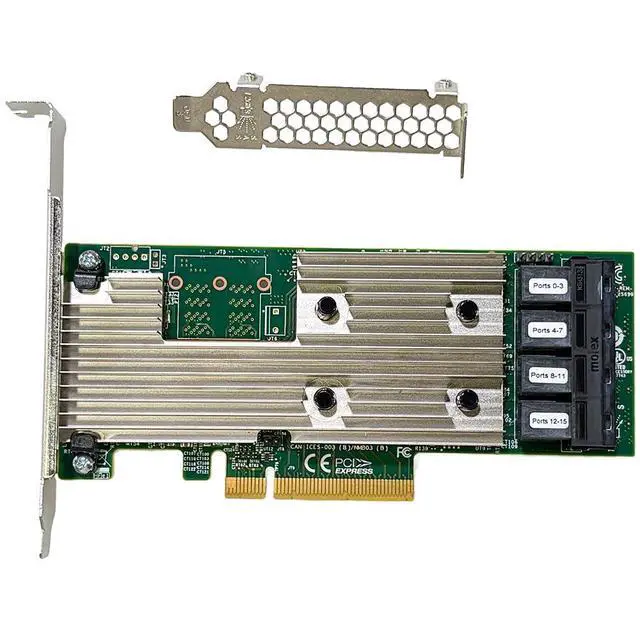

SAS HBA Card Compatible with LSI 9305-16i IT Mode PCIe SATA Expansion Card, Expander Support, 16-Port 12Gbps PCIe 3.0, HBA Controller with 4X SFF-8643 to 8482 SAS Cables for ZFS TrueNAS unRAID NAS
- Product description Compatible with: LSI 9305-16i; Controller: Broadcom/LSI SAS3216 (16-port SAS3 12Gb/s) Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: 12Gb/s per SAS lane, backward compatible with 6Gb/s/3Gb/s . Host Interface: PCIe 3.0 x8; Internal Connectors: 4x Mini-SAS HD SFF-8643. Direct attach up to 16 drives, and expand via external SAS Expander for large arrays . PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, JBOD, ESXi/Proxmox homelab and data-center storage builds . 4X SFF-8643 to 8482 SAS, 16-Port 12Gbps PCIe 3.0 x8 Packing List: HBA Card ×1; 4x SFF-8643 to 8482 SAS Cables ×4. Cables in box are for SAS drives (SFF-8482). They are not compatible with SATA drives. To connect SATA drives, use SFF-8643 to 4× SATA breakout cables (sold separately) or choose our matched HBA + cable kit Built around the Broadcom/LSI SAS3216 controller, this 16-port SAS3 (12Gb/s) HBA delivers reliable, IT-mode passthrough for NAS and software-defined storage. The card provides a PCIe 3.0 x8 host interface and four internal Mini-SAS HD (SFF-8643) connectors, enabling direct attachment of up to sixteen SAS/SATA* drives and seamless expansion through external SAS Expanders for large arrays and JBOD deployments. To get you running faster with SAS disks, the package includes 4x SFF-8643 to SFF-8482 SAS cables (with power), ideal for connecting 3.5""/2.5"" SAS hard drives to each SFF-8643 port. Typical use cases include ZFS on TrueNAS, unRAID, Linux mdadm, and virtualization platforms s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatible with: LSI 9305-16i;
Controller: Broadcom/LSI SAS3216 (16-port SAS3 12Gb/s);
Firmware (FW): HBA IT Mode (Non-RAID);
Data Transfer Rate: 12Gb/s per SAS lane, backward compatible with 6Gb/s/3Gb/s;
PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, JBOD, ESXi/Proxmox homelab and data-center storage builds;
Host Interface: PCIe 3.0 x8;

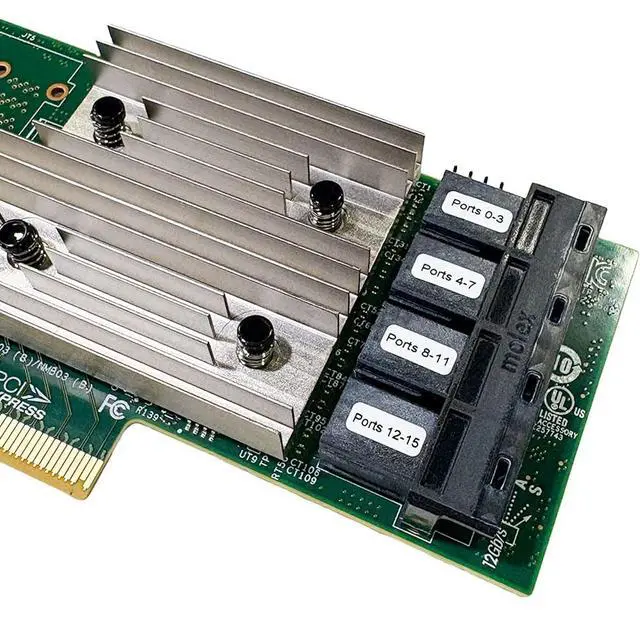

Internal Connectors: 4x Mini-SAS HD SFF-8643. Direct attach up to 16 drives, and expand via external SAS Expander for large arrays;
Packing List: HBA Card ×1; 4x SFF-8643 to 8482 SAS Cables ×4. Cables in box are for SAS drives (SFF-8482). They are not compatible with SATA drives. To connect SATA drives, use SFF-8643 to 4× SATA breakout cables (sold separately) or choose our matched HBA + cable kit
Controller: Broadcom/LSI SAS3216 (16-port SAS3 12Gb/s);
Firmware (FW): HBA IT Mode (Non-RAID);
Data Transfer Rate: 12Gb/s per SAS lane, backward compatible with 6Gb/s/3Gb/s;
PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, JBOD, ESXi/Proxmox homelab and data-center storage builds;
Host Interface: PCIe 3.0 x8;
Internal Connectors: 4x Mini-SAS HD SFF-8643. Direct attach up to 16 drives, and expand via external SAS Expander for large arrays;
Packing List: HBA Card ×1; 4x SFF-8643 to 8482 SAS Cables ×4. Cables in box are for SAS drives (SFF-8482). They are not compatible with SATA drives. To connect SATA drives, use SFF-8643 to 4× SATA breakout cables (sold separately) or choose our matched HBA + cable kit
