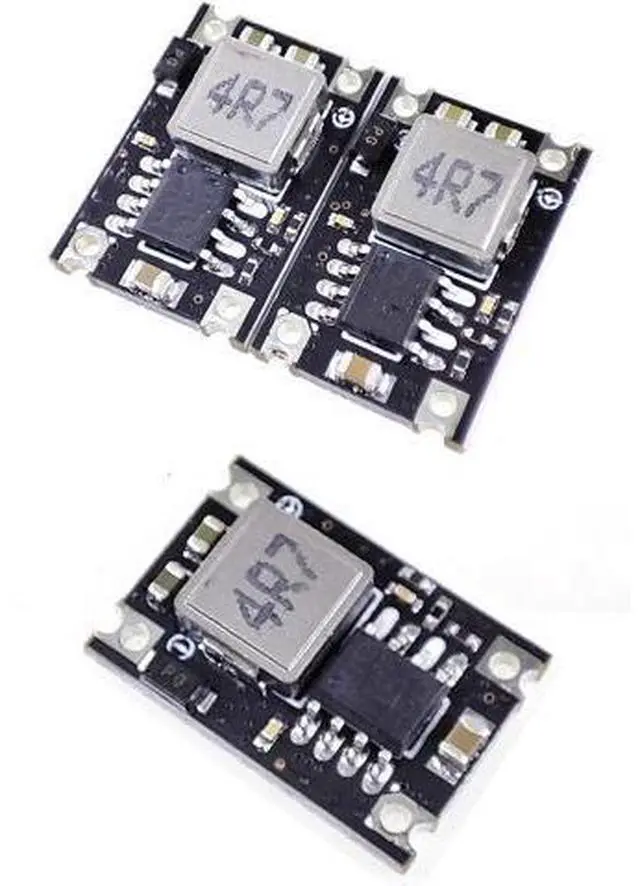

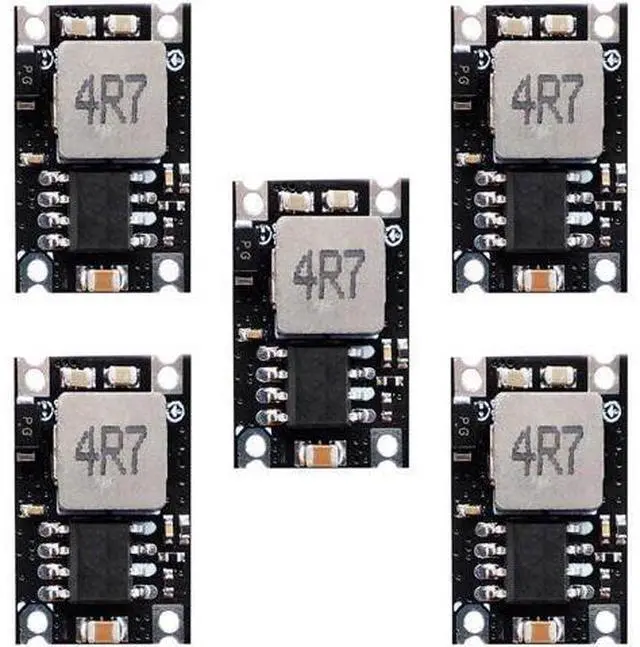

MP1584EN 5pcs Mini 12V Buck Converter Board - 12-30V to 12V, 1.8A Output, Small Size (Black, 12, Volt)
Limited time offer, ends 08/15 By Kepler Forge
- Very small size, length, width and height are 17.5*12.3*4.3mm,Input: 12V-28V,Output: 12V The maximum output current can reach 1.8A, when the output current is 1.5A, the output voltage is 11.6V Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz When using this module with an inductive load, please pay attention to the protection of the current in the rear stage. For example, when using a steering gear or a motor, a large ripple may be generated, which may affect the chips in the rear stage circuit. You can add Zener and capacitor for protection Package: 5PCS 12V Buck Module
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

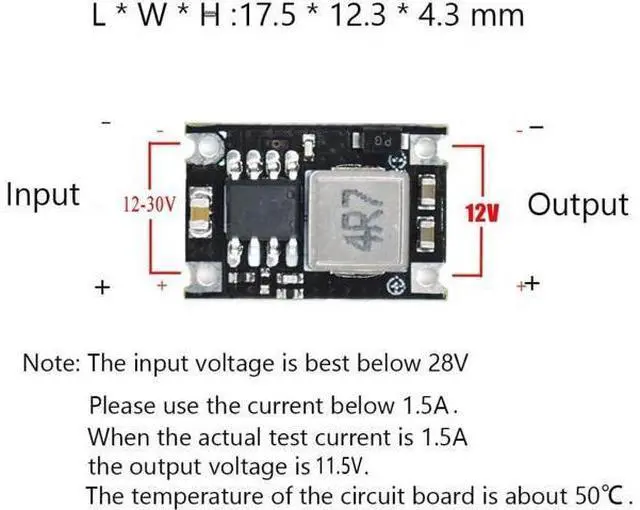

Very small size, length, width and height are 17.5 * 12.3 * 4.3 mm, Input: 12V-28V, Output: 12V
