    PCIe to USB C Expansion Card [10Gbps], PCIe 3.0 x4 and Mini Displayport (Input) to USB 3.2 Gen2 Type-C 10Gbps Video Card

    Be the first to review this product...

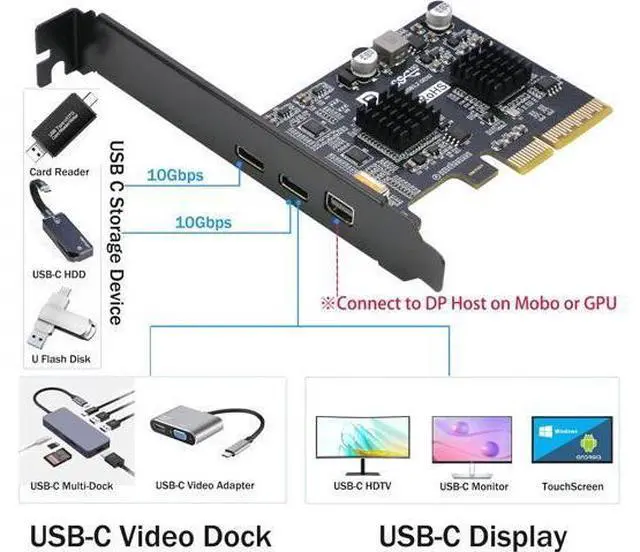

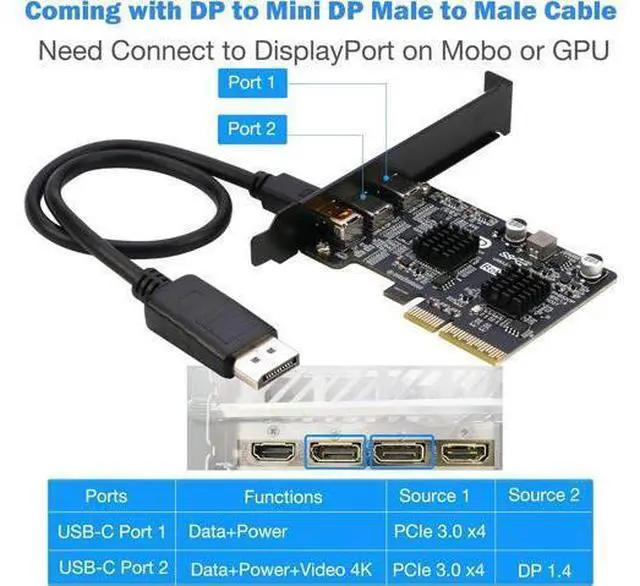

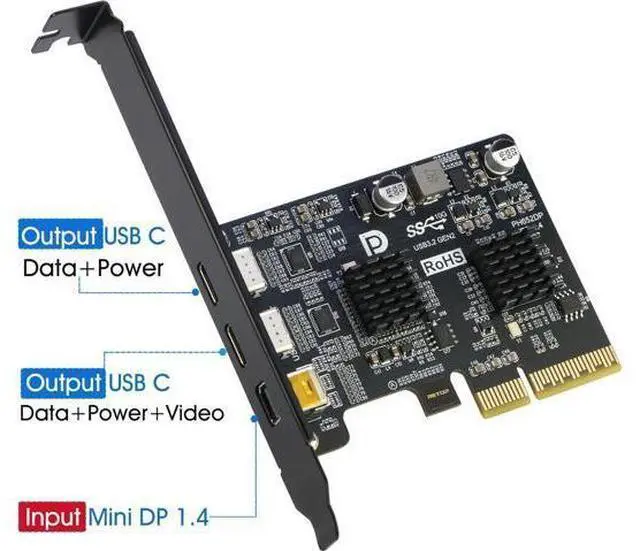

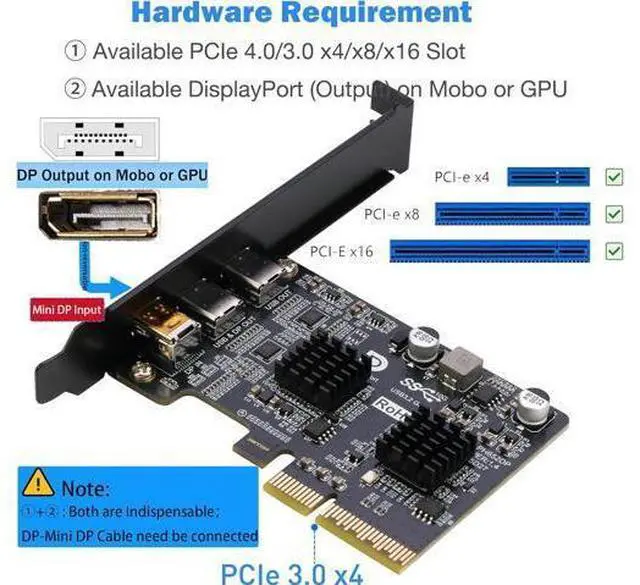

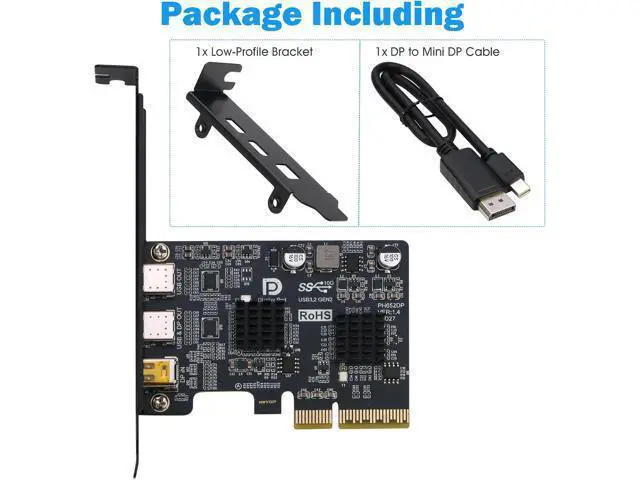

    • [What's different] PCIe to USB C Video Card is designed to older Motherboard without USB C ( DisplayPort Alt-Mode) Port, the general PCIe USB Expansion Cards can only support data transfer, not support video, this PCIe usb c card fills the gap. So you can connect to USB-C Monitor or USB-C Multi-function Docking Station [Hardware Requirement] 1. 1x Available PCIe 3.0/4.0 x4/x8/x16 Slot, Please make sure the Slot you want to insert owns PCIe 3.0 x4 Bandwidth at least (It may need calculate according to Specification of Mobo if GPU and NVMe SSD installed); 2. 1x Available DisplayPort 1.4 Output on Motherboard or Graphics Card(Required, USB-C Port 2 can also only transfer data if there is no Displayport on Mobo or Graphics Card to connect the Mini DisplayPort Input Port); DP to Mini DP Cable which in package need be connected [Functions] There are 2x USB 3.2 Gen2 Type-C Ports with different Function. Port 1: Supports Data transfer up to 10Gbps, PD Charging 5V/2A, Does NOT support video; Port 2: Data transfer up to 10Gbps, PD Charging 5V/2A, 4K 60Hz Video (Please note: Only Support Displayport host to USB-C Displays, Not work for USB-C host to Displayport Displays.) [Chipset] PCIe to USB C 10Gbps Card Adopts ASM3142 Chipset. Independent 10Gbps USB physical interface for each USB Type-C port. USB port supplies +5V DC / 2A power output to USB device with over-current protection. USB-C [Port 2] is Compliant with DisplayPort 1.4 spec with HDTV 4K (2160p) resolution and stereoscopic 3D
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now
    [What's different] PCIe to USB C Video Card is designed to older Motherboard without USB C ( DisplayPort Alt-Mode) Port, the general PCIe USB Expansion Cards can only support data transfer, not support video, this PCIe usb c card fills the gap. So you can connect to USB-C Monitor or USB-C Multi-function Docking Station

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
