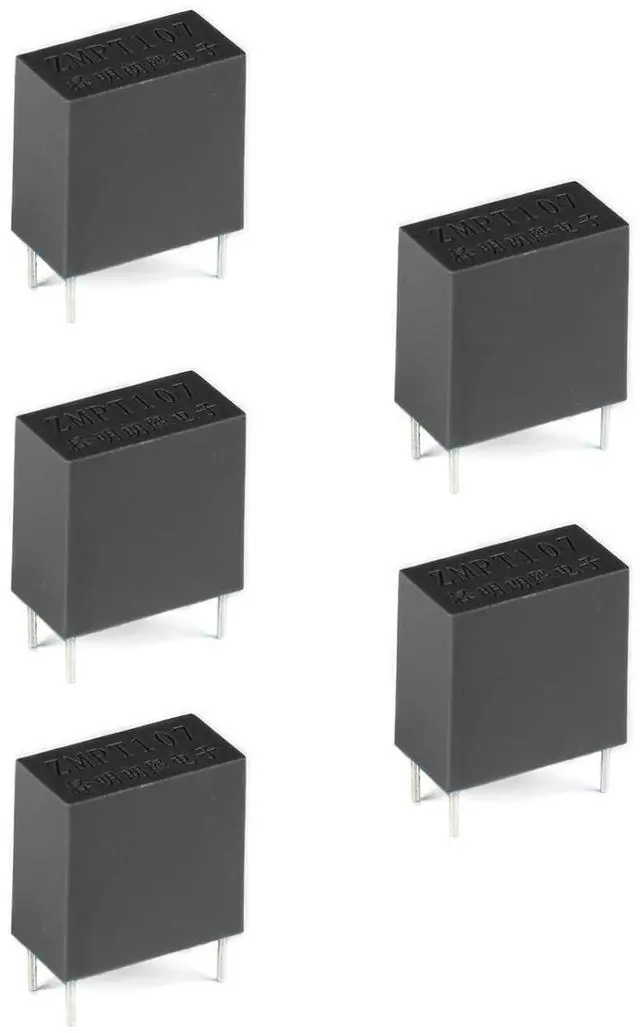

5Pcs ZMPT107-1 2mA/2mA Precision Current Type Voltage Transformer Isolated Voltage Withstand 4500V PBT for Voltage Measurement

Transformer, also known as instrument transformer, is a general term for current transformer and voltage transformer. It can convert high voltage into low voltage, and large current into small current for measurement or protection of the system.; ZMPT107-1 voltage transformer, with small size, high accuracy, and good consistency, is used for accurate measurement of voltage and power.; Rated input current 2mA; Rated output current 2mA; Transformation ratio 1000:1000;
Phase difference (at rated input): 45
'(input: 2mA, sampling
resistance: 50 );
Linear range: 0-1000V
0-10mA (sampling resistance: 50 ); Linearity 0.2 % (20% points to 120% points);
Accuracy class: - 0.6 % f 0% (input: 2mA, sampling
resistance: 50 );
Isolation and withstand voltage: 3000V;
Purpose: Precision voltage and power measurement;
Sealing material: PBT material;
Installation method: printed board installation (pin length>3mm);
Working temperature: - 40 ~+70
