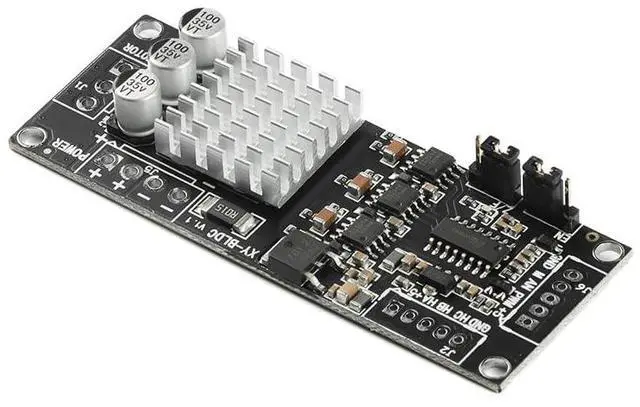

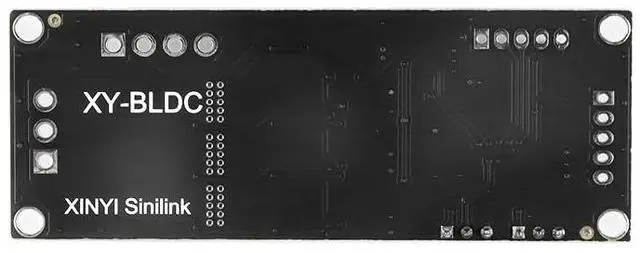

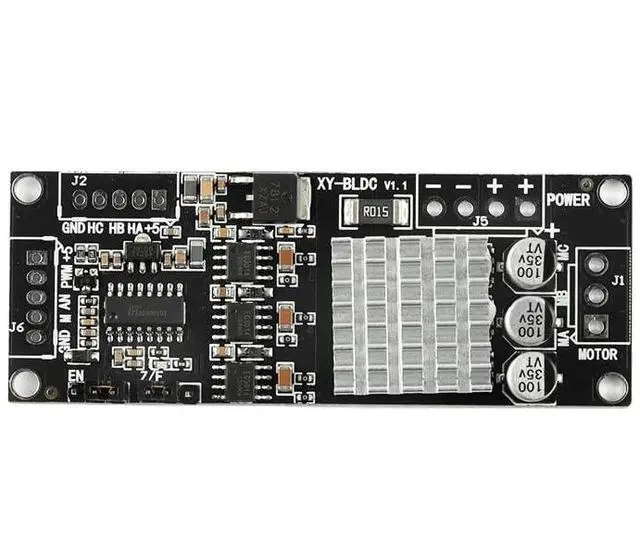

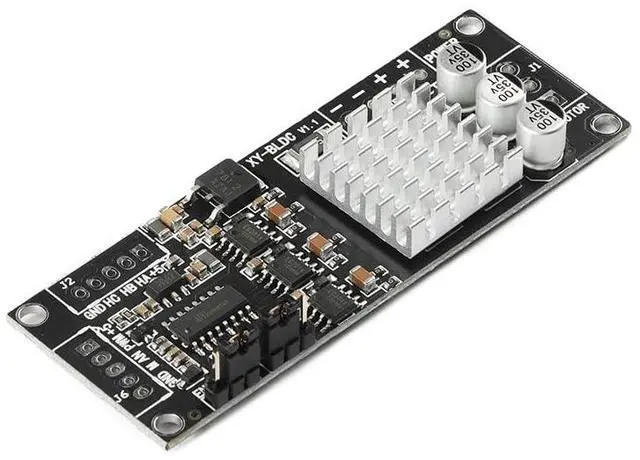

XY-BLDC 3 Phase DC Brushless Hall Motor Controller Module 10KHz PWM 12V-30V 200W Brushless Motor Drive Board

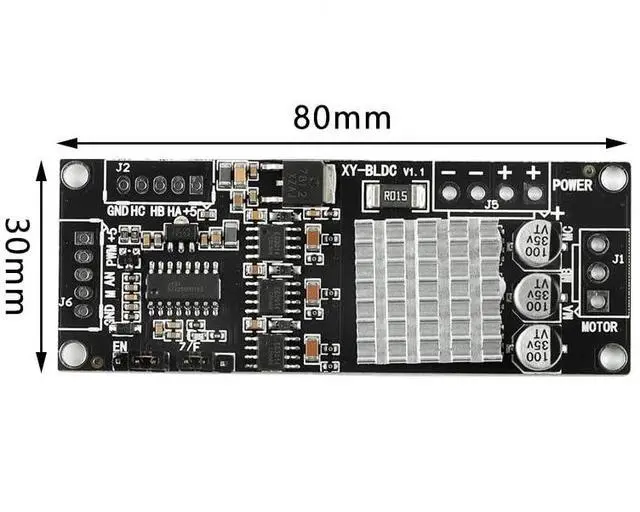

- Product parameters Product Name: 200W Brushless Hall DC Motor Driver Model: XY-BLDC Working voltage: 12-30V Maximum current: rated 7A, peak 10A Maximum power: 200W Overcurrent protection: Yes Forward and reverse: Yes Brakes: Yes Speed regulation PWM: Yes Speed regulation analog quantity: Yes Product size: 80MM long * 30MM wide * 10MM high Product weight: 15g
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
DFN Packaging Technology BLDC Wide Voltage 12-30V High Power 200W DC Three Phase Brushless Hall Controller; Supports PLC 0-5V analog control and PWM to 0-5V control, only suitable for DC brushless Hall motors with an electrical angle of 120 degrees;
Product Name: 200W Brushless Hall DC Motor Driver; The 5V, GND motherboard comes with a 5V power supply (capable of external power supply, with a current not exceeding 10mA); The speed pulse signal output has an amplitude of 5V, and each pulse represents one revolution of the motor.
Product Name: 200W Brushless Hall DC Motor Driver; The 5V, GND motherboard comes with a 5V power supply (capable of external power supply, with a current not exceeding 10mA); The speed pulse signal output has an amplitude of 5V, and each pulse represents one revolution of the motor.
