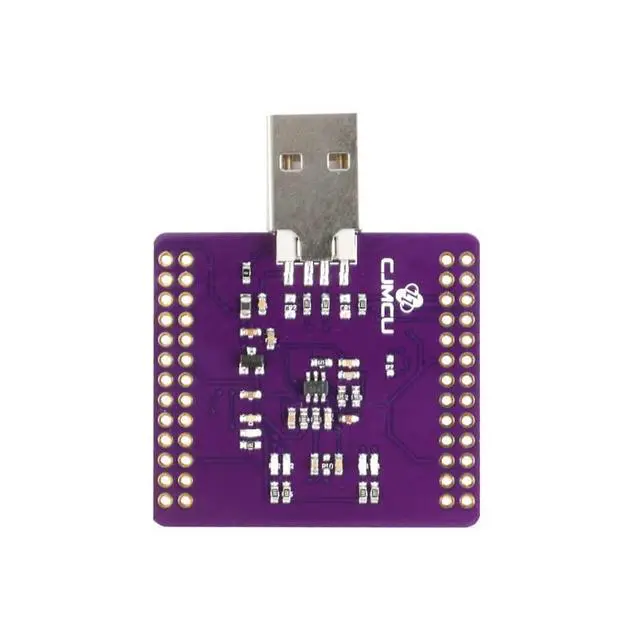

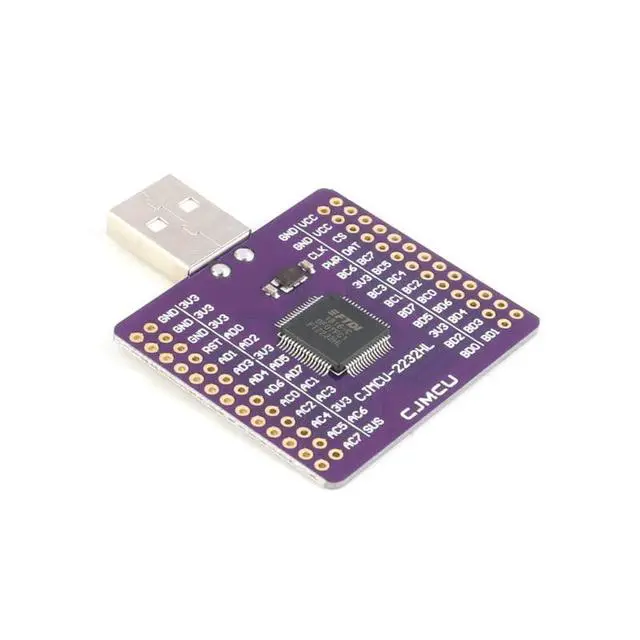

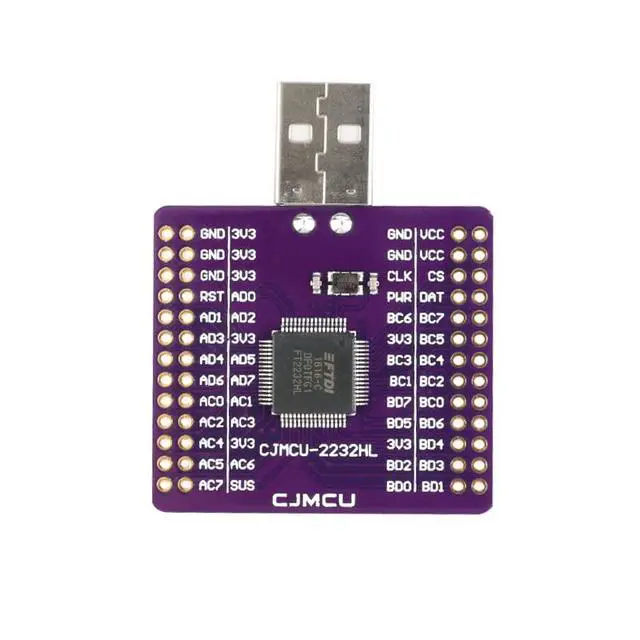

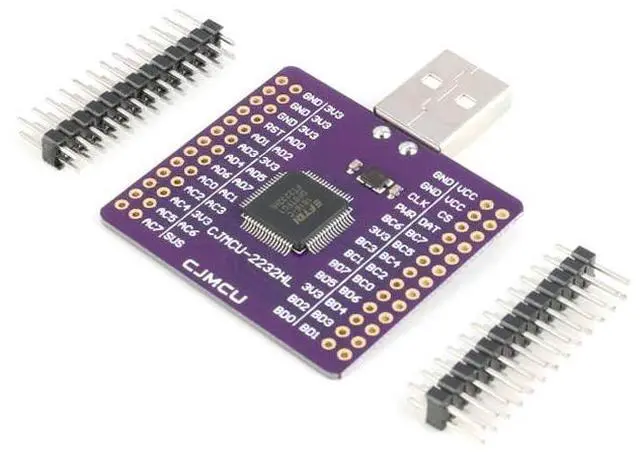

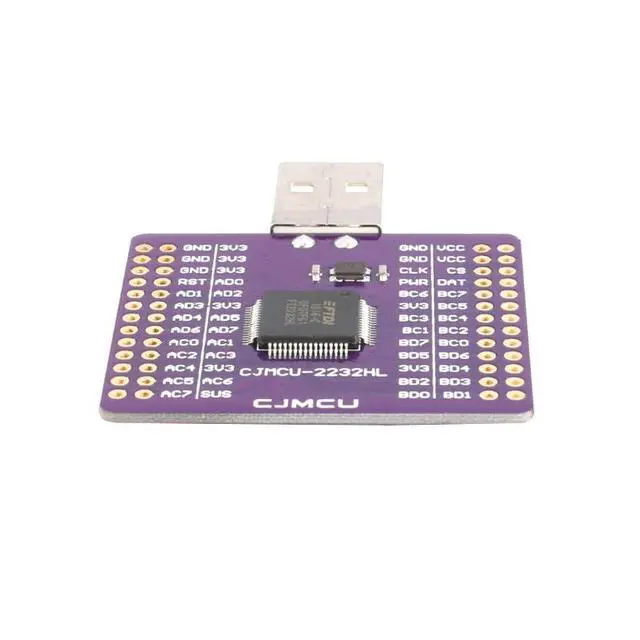

FT2232HL Dual Channel UART USB Universal Serial Adapter FIFO SPI I2C JTAG RS232 RS422 RS485 Compatible with UHCI OHCI EHCI Host Controller
- Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer,hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer. Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The FT2232H USB to Serial Adapter Single chip USB to dual serial / parallel ports with a variety of configurations, Entire USB protocol handled on the chip. No USB specific firmware programming required. USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible. Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design, Dual independent UART or FIFO or MPSSE ports. Independent Baud rate generators, RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter), USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec. Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec, CPU-style FIFO interface mode simplifies C
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The FT2232H USB to Serial Adapter Single chip USB to dual serial / parallel ports with a variety of configurations, Entire USB protocol handled on the chip. No USB specific firmware programming required.; USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.; Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design, Dual independent UART or FIFO or MPSSE ports.; Independent Baud rate generators, RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter), USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec.
; Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec, CPU-style FIFO interface mode simplifies CPU interface design, MCU host bus emulation mode configuration option, Fast Opto-Isolated serial interface option.
; Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec, CPU-style FIFO interface mode simplifies CPU interface design, MCU host bus emulation mode configuration option, Fast Opto-Isolated serial interface option.
