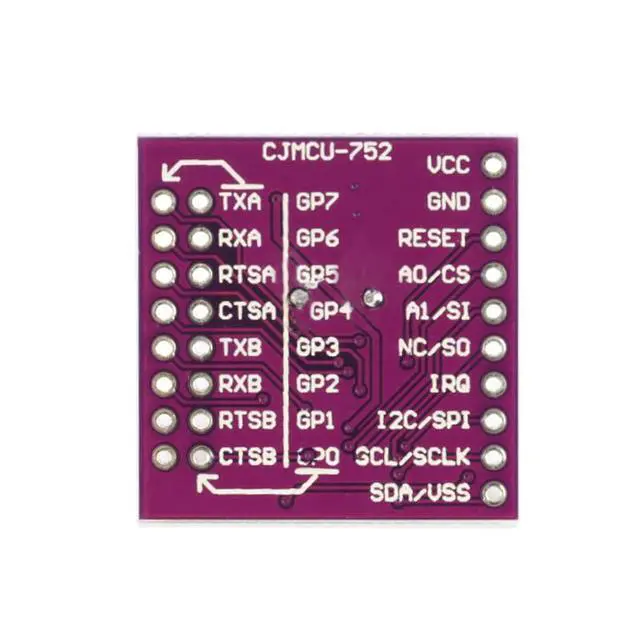

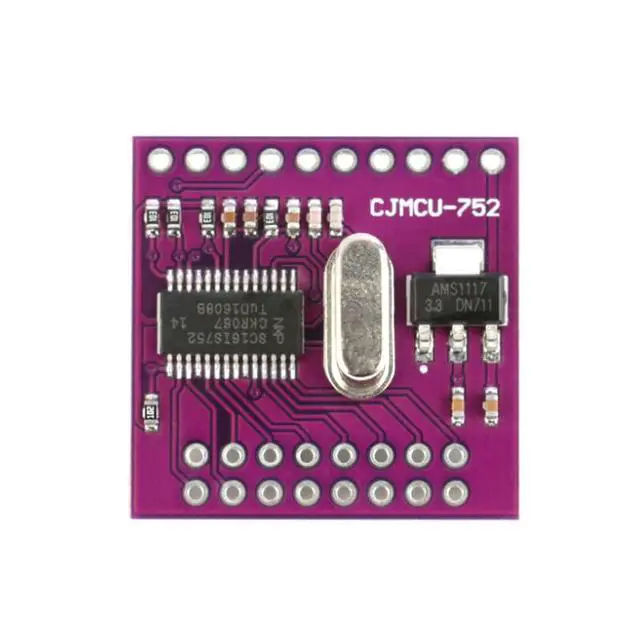

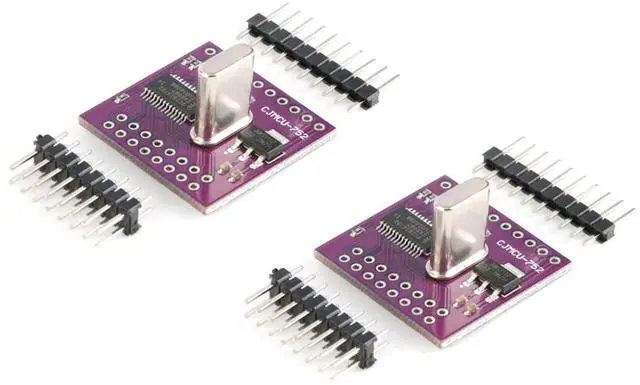

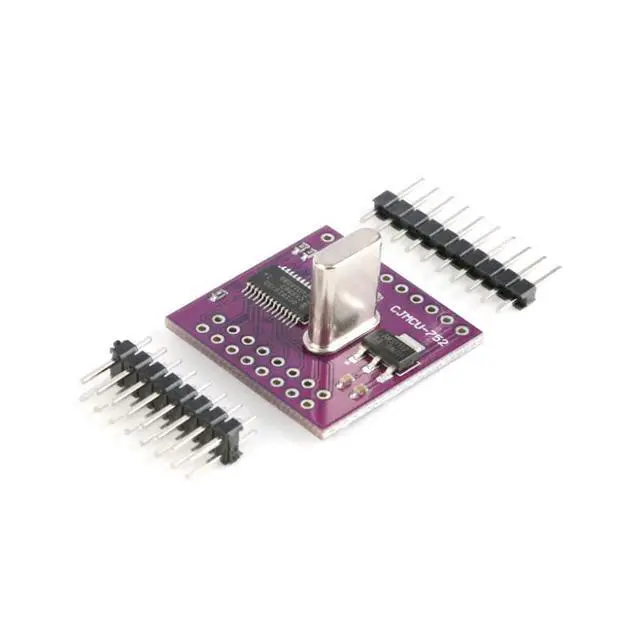

2Pcs SC16IS752 I2C SPI to UART Serial Adapter Module, Dual Channel UART Conversion with Pins
- General features: Industrial temperature range: 40 °C to +95 °C 64 bytes FIFO (transmitter and receiver) Fully compatible with industrial standard 16C450 and equivalent Baud rates up to 5 Mbit/s in 16× clock mode Auto software flow control with programmable Xon/Xoff characters Single or double Xon/Xoff characters Automatic RS-485 support (automatic slave address detection) RS-485 driver direction control via RTS signal RS-485 driver direction control inversion Built-in IrDA encoder and decoder supporting IrDA SIR with speeds up to 115.2 kbit/s SC16IS762 supports IrDA SIR with speeds up to 1.152 Mbit/s Software reset Transmitter and receiver can be enabled/disabled independent of each other Receive and Transmit FIFO levels Programmable special character detection Fully programmable character formatting: 5-bit, 6-bit, 7-bit or 8-bit character, Even, odd, or no parity, 1, 112, or 2 stop bits Line break generation and detection Internal Loopback mode Sleep current less than 30 µA at 3.3 V Industrial and commercial temperature ranges 5 V tolerant inputs I2C-bus features: Noise filter on SCL/SDA inputs 400 kbit/s (maximum) Compliant with I2C-bus Fast mode Slave mode only SPI features: SC16IS752 supports 4 Mbit/s maximum SPI clock speed Slave mode only SPI Mode 0
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The SC16IS752 Serial Adapter is an I2C bus/SPI bus interface to a dual-channel high performance UART offering data rates up to 5 Mbit/s, low operating and sleeping current; it also provides the application with 8 additional programmable I/O pins; This SC16IS752 chip enables seamless protocol conversion from I2C-bus/SPI to RS-232/RS-485 and is fully bidirectional.; The SC16IS752 supports SPI clock speeds up to 4 Mbit/s, and the SC16IS752 internal register set is backward compatible with the widely used and widely popular 16C450. This allows the software to be easily written or ported from another platform.
; Dual full-duplex UART, I2C-bus or SPI interface selectable, 3.3 V or 2.5 V operation, Auto hardware flow control using RTS/CTS, Up to eight programmable I/O pins, Automatic RS-485 support (automatic slave address detection); SC16IS752 Serial Adapter Module also provides additional advanced features such as auto hardware and software flow control, automatic RS-485 support and software reset. This allows the software to reset the UART at any moment, independent of the hardware reset signal.
; Dual full-duplex UART, I2C-bus or SPI interface selectable, 3.3 V or 2.5 V operation, Auto hardware flow control using RTS/CTS, Up to eight programmable I/O pins, Automatic RS-485 support (automatic slave address detection); SC16IS752 Serial Adapter Module also provides additional advanced features such as auto hardware and software flow control, automatic RS-485 support and software reset. This allows the software to reset the UART at any moment, independent of the hardware reset signal.
