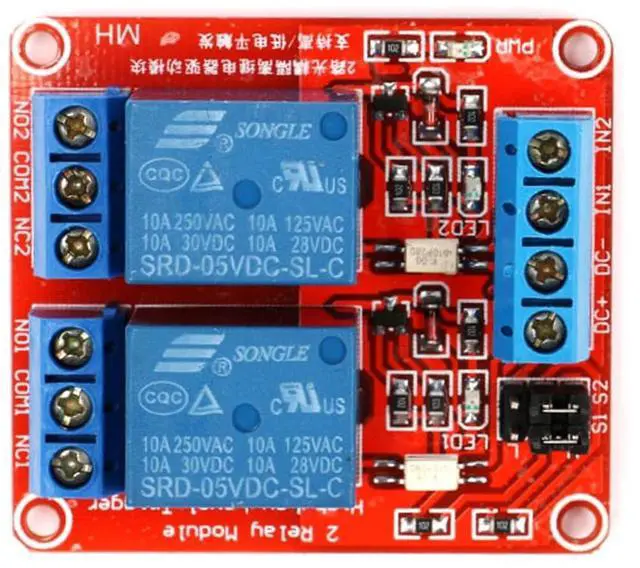

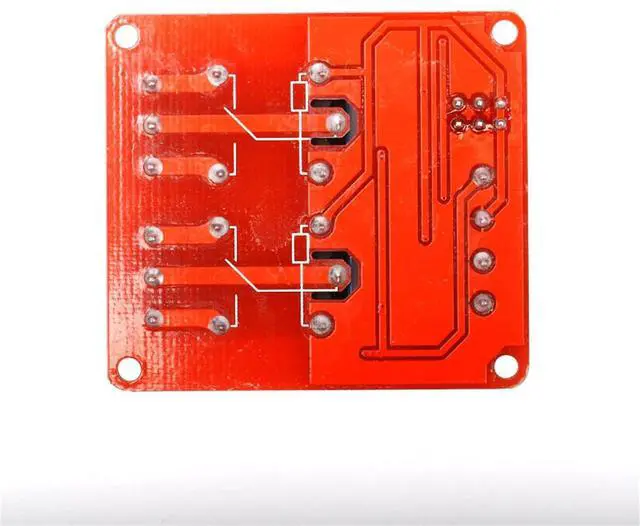

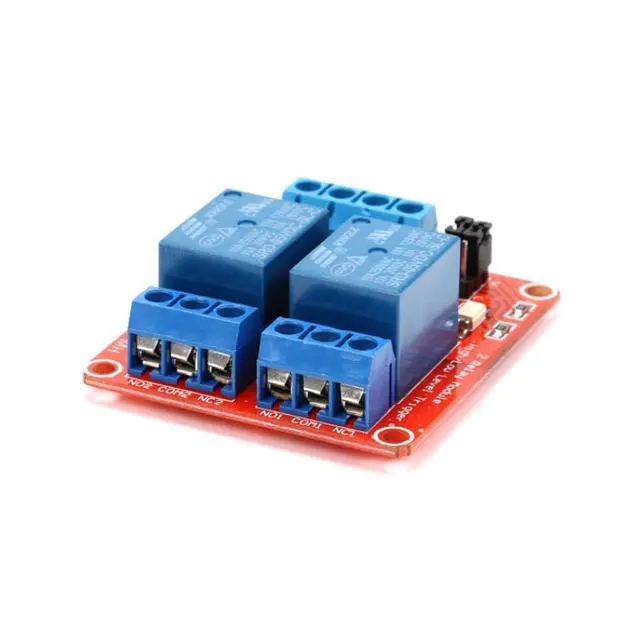

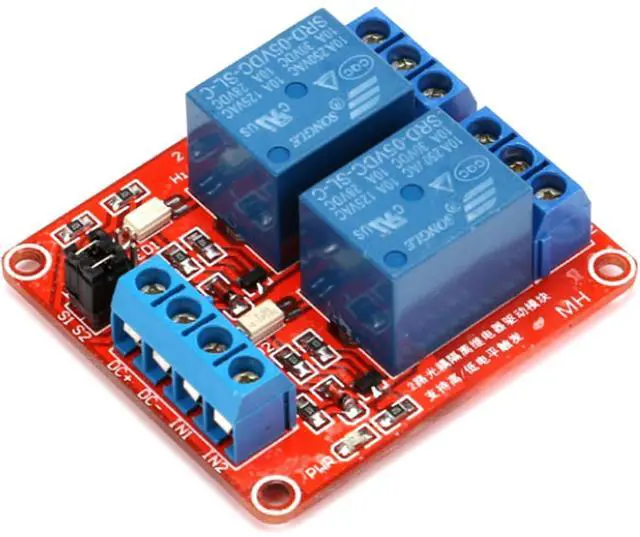

2 Pack 5V 2-Channel Relay Module with Optocoupler, Red Expansion Board Supports High/Low Level Trigger 2-Way OPTO
- Product parameters Working voltage: 5V Quiescent current: 5mA MAX current: 190mA Trigger voltage: Low: 0; High: 5V Trigger current: 2-4mA MAX load: AC250V/10A, DC30V/10A Module size: 50mm * 41mm* 18.5 mm/1.97inch * 1.61inch * 0.73inch (L * W * H) Equipped with 2 fixing bolt holes, with an aperture of 3.1mm/0.12inch and a spacing of 44.5mm * 35.5mm/1.75inch * 1.40inch Power indicator (green), 2-way relay status indicator (red) 2. Trigger mode configuration description The module has a trigger level selection terminal, each relay trigger level can be controlled individually, through the short-circuit cap for control. com is the public terminal, in the middle. When the LOW (L) end and the public terminal is connected, for the low level trigger; when the HIGH (H) end and the public terminal is connected, for the high level trigger. Module interface: DC+: connected to the positive pole of the power supply DC -: Connected to the negative electrode of the power supply IIN1: 1 channel signal trigger terminal can be set high or low-level control relay suction IN2: 2-way signal trigger terminal can be set high or low-level control relay pull Relay output: NO1: 1 relay normally opens the interface, the relay is suspended before suction and short-connected with COM1 after suction COM1: 1 relay common interface NC1: 1 relay normally closed interface, relay and COM1 short connect before closing, after closing suspended NO2: 2 relay normally opens the interface, the relay is suspended befor
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Effortless Power ControlEasily manage up to 10A of power with relay module, equipped with high-quality relays and optocoupler isolation for enhanced durability and performance. for various microcontroller applications, from home automation to industrial controls.; Versatile Triggering Options Choose between high and low-level trigger modes with simple configuration settings to suit your project's needs. Each relay's trigger level can be individually controlled, providing flexibility and precision in your setup.; Secure and Reliable Connections Features robust AC250V/10A and DC30V/10A load capacity, ensuring safe and reliable connections for high-power applications. Equipped with four fixing bolt holes for secure mounting and straightforward installations.
; Clear Visual IndicatorsStay informed of your systems status with a power indicator (green) and four relay status indicators (red), allowing for at-a-glance monitoring of operations. Perfect for troubleshooting and system checks.; Compact and User-Friendly Design Our relay module measures just 1.97 x 1.61 x 0.73 inches, fitting easily into any setup without overcrowding. The intuitive module interface makes wiring and adjustments quick and hassle-free.
; Clear Visual IndicatorsStay informed of your systems status with a power indicator (green) and four relay status indicators (red), allowing for at-a-glance monitoring of operations. Perfect for troubleshooting and system checks.; Compact and User-Friendly Design Our relay module measures just 1.97 x 1.61 x 0.73 inches, fitting easily into any setup without overcrowding. The intuitive module interface makes wiring and adjustments quick and hassle-free.
