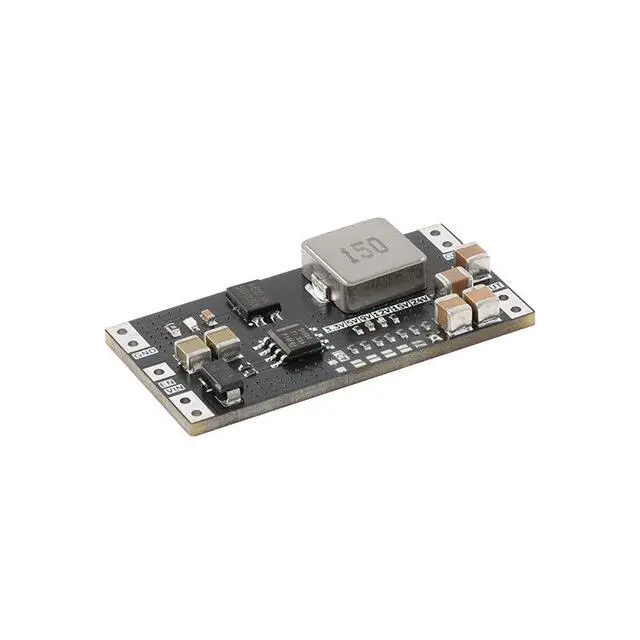

2pcs TPS54560 DC-DC Step-Down Module 60V to 24V 5A High Current Low Ripple Power Supply

Powerful & Reliable - The TPS54560 DC-DC Converter Module delivers exceptional performance with a wide input voltage range of 5.5V to 60V, making it Suitable for various applications such as electronics, industrial automation, and renewable energy systems. Its advanced design ensures up to 90% conversion efficiency at 12V-to-5V@1A, minimizing power loss and maximizing output stability. With an adjustable output voltage ranging from 3.3V to 24V, this module offers flexibility tailored to your specific needs.; Compact Design for Space-Saving - Measuring just 40mm x 20mm x 5.5 mm, this compact yet powerful converter fits ly into tight spaces without compromising functionality.

Equipped with an onboard red LED indicator, it provides real-time feedback on the module's operational status, ensuring peace of mind during use. For optimal performance under heavy loads, we r mmend adding a heatsink starting at 3A to protect critical components like the chip and Schottky diodes.; Smart Control for Enhanced Flexibility - This module features an intelligent EN pin that allows you to enable or disable the output via a high-level signal or suspension mode. By disconnecting all jumpers and soldering a 0603 resistor at the ADJ position, you can easily set non-standard voltages like 8V by calculating the resistance value using the formula R = 10 × (Vout - 0.8 )

/ 0.8 k. This feature empowers users to customize their power solutions effortlessly.; Low Ripple for Quality - Experience ultra-smooth operation with low output ripple of less than 25mV thanks to its 600KHz high-frequency switching technology. Unlike s who struggle to maintain consistent performance under light loads, our module achieves 90% efficiency even at 1A, ensuring reliable performance across a broad spectrum of conditions. Always remember to use oscilloscope ground springs during ripple testing to eliminate external interference.; Versatile Applications for Every Need - Whether you're powering LED strips, microcontrollers, or other sensitive devices, this versatile converter has got you covered.

With six fixed output options ( 3.3V, 5V, 9V, 12V, 15V, 24V) plus adjustable output capabilities, it adapts ly to diverse requirements. To ensure proper functioning, always verify that the input voltage exceeds the desired output by at least 2Vfor example, a 5V output requires a minimum input of 7V.
