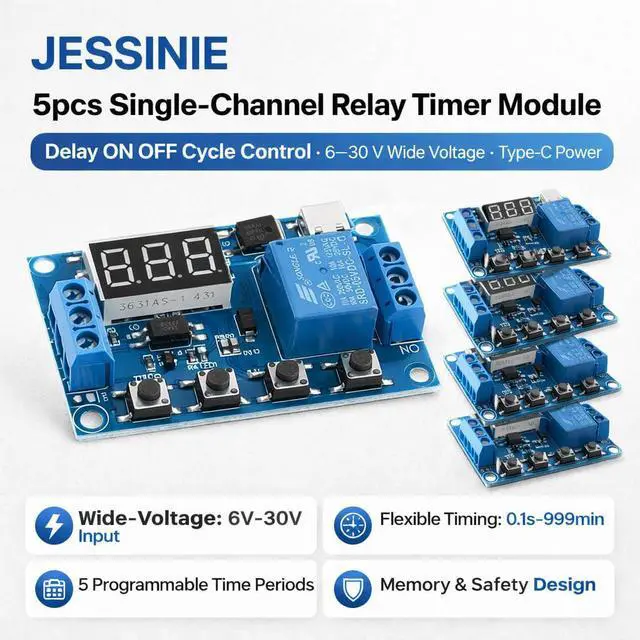

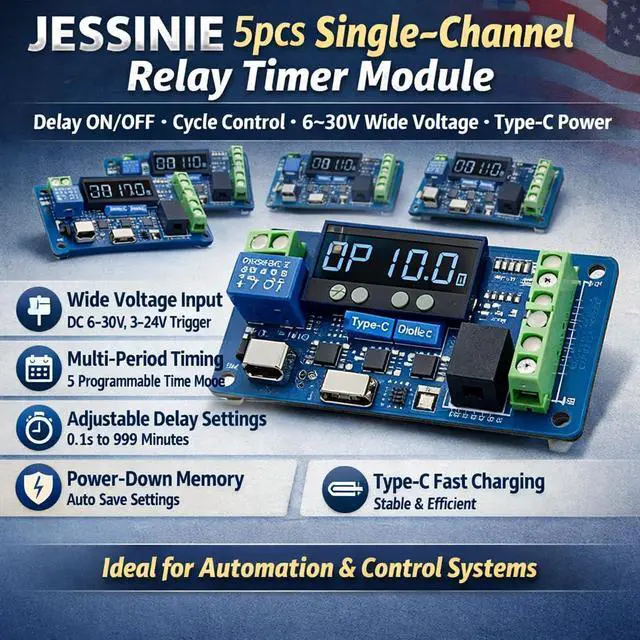

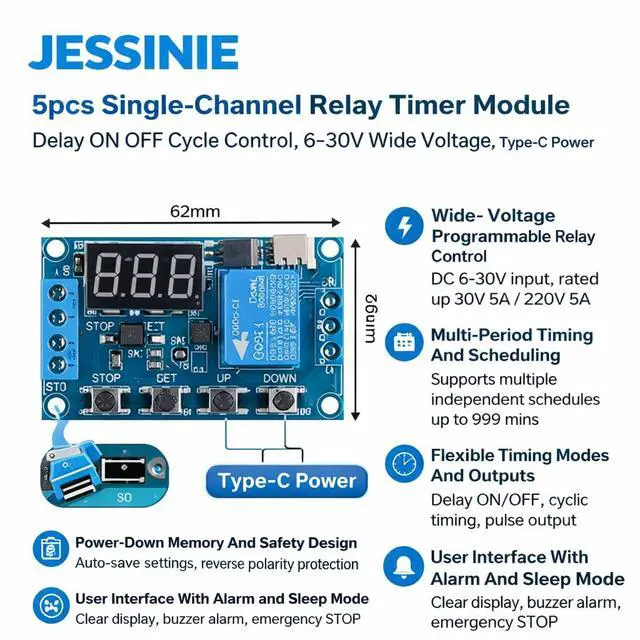

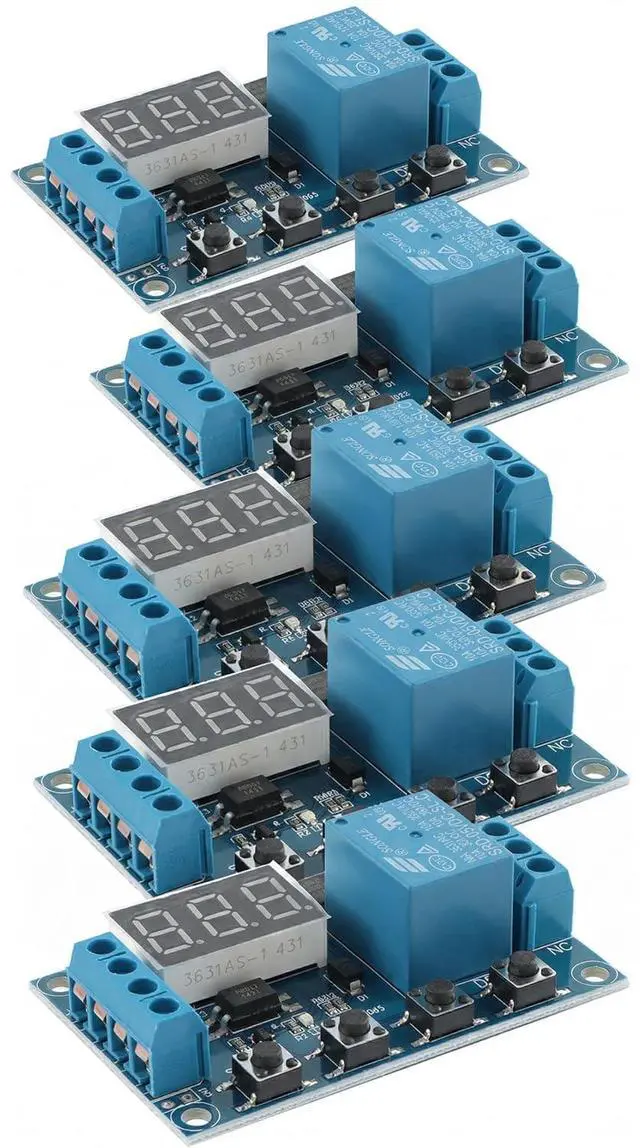

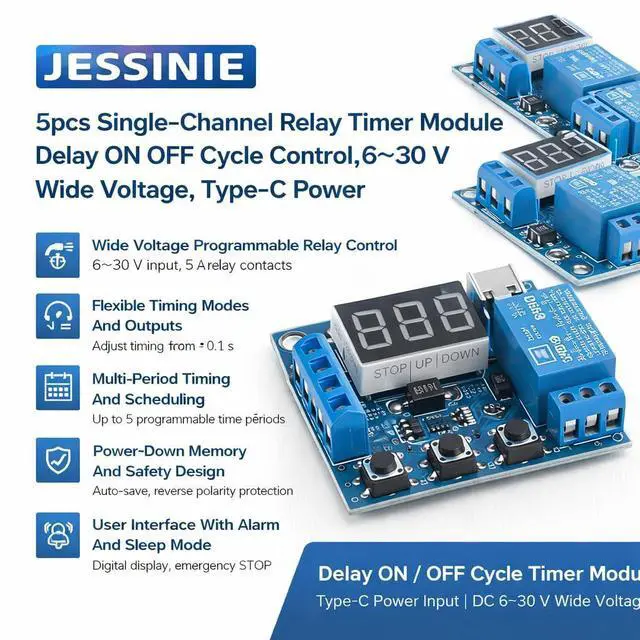

5pcs SingleChannel Relay Timer Module, Delay ON Off Cycle Control, 630 V Wide Voltage, TypeC Power
- Product Overview Programmable Digital Relay Timer Module with widevoltage input and TypeC interface. Supports multiperiod timing, delay ON/OFF, cycle control, pulse output, buzzer alarm, sleep mode, and powerdown memory. Suitable for automation, control panels, and DIY timing applications. 1. Product Parameters Module Type: Programmable relay timer switch Supply Voltage: DC 630 V (wide voltage) Trigger Level: Highlevel trigger 3.024 V Timing Range: 0.1 s to 999 min adjustable Time Periods: Up to 5 independent periods (PE1 to PE5) Relay Output: Passive contact, NO/NC control Load Capacity: DC 30 V 5 A / AC 220 V 5 A Output Modes: Latch or 1 s pulse Isolation: Optocoupler isolation Alarm: Builtin buzzer, enable/disable Memory: Poweroff parameter retention Sleep Mode: Auto display off after 5 min inactivity Interface: USB TypeC (power only) 2. Pin / Terminal Function Description IN+: DC power input positive IN: DC power input negative TRIG: Highlevel trigger input COM: Relay common terminal NO: Relay normally open contact NC: Relay normally closed contact 3. Common Questions & Answers (FAQ) Q1: Can I set multiple time schedules? A1: Yes, up to five independent time periods can be programmed. Q2: Does it support delay ON and delay OFF? A2: Yes, both delay ON, delay OFF, and cyclic timing are supported. Q3: Is the relay output powered? A3: No, it is a passive contact for switching external circuits. Q4: Will settings be lost after power off? A4: No, all parameters
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
WideVoltage Programmable Relay Control Programmable relay timer module with DC 6 V to 30 V widevoltage input; supports highlevel trigger from 3.0 V to 24 V; passive relay contacts rated up to DC 30 V 5 A or AC 220 V 5 A; suitable for flexible control circuits; MultiPeriod Timing And Scheduling Supports up to 5 independent time periods PE1 to PE5; each period can be enabled, disabled, or assigned different timing modes; allows daily, datebased, or rangebased schedules; ideal for complex timing tasks in control panels; Flexible Timing Modes And Outputs Timing range adjustable from 0.1 s to 999 min; supports delay ON, delay OFF, cyclic timing, and pulse output modes; relay can latch or output 1 s pulses; parameters OP, CL, and LOP are independent and easy to configure; PowerDown Memory And Safety Design All parameters are automatically saved after power loss; optocoupler isolation improves noise immunity; reverse polarity protection prevents damage from incorrect wiring; passive relay output ensures safe switching without internal voltage output; User Interface With Alarm And Sleep Mode Clear digital display with simple button operation; builtin buzzer alarm can be enabled or muted; emergency STOP key allows instant relay ON or OFF; automatic sleep mode turns off display after 5 minutes of inactivity, any key wakes it up
