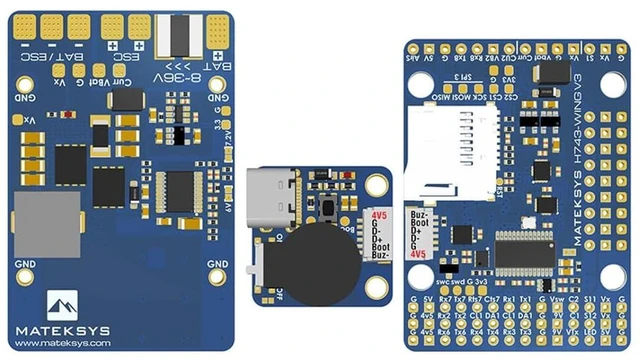

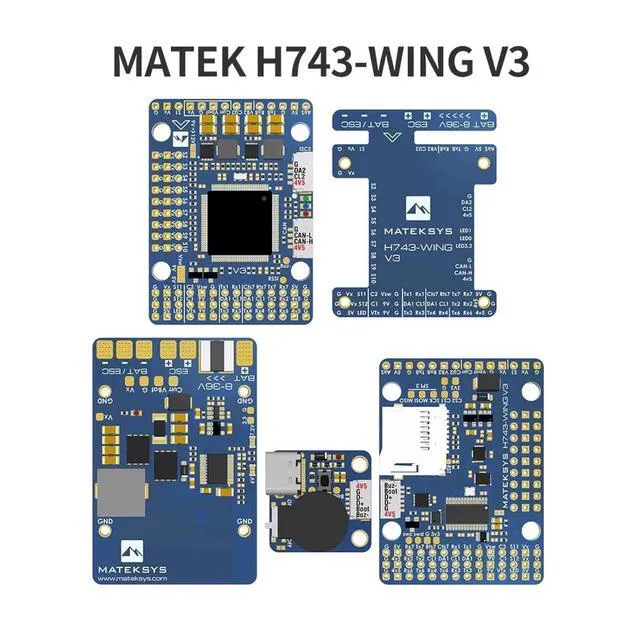

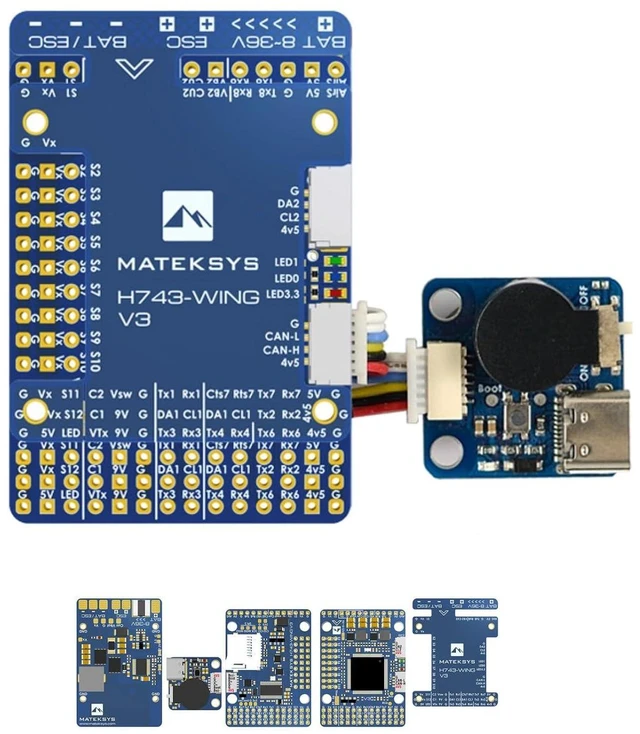

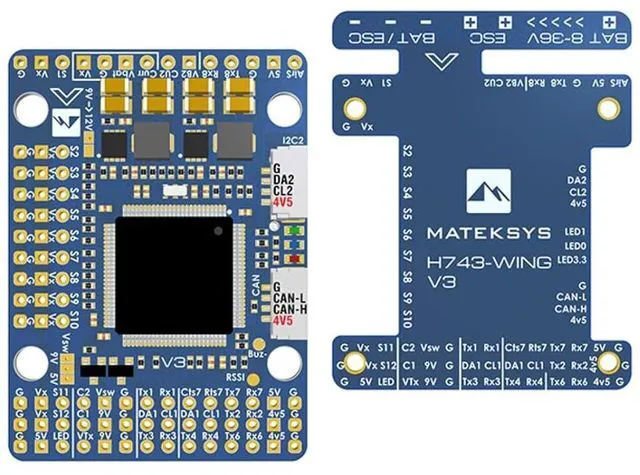

HTLNUZD Mateksys Wing V3 Flight Controller STM32H743VIT6 Built-in OSD Support Dual Camera INAV for RC FPV Airplane Fixed Wing Drones
Limited time offer, ends 09/19 By Kepler Forge
- POWERFUL PROCESSING: STM32H743VIT6 (480MHz) with 1MB RAM & 2MB Flash for seamless operation; PRECISION SENSORS: ICM42688-P + ICM42605 IMU & DPS310 Baro for accurate flight control; EXPANSIVE CONNECTIVITY: 7 UARTs, 13 PWM outputs & dual I2C for multiple peripherals; DUAL CAMERA READY: Switchable inputs with 5V/9V/12V power for flexible FPV configurations; ROBUST POWER: 8-36V input, 220A peak sensing & reliable BEC outputs for all components
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

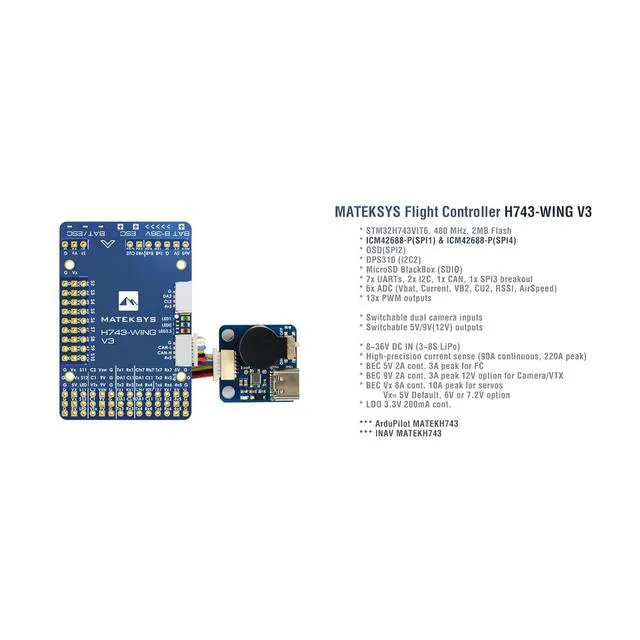

FC Specifications MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash IMUICM42688-P (V3) +ICM42605
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO) 7x Uarts (1, 2, 3, 4, 6, 7, 8) with built-in inversion. 13x PWM outputs(including "LED" pad) 2x I2C 1x CAN 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red) 1x SPI3 breakout USB/Beep Extender with Type-C(USB 2.0 ) Dual Camera Inputs switch 5V/9V (12V) for Camera/VTX power switchHigh-precision Current Sense (90A continuous, 220A peak)
Battery Voltage Sensor:
1K: 10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in
ArduPilot) ADC VB2 voltage divider:
1K: 20K
ADC AirSpeed voltage divider:
20K: 20K Static power 160mA@5V
FC Firmware ArduPilot (ChiBiOS): MATEKH743
INAV: MATEKH743 PDB
Input voltage range: 8~36V (3~8S LiPo) w/TVS protection 2x ESC power pads
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in
ArduPilot) Sense resistor: 90A continuous, 220A peak. BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Output 5.15 +/- 0.1V DC Continuous current 2 Amps, 3A Peak BEC 9V /12V output Designed for Video Transmitter, Camera, Gimbal ect. Continuous current 2 Amps, 3A Peak 12V option with Jumper pad BEC Vx output Designed for Servos
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO) 7x Uarts (1, 2, 3, 4, 6, 7, 8) with built-in inversion. 13x PWM outputs(including "LED" pad) 2x I2C 1x CAN 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red) 1x SPI3 breakout USB/Beep Extender with Type-C(USB 2.0 ) Dual Camera Inputs switch 5V/9V (12V) for Camera/VTX power switchHigh-precision Current Sense (90A continuous, 220A peak)
Battery Voltage Sensor:
1K: 10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in
ArduPilot) ADC VB2 voltage divider:
1K: 20K
ADC AirSpeed voltage divider:
20K: 20K Static power 160mA@5V
FC Firmware ArduPilot (ChiBiOS): MATEKH743
INAV: MATEKH743 PDB
Input voltage range: 8~36V (3~8S LiPo) w/TVS protection 2x ESC power pads
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in
ArduPilot) Sense resistor: 90A continuous, 220A peak. BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Output 5.15 +/- 0.1V DC Continuous current 2 Amps, 3A Peak BEC 9V /12V output Designed for Video Transmitter, Camera, Gimbal ect. Continuous current 2 Amps, 3A Peak 12V option with Jumper pad BEC Vx output Designed for Servos
