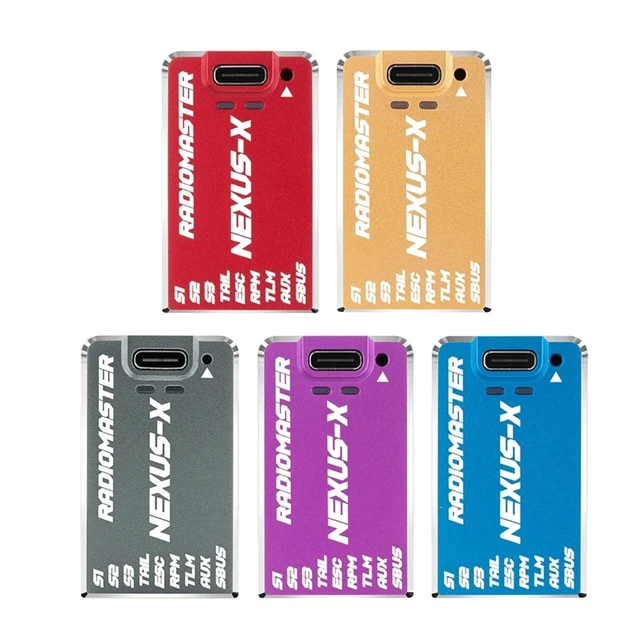

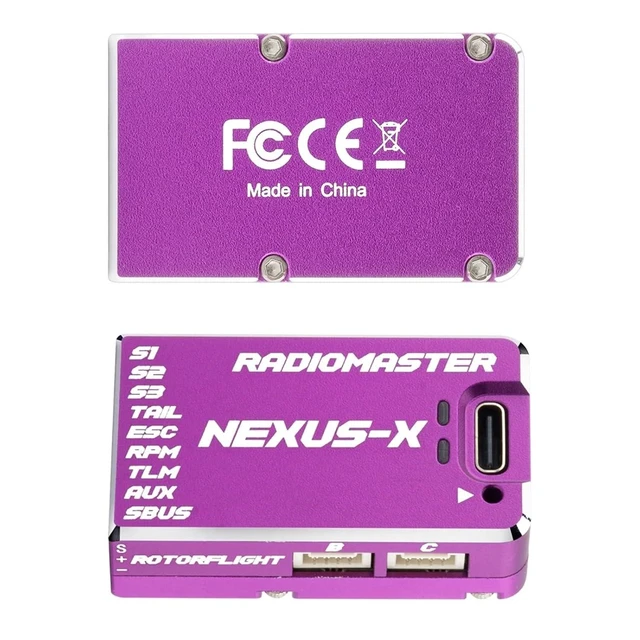

HTLNUZD Radiomaster Nexus-X Helicopter Flight Controller High-Precision, Reliable Performance for Smooth Flights (Purple -X)
Limited time offer, ends 09/19 By Kepler Forge
- OPTIMIZED PERFORMANCE WITH ROTORFLIGHT 2.2 Engineered for peak performance with Rotorflight 2.2. Features STM32F722 MCU and ICM42688P 6-axis sensor for superior flight dynamics; ADVANCED LOGGING & CONNECTIVITY 256MB flash for detailed logging/tuning. Multiple UART ports support CRSF, ELRS, S.BUS & more for seamless integration; ADVANCED LOGGING & CONNECTIVITY 256MB flash for detailed logging/tuning. Multiple UART ports support CRSF, ELRS, S.BUS & more for seamless integration; DURABLE DESIGN & VERSATILE POWERCNC aluminum case acts as heat sink. Supports 12V servos, 3.6V70V power, and 760s/1520s tail servos/ESCs; SAFETY & ACCESSIBILITYIncludes Rotorflight Rescue for emergencies. Isolated power minimizes noise; USB-C extender eases access. Optional case colors available
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification Firmware: Rotorflight 2.2

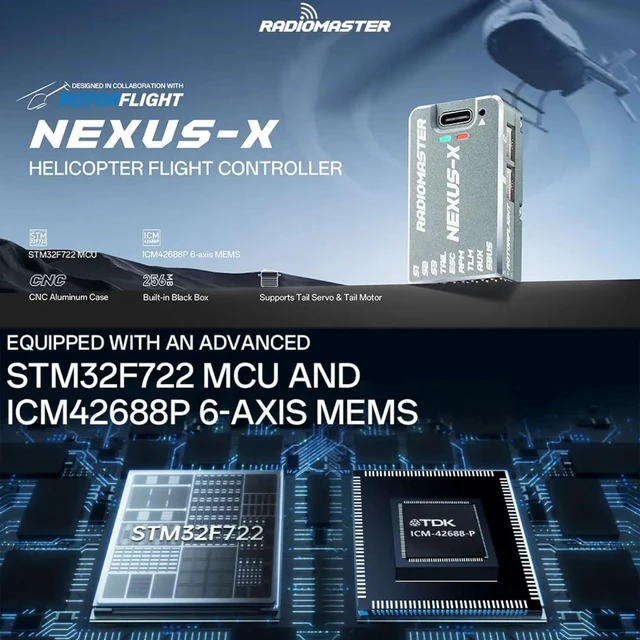

MCU: STM32F722RET6
Gyro (IMU): ICM42688P Flash Memory (Black Box.
IC): 256MB (W25N02KVZEIR)
Barometer: SPL06-001

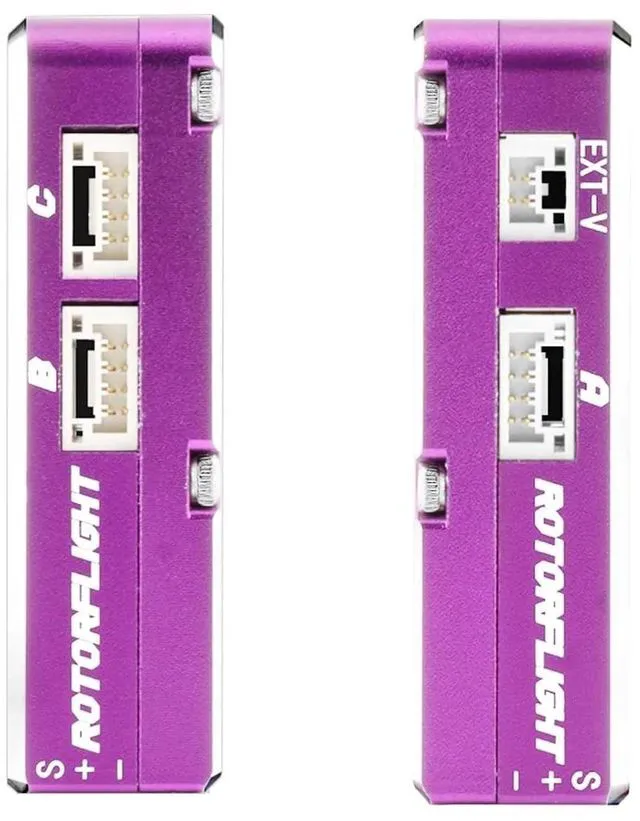

Uart: 5 - S. BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]

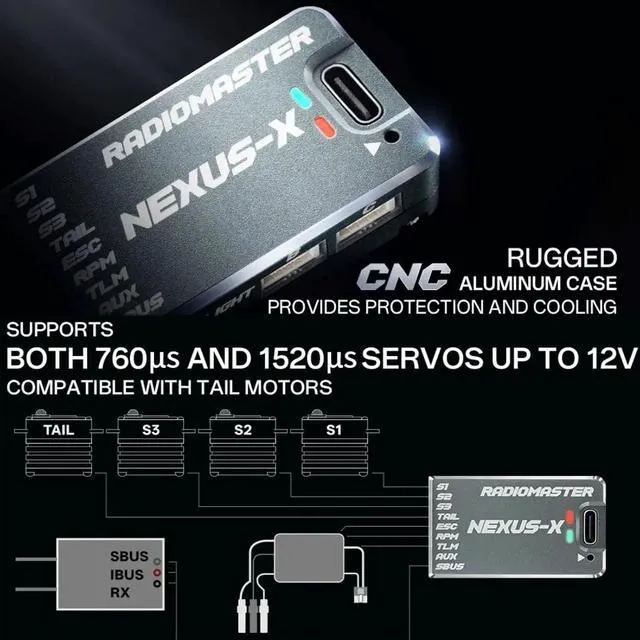

Servo: S1, S2, S3, TAIL Servos (Up to 12V )
Rpm Sensor: 1 -
FROM ESC FREQUENCY SENSOR AUX: 1
Ext voltage input (tele): 3.6 -70v
Receiver Support: CRSF, ELRS, GHOST, S. BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
Voltage Supply (DC): 5 - 16V A-B-C
Serial Port Power Output: 5V - 1.5A
Telemetry: S. BUS, HoTT, S. Port, MSP, EDGETX, ELRS
ESC: PWM, Oneshot, Multishot, Dshot
Support Tail ESC: 760s/1520s Servo
Support Tail Motor: Yes

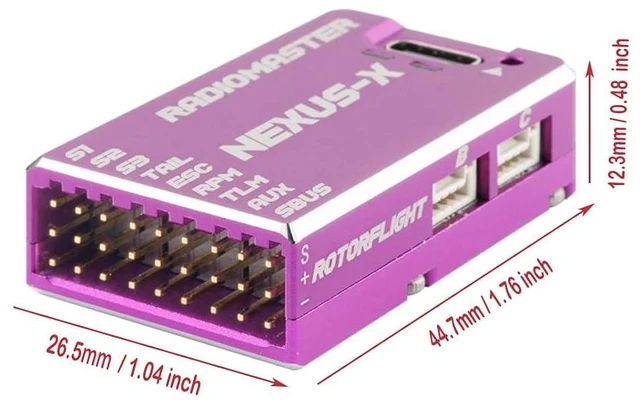

Demensions: 44.70 x 26.50 x 12.30 mm

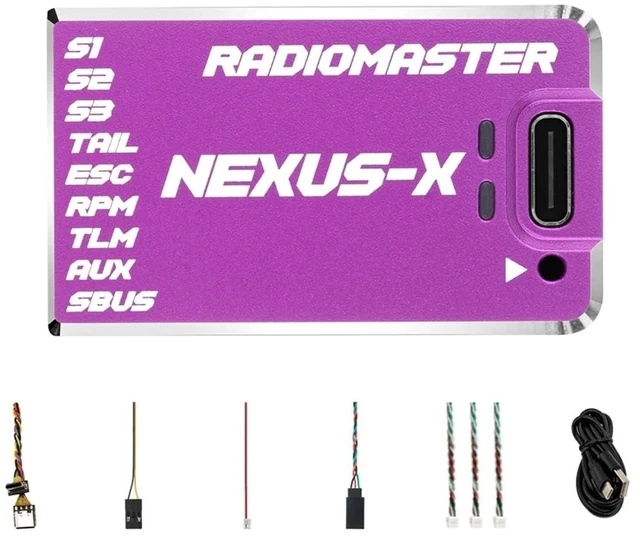

Weight: 20.6 g Package Includes 1 * NEXUS-X Helicopter Flight Controller 3 * JST-GH 4 Wire pigtail cables 1 * JST-GH to Servo Plug (dupont 3 pin connector) 1 * Ultra light-weight and flexible USB-C extender 1 * Type C extension cable 1 * JST-ZH 1.5 "DSM" Telemetry cable (Telemetry only does not support DSM Receivers) 1 * Voltage telemetry wire 3 * 3M double-sided mounting tape 2 * Heat shrink tubing 1 * Inventory Card
MCU: STM32F722RET6
Gyro (IMU): ICM42688P Flash Memory (Black Box.
IC): 256MB (W25N02KVZEIR)
Barometer: SPL06-001
Uart: 5 - S. BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
Servo: S1, S2, S3, TAIL Servos (Up to 12V )
Rpm Sensor: 1 -
FROM ESC FREQUENCY SENSOR AUX: 1
Ext voltage input (tele): 3.6 -70v
Receiver Support: CRSF, ELRS, GHOST, S. BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
Voltage Supply (DC): 5 - 16V A-B-C
Serial Port Power Output: 5V - 1.5A
Telemetry: S. BUS, HoTT, S. Port, MSP, EDGETX, ELRS
ESC: PWM, Oneshot, Multishot, Dshot
Support Tail ESC: 760s/1520s Servo
Support Tail Motor: Yes
Demensions: 44.70 x 26.50 x 12.30 mm
Weight: 20.6 g Package Includes 1 * NEXUS-X Helicopter Flight Controller 3 * JST-GH 4 Wire pigtail cables 1 * JST-GH to Servo Plug (dupont 3 pin connector) 1 * Ultra light-weight and flexible USB-C extender 1 * Type C extension cable 1 * JST-ZH 1.5 "DSM" Telemetry cable (Telemetry only does not support DSM Receivers) 1 * Voltage telemetry wire 3 * 3M double-sided mounting tape 2 * Heat shrink tubing 1 * Inventory Card
