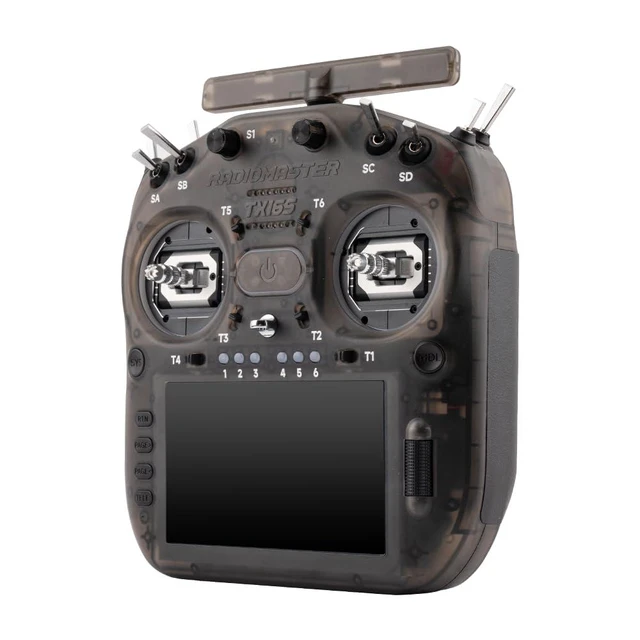

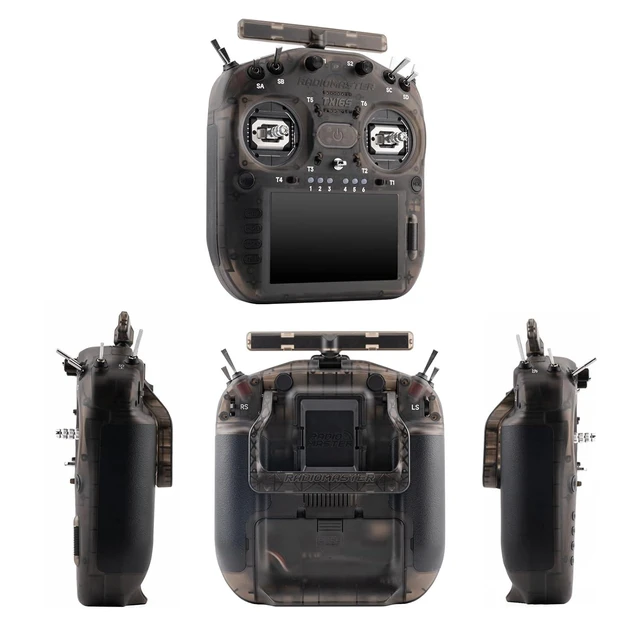

HTLNUZD Radiomaster TX16S MK3 RC Transmitter, ExpressLRS Gemini Dual Band 2.4GHz 900MHz, V6 Hall Gimbal 5" IPS Touchscreen RC Radio Controller
Limited time offer, ends 10/17 By Kepler Forge
- High Performance ChipBuilt-in STM32 H7 MCU delivers strong processing power for FPV RC radio controller stable operation; 5 Inch IPS Touchscreen800×480 high-definition display with auto backlight adjustment for indoor and outdoor viewing; V6 Hall GimbalQuad-bearing precision Hall sensor gimbal with customizable RGB light rings via LUA control; Dual Band ELRSIntegrated Gemini 2.4GHz & 900MHz dual band module with foldable antennas for steady signal; Premium Cooling & ExpandabilityAluminum heat sink + low-noise fan; support SD card storage and modular switch panels
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification Item: TX16S MK3 Radio
Controller Color: Black / Transparent Charcoal
Voltage Range: 6.6 - 8.4V
DC Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0. 0 or higher)
Built-in RF Module: ExpressLRS 2 x
LR1121 Frequency: ISM 2.4GH z and Sub-G 900MHz Number of
Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)
MicroSD Card Slot: Yes (card not included)
Built-in Flash: Yes
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules

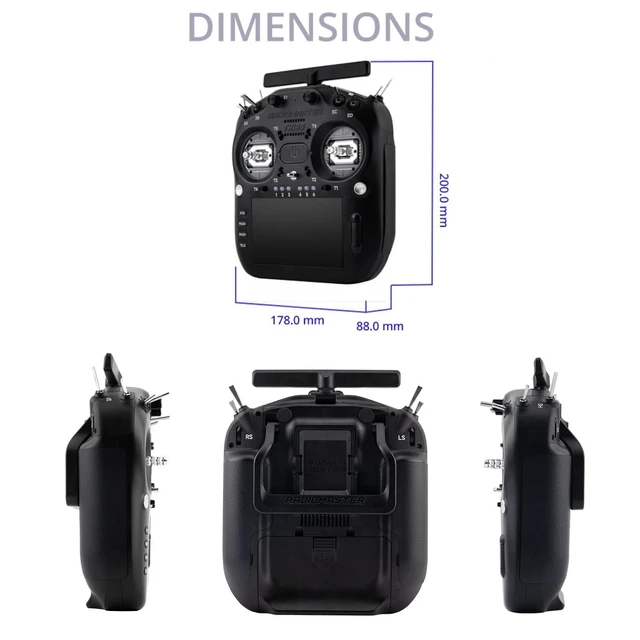

Dimensions: 200*178*88mm

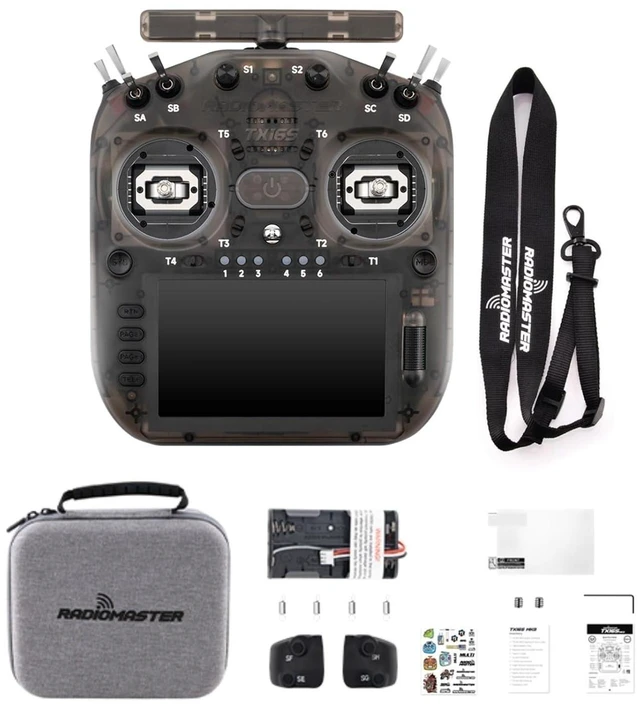

Weight: 813g (without battery) Package Includes 1 * TX16S MK3 Radio Controller 1 * TX16S MK3 Signature Carry Case 1 * 18650 Battery Tray 2 * Replacement Shoulder Panels 1 * Type-C Cable 1 * Screen Protector 1 * 1.5 mm Hex Wrench 4 * Low Tension Gimbals Springs 2 * Gimbal Stick Set Screws 1 * Nylon Neck Strap (Lanyard) 1 * RadioMaster Sticker Set 1 * TX16S MK3 Manual 1 * Inventory Card
Controller Color: Black / Transparent Charcoal
Voltage Range: 6.6 - 8.4V
DC Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0. 0 or higher)
Built-in RF Module: ExpressLRS 2 x
LR1121 Frequency: ISM 2.4GH z and Sub-G 900MHz Number of
Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)
MicroSD Card Slot: Yes (card not included)
Built-in Flash: Yes
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules
Dimensions: 200*178*88mm
Weight: 813g (without battery) Package Includes 1 * TX16S MK3 Radio Controller 1 * TX16S MK3 Signature Carry Case 1 * 18650 Battery Tray 2 * Replacement Shoulder Panels 1 * Type-C Cable 1 * Screen Protector 1 * 1.5 mm Hex Wrench 4 * Low Tension Gimbals Springs 2 * Gimbal Stick Set Screws 1 * Nylon Neck Strap (Lanyard) 1 * RadioMaster Sticker Set 1 * TX16S MK3 Manual 1 * Inventory Card
