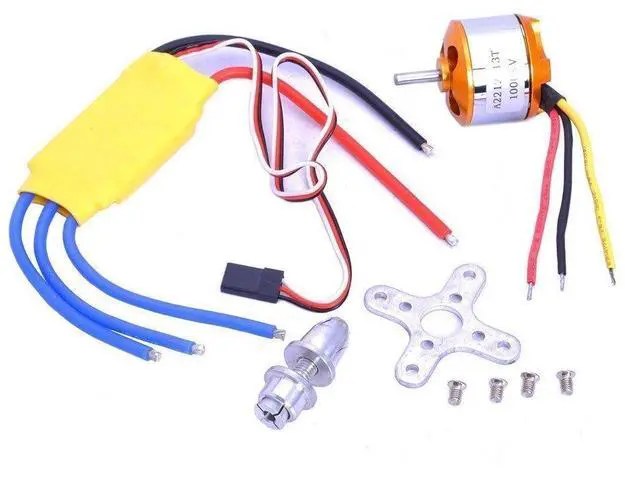

HappyCow A2212 1000KV Outrunner Brushless Motor + 30A ESC Electric Speed Controller Set for RC Aircraft Plane Multi-Copter Quadcopter
Limited time offer, ends 09/19 By Kepler Forge
- Mode: A2212; Motor KV: 1000KV; Thrust: 650-680g; Max Efficiency: 80%; Max Efficiency Current: 4-10A (>75%); ESC:30A
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: A2212
brushless motor: -
Mode: A2212 -
KV: 1000 -
Max Efficiency: 80% -
Max Efficiency Current: 4-10A (>75%) -
Current Capacity: 12A/60s -
No Load Current:
10V: 0.5A - No.
Of Cells: 2-3 Li-Poly -
Motor Dimensions: 27.5 x 30mm -
Shaft Diameter: 3.17 mm -
Weight: 48g

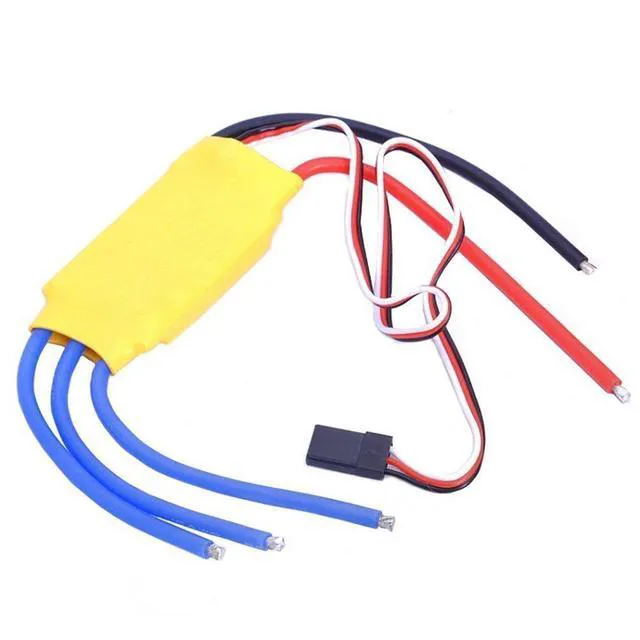

30A speed controller: -
Output: Continuous 30A, Burst 40A up to 10 Secs.
- Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
- BEC: 1A / 5V (Linear mode).
- Max Speed: 210, 000rpm for 2 Poles BLM, 70, 000rpm for 6 poles BLM, 35, 000rpm for 12 poles BLM.
- (BLM: BrushLess Motor) -
Size: 45mm (L) * 24mm (W) * 11mm (H).
- Weight: 25g.

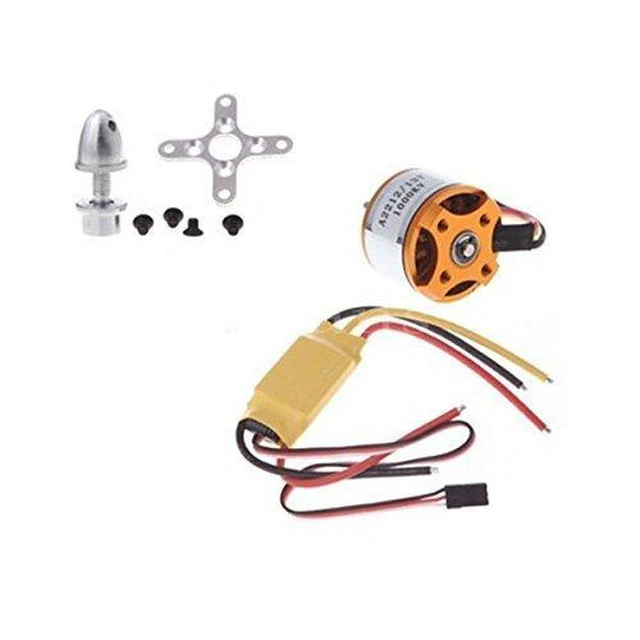

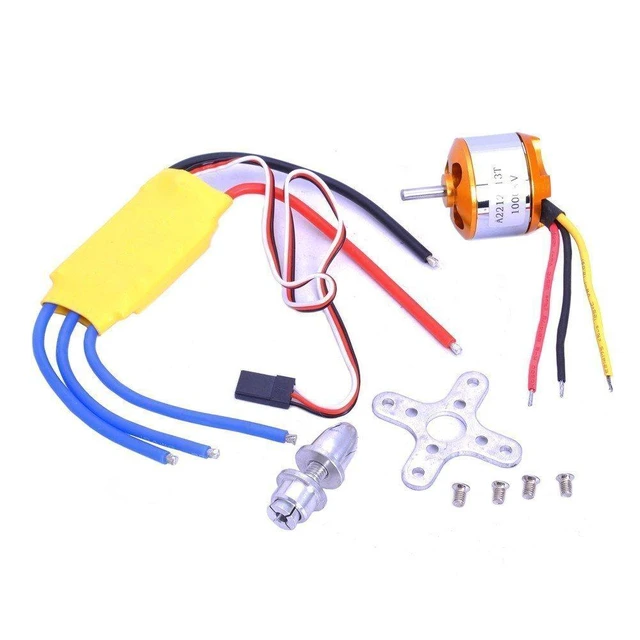

Package includes: 1 x A2212 1000KV Brushless Outrunner Motor with Mounts 1 x 30A BSC Brushless speed controller If any questions, please do not hesitate to contact us and we will try our best to help you!
brushless motor: -
Mode: A2212 -
KV: 1000 -
Max Efficiency: 80% -
Max Efficiency Current: 4-10A (>75%) -
Current Capacity: 12A/60s -
No Load Current:
10V: 0.5A - No.
Of Cells: 2-3 Li-Poly -
Motor Dimensions: 27.5 x 30mm -
Shaft Diameter: 3.17 mm -
Weight: 48g
30A speed controller: -
Output: Continuous 30A, Burst 40A up to 10 Secs.
- Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
- BEC: 1A / 5V (Linear mode).
- Max Speed: 210, 000rpm for 2 Poles BLM, 70, 000rpm for 6 poles BLM, 35, 000rpm for 12 poles BLM.
- (BLM: BrushLess Motor) -
Size: 45mm (L) * 24mm (W) * 11mm (H).
- Weight: 25g.
Package includes: 1 x A2212 1000KV Brushless Outrunner Motor with Mounts 1 x 30A BSC Brushless speed controller If any questions, please do not hesitate to contact us and we will try our best to help you!
