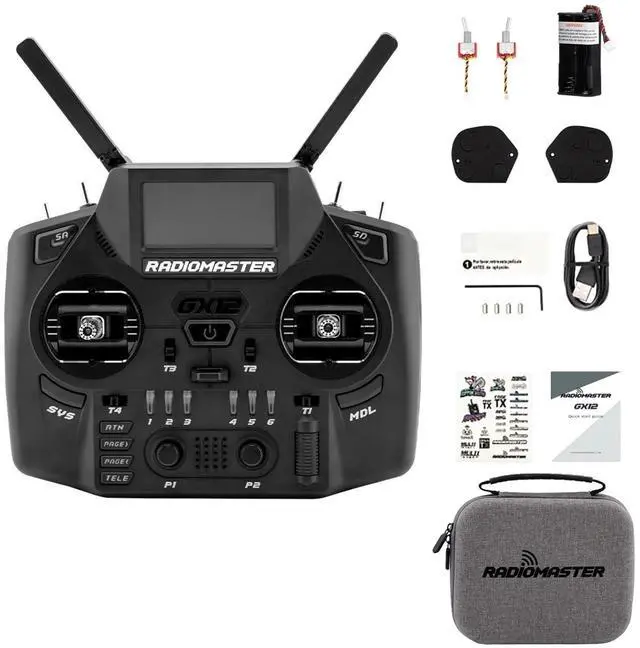

HTLNUZD Radiomaster GX12 ExpressLRS Dual-Band Gemini Xross Band Radio Controller with 3D Digital Hall Gimbal 2.4GHz/915MHz for FPV Drones RC Aircraft (GX12 M2)

Introducing the GX12 Radio Controller, a groundbreaking fusion of cutting-edge technology from ExpressLRS and EdgeTX. The GX12 is the first radio to feature ExpressLRS Gemini-XROSSBAND (GEM-X), allowing for simultaneous transmission on both 2.4GH z and 915MHz, ensuring unmatched interference rejection.

Specifications

:
Color: Black
Size: 183*148*78mm
Weight: 573g
Frequency: 2.400GH z and Sub-G 900MHz
Internal RF: ELRS 2.4GH z / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Antenna: Dual folding 2.4GH z/ Sub-G 900MHz Omni directional
RF: (Dual 1, 000mW | Dual band XROSSBAND ELRS)
Voltage Range: 6.6 - 8.4V
DC Current: 390mA - 1000mA (Depending on Rf output)
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Charging: 2S Smart
Balance Charging Connectivity: USB-C
Display: 128*64 Monochrome
OLED display Gimbal: GX01 1000Hz, 3D Digital CNC
Hall Effect Gimbal with folding sticks
Gimbal Sticks: 3mm
External Module: Nano / Crossfire compatible
Upgrade Method: USB / EdgeTX Companion PC software
Memory: 512Mb Integrated
Flash Associated Products: Radio Multi-stand *1 18650 Battery 3200mAh 3.7V *2 21700 5000mAh Battery *1 DBR4 Dual Band Xross Gemini ExpressLRS Receiver *1 XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver *1 Package Includes 1 * GX12 Controller 1 * Signature Carry Case 1 * 18650 Battery Tray 2 * Replacement Switch Panels 6 * Switch Delete Plugs 1 * Type-C Cable 1 * Screen Protector 1 * 1.5 mm Hex Wrench 4 * High Tension Gimbals Springs 1 * 2 Position Switch 1 * Momentary Switch 1 * RadioMaster Sticker Set 1 * GX12 Manual
