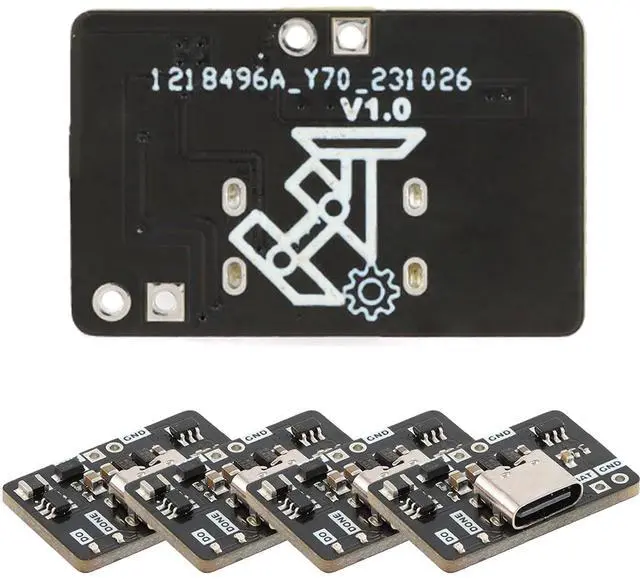

5pcs XL-MUL9V Li Battery to 9V Output Module,Type-C Charging Board to 9V Output
- Compact and Reliable Designed with a tiny 24.75×15.82mm size, this 9V power adapter fits Suitablely into your multimeters battery compartment without taking up too much space. Whether you're working on a DIY project at home or troubleshooting electrical issues on the go, its ultra-compact design ensures convenience and portability. With an intelligent dual-mode power supply that supports both Li-ion battery boost and Type-C direct supply (4.7-6V input), you can rely on it anytime, anywhere.; Long-Lasting Performance This rechargeable 9V adapter offers up to 500 charge cycles using standard 18650 batteries, significantly reducing costs compared to disposable batteries. Its ultra-low quiescent current of just 160A ensures long battery life, keeping your multimeter powered for over two years in standby mode. Suitable for those who need consistent performance even during extended periods of non-use.; Versatile and Safe Equipped with a pin definition safety feature, this 9V adapter ensures secure connections by preventing reverse polarity and ensuring proper grounding. The Type-C charging input supports standard 5V power supplies, while the BAT+ terminal requires a protected Li-ion battery to avoid damage. Additionally, the intelligent dual-LED indicator provides clear feedbackred for charging, green for full charge, and no light when disconnectedmaking it easy to monitor the status of your device.; Cold Weather Ready Unlike traditional dry batteries that fail in co...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
Features Dual-mode power supply: Li-ion battery boost or Type-C direct supply ( 4.7 -6V input)
Ultra-low power consumption: quiescent current of only 160A (battery standby2 years)
Ready to use: 24.75 × 15.82 mm ultra-small size (suitable for all multimeter battery compartments) Intelligent charging
Dual-LED indicator: red charging/green full/unconnected battery powering Parameters Unique Version V 1.0
Output Capacity: 9V--100mA (Continuous)
Charging Current: 300mA (MAX)
Operating Temperature: -20°C~65°C Pin Function Safety Warning Pin Definition (Dull-proof Design) Type-C Charging/Power Input Only support 5V power supply (disable fast charger header) BAT+ Li-Ion Battery Positive terminal must be connected to the battery with protection plate OUT+ 9V Output Positive Terminal Reverse connection must burn the multimeter! GND Unified Ground All negative terminals are interconnected.
Q1: Can it be used for other 9V devices?
Q2: Is the red light always on faulty?
Q3: The measurement error of multimeter b mes bigger after modification? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 317 4.7 out of 5 stars 105 4.9 out of 5 stars 22 4.7 out of 5 stars 105 4.9 out of 5 stars 9 4.7 out of 5 stars 105 4.8...
Features Dual-mode power supply: Li-ion battery boost or Type-C direct supply ( 4.7 -6V input)
Ultra-low power consumption: quiescent current of only 160A (battery standby2 years)
Ready to use: 24.75 × 15.82 mm ultra-small size (suitable for all multimeter battery compartments) Intelligent charging
Dual-LED indicator: red charging/green full/unconnected battery powering Parameters Unique Version V 1.0
Output Capacity: 9V--100mA (Continuous)
Charging Current: 300mA (MAX)
Operating Temperature: -20°C~65°C Pin Function Safety Warning Pin Definition (Dull-proof Design) Type-C Charging/Power Input Only support 5V power supply (disable fast charger header) BAT+ Li-Ion Battery Positive terminal must be connected to the battery with protection plate OUT+ 9V Output Positive Terminal Reverse connection must burn the multimeter! GND Unified Ground All negative terminals are interconnected.
Q1: Can it be used for other 9V devices?
Q2: Is the red light always on faulty?
Q3: The measurement error of multimeter b mes bigger after modification? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 317 4.7 out of 5 stars 105 4.9 out of 5 stars 22 4.7 out of 5 stars 105 4.9 out of 5 stars 9 4.7 out of 5 stars 105 4.8...
