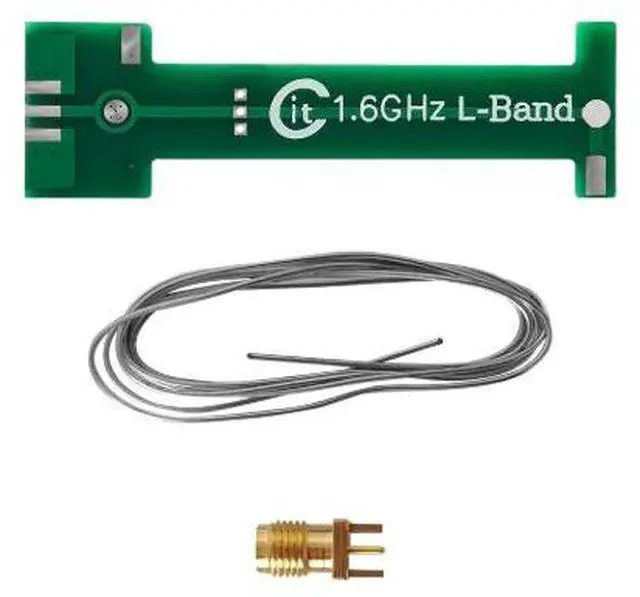

1.6G Four-arm Helical Antenna - Space, Meteorological, Positioning, Relay Antenna Components
- Characteristics
- Parameters
- Antenna impedance: 50 ohms
- Working frequency band: 1.4 - 1.68 GHz
- Size: 23mm * 78mm * 1.6mm
- Weight: 8.4g
- Antenna connector: SMA (female)
- Typical application
- Aerospace, meteorology, positioning, relay, and many other fields.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The four-arm helical structure antenna is composed of four helical arms, each with a length that is an integer multiple of the quarter-wavelength. The current amplitudes at the feed ends of the four helical arms are equal, and the phases differ by 90° successively. It has a heart-shaped radiation pattern, excellent front-to-back ratio, and outstanding wide-beam circular polarization characteristics, making it highly suitable for use as a receiving antenna for satellite positioning systems.
