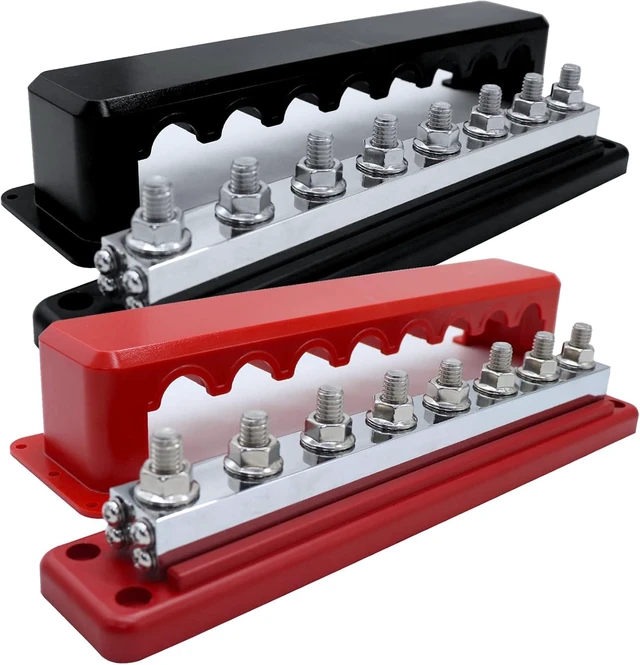

2 Pcs 600 A High Current Copper Bus Bar 300V AC / 48V DC 8 Way 3/8 inch (M10) Studs 8#8-32 Screws Electrical Terminal Ground Distribution Block Battery Buss Bars with Cover (Red & Black)
- Current Rating 600 A
- Connector Type Auxiliary
- Number Of Contacts 8
- Mounting Type DIN Rail Mount
- Material Acrylonitrile Butadiene Styrene (ABS), Sta
- Color Red&Black
- Brand AMOMD
- Voltage 48 volts_of_direct_current
- Number Of Poles 8
- Product Dimensions 2.01"W x 2.01"H
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
- Bus Bar:A reinforced electrical connection method with high-power modular connection structural components;It improves electrical continuity and integrity by centralizing the management of multiple electrical devices

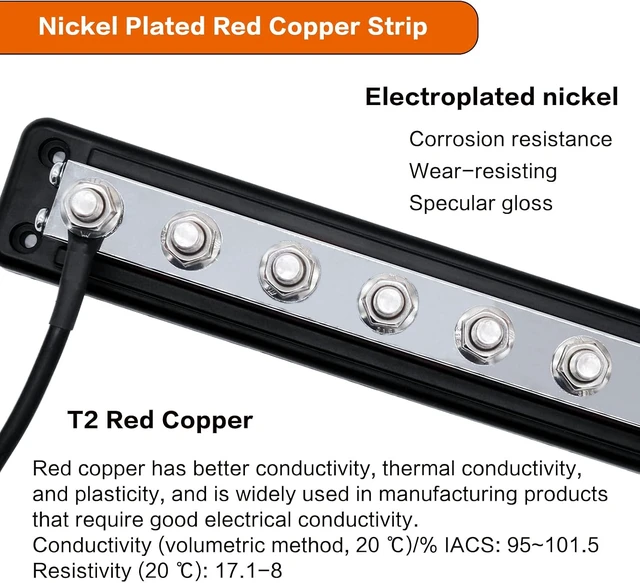

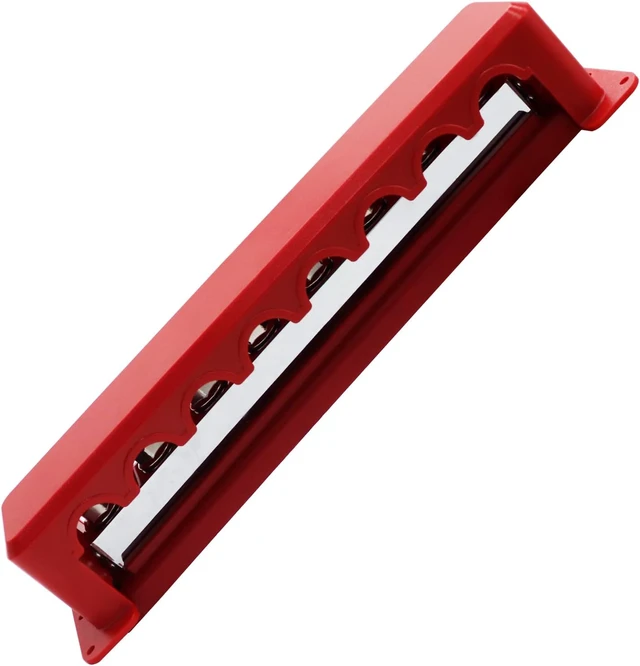

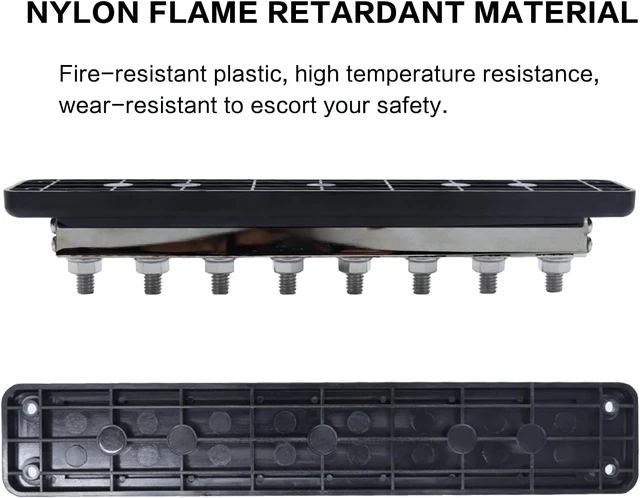

- Feature:0.748 inch/19mm thick nickel-plated copper distribution block,with high conductivity suitable for your high-power applications;The base and cover made of flame-retardant nylon glass fiber reinforced material ensure mechanical strength and durability

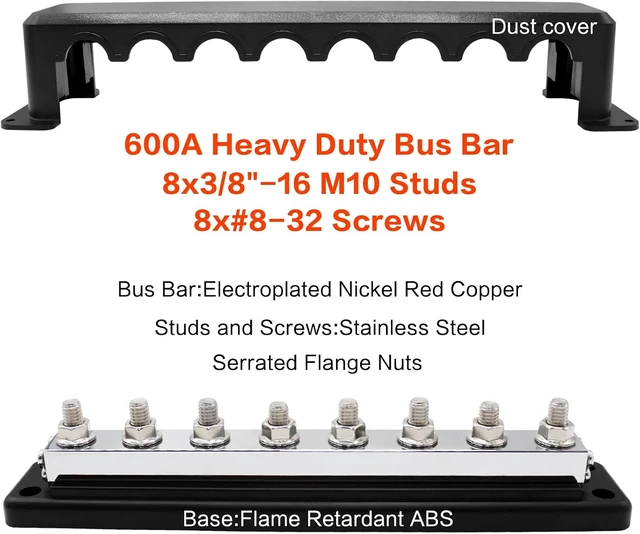

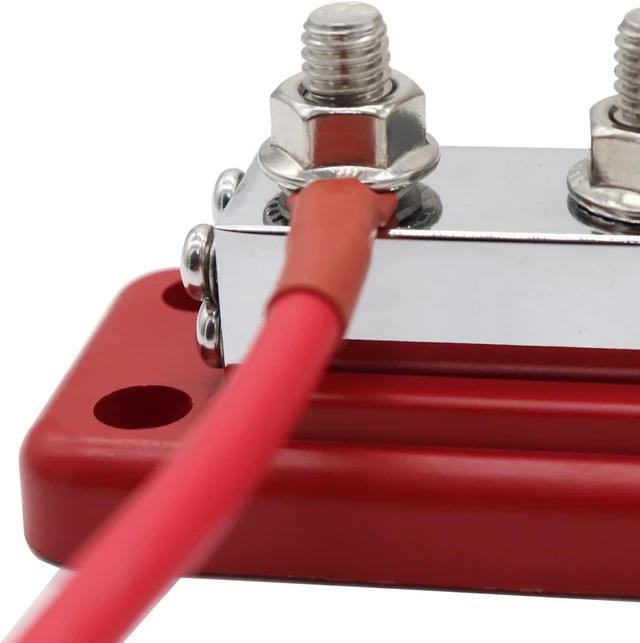

- Terminals:AMOMD rated current 600A busbar with M10 (3/8 inch) terminal studs (also applicable to M8) and 8 #8-32 screws ideal for multiple batteries wiring configurations,stainless steel material can enhance their corrosion resistance and rust resistance
- Specifications:Bus Bar Dimensions (L x W x H):289 x 51x 51 mm (11.37 inch x2.01 inch x2.01 inch);Stud size: M10 (3/8 inch); Max Operating Voltage:DC 48 V;Max Continuous Amp: 600 A

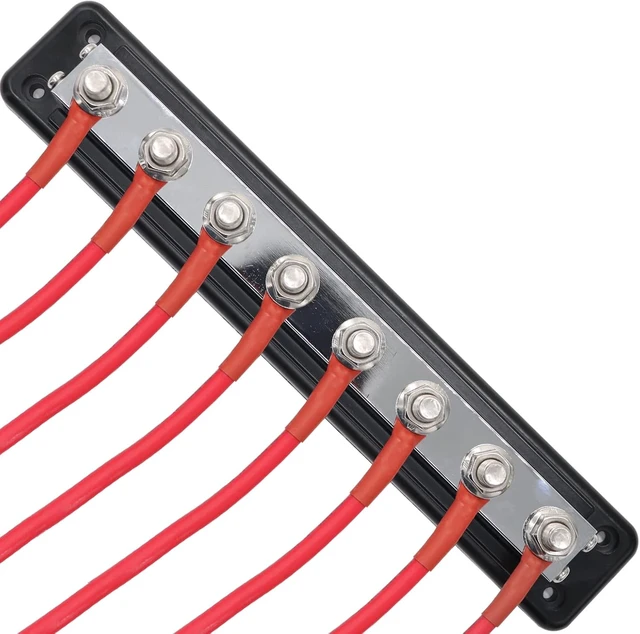

- Application:The 600 A Terminals busbar is universally wiring your custom power bank,camp trailer project,car,stereo setup,RV,vehicle,trucks,marine,yacht,fresh or salt water boats, solar panel to consolidate, distribute or protect your electrical system
