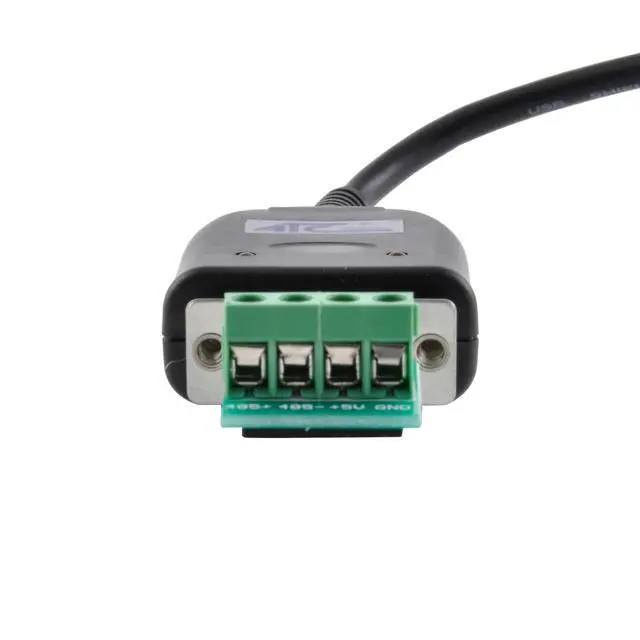

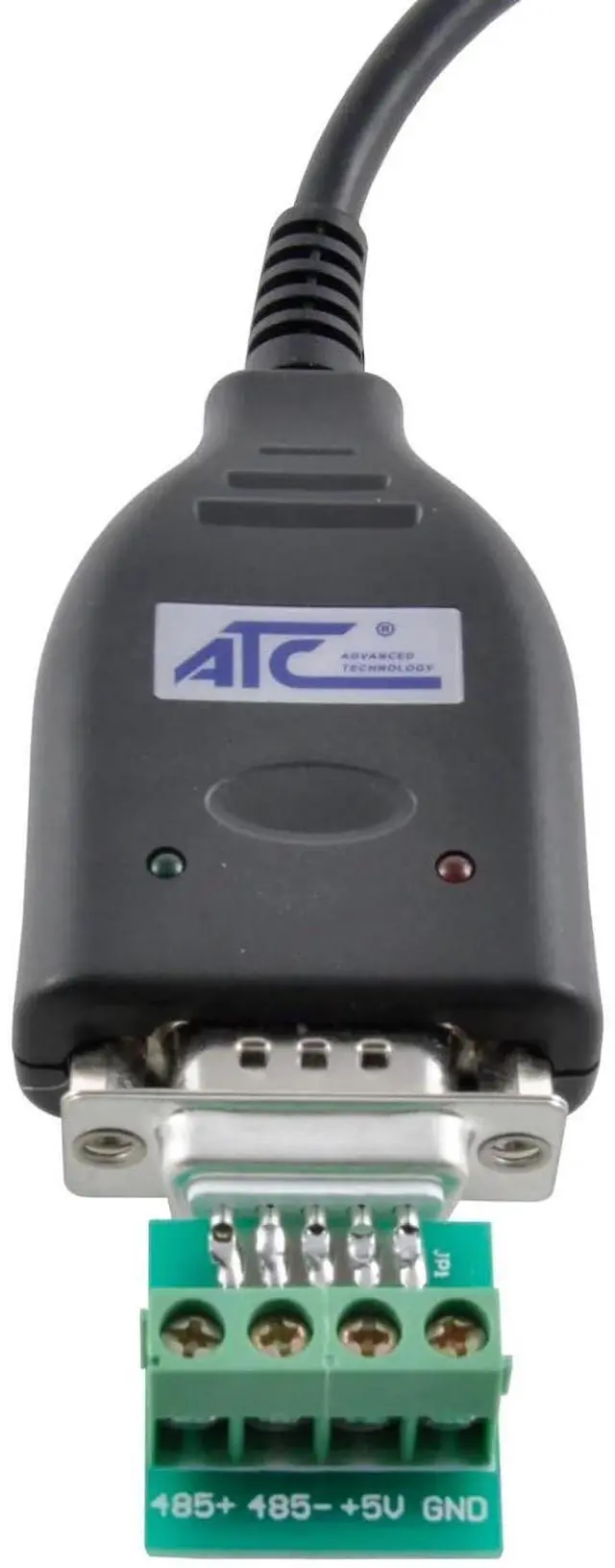

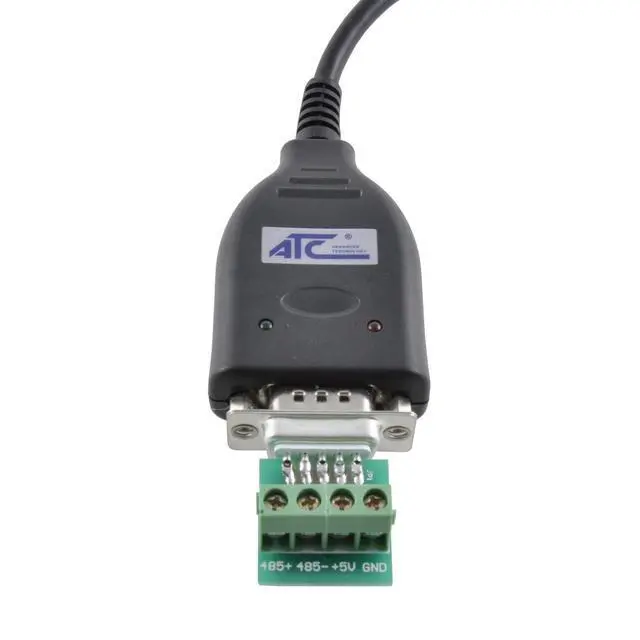

ATC-820 USB to RS485 Converter
- RS485 Bus protection 600W
- Transfer rate up to 1 Mbaud
- Interfaces : RS485 half duplex, auto flow control and USB 1.1 and 2.0 compliant
- TX & RX data indicators
- CPU : Uses the FTDI serial to USB chip
- Power Consumption <100 mA
- 100 cm cable length
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The ATC-820 is a high speed USB to RS485 adapter. The ATC-820 uses a DB9 male connector and supports baud rates from 300 to 1M baud. The USB interface is 1.1 and 2.0 compatible and uses the FTDI high speed serial to USB chip.
