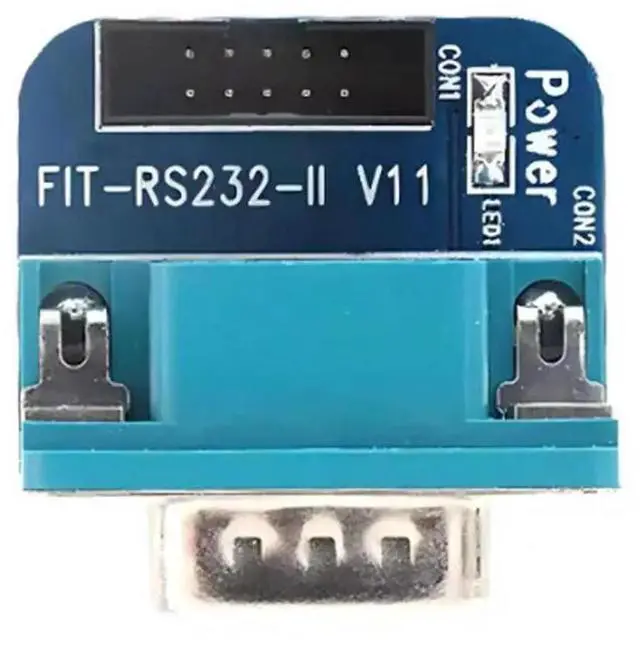

AJMRTC TTL to RS232 Serial Port Conversion Board Module, Logic Level Serial Signal Converter for Embedded Debugging, Industrial Equipment Serial Communication and Hardware Testing Projects

AJMRTC TTL to RS232 serial port conversion board realizes mutual conversion between TTL logiclevel signals and RS232 standard serial signals. It connects TTLbased microcontroller boards, embedded modules and other lowvoltage logic hardware to traditional RS232equipped industrial devices. The module completes level shifting to match different serialport electrical standards and ensures normal data interaction between mismatched interface hardware. Compact PCB size brings flexible deployment options for laboratory bench debugging or embedding inside equipment enclosures. Clear pinheader terminals simplify wiring work. It is widely used for embedded hardware debugging, oldmodel industrial equipment parameter setting and serialdata acquisition tasks. Please confirm signal voltage level and wiring sequence before poweron to prevent module damage.

1. Brand: AJMRTC
2. Module Type: TTL to RS232 Serial Port Level Conversion Board
3. Core Function: TTL LogicLevel Signal Convert to RS232 Serial Signal
4. Interface: TTL Pin Header, RS232 Serial Terminal
5. Application: Embedded Development, Industrial Device Debugging, Serial Communication Testing
6. Installation: Hardwired Module for Bench or Internal Equipment Mounting
