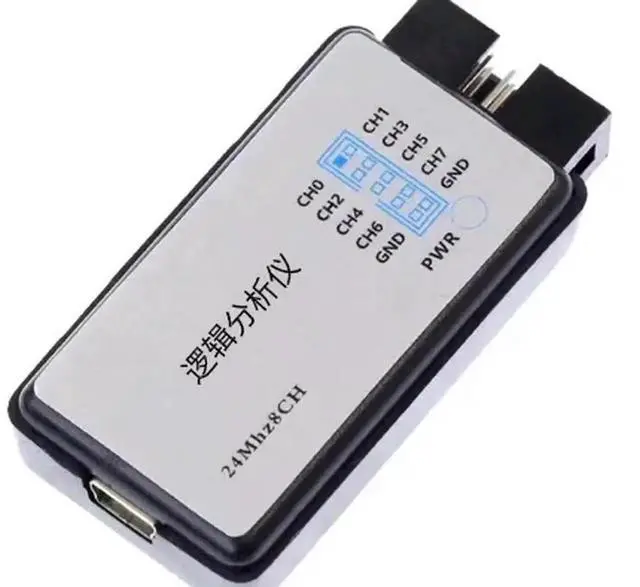

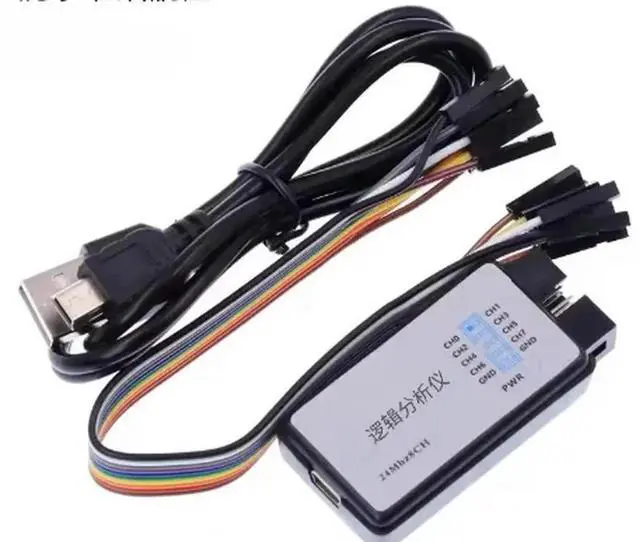

AJMRTC Complete USB Logic Analyzer Kit, Digital Signal Debugging Tool for Microcontroller & Programmable Logic Device, MultiChannel Signal Capture for Embedded Development and Hardware Troubleshootin
- - Fullpackaged USB logic analyzer set for microcontroller and programmablelogicdevice debugging tasks
- - USB plugandplay design connects to PC to capture multichannel digital waveforms for signal observation
- - Supports UART, I2C, SPI, PWM protocol decoding for MCU, FPGA and CPLD embedded firmware development
- - Supplied with test jumpers and probe accessories for fast breadboard wiring and convenient signal sampling
- - Practical lab tool for engineers, students and makers for hardware verification, fault locating and prototype testing
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC complete USB logic analyzer kit is a compact digital signal debugging solution for embedded hardware development. This full set contains analyzer main unit and necessary connection accessories. Via USB connection to PC, it captures multichannel digital waveforms and displays timing data on supporting software. It decodes mainstream digital communication protocols, helping developers inspect signal integrity, find timing errors and locate hardware faults. Included test jumpers support quick hookup on breadboards and target circuits. Widely used for microcontroller debugging, programmablelogicdevice prototype verification and electronic maker experiments. Please confirm target circuit voltage matches device specification before testing to avoid hardware damage.
SpecificationsProduct Type: Complete USB Logic Analyzer Kit Interface: USB Core Function: Digital Signal Capture, Waveform Observation, Protocol Decoding Supported Protocols: UART, I2C, SPI, PWM Application: Microcontroller, Programmable Logic Device, Embedded Secondary Development Kit Includes: Main Module, Test Jumpers & Probe Accessories Suitable Users: Electronic Engineers, Students, Hardware Makers Reminder: Verify signal voltage compatibility prior to operation
