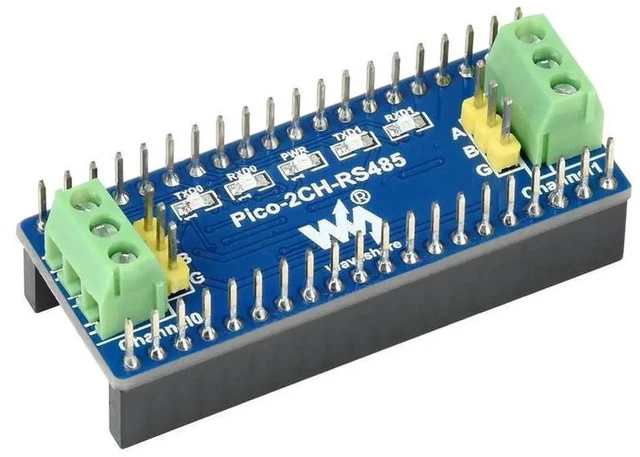

AJMRTC 2Channel UART To RS485 Module for Raspberry Pi Pico, SP3485 Chip Converter Board, Standard Pico Pin Header Supports Pico Series for Industrial Serial Communication MCU Debugging Hardware Devel
- 2channel UARTtoRS485 conversion expansion board built for Raspberry Pi Pico series, equipped with SP3485 chip for dual independent RS485 serial signal conversion
- Comes with standard Picocompatible pin header, directly matches Raspberry Pi Pico and Picoseries host pin layout for quick plugin assembly
- Converts TTLUART logic signal into differential RS485 level, supports longdistance stable serial transmission in complex industrial field environments
- Dualchannel design allows simultaneous connection of two sets of RS485 peripherals, ideal for data acquisition, equipment monitoring and multinode communication projects
- Compact PCB form factor saves enclosure space; verify pin definition before poweron to prevent hardware damage; Pico board is not included
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

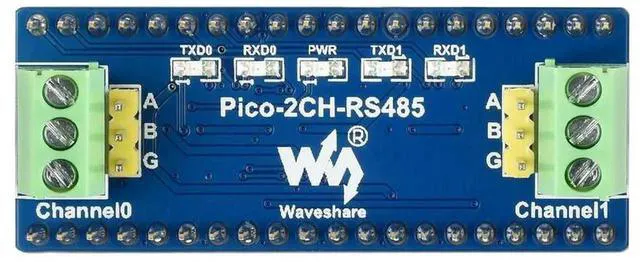

AJMRTC 2Channel UART To RS485 module is professional serial expansion board for Raspberry Pi Pico and Picoseries singleboard hosts. Adopting SP3485 transceiver chip, this module converts two groups of TTL UART signals into standard RS485 differential signals, realizing longdistance antiinterference serial communication with industrial sensors, PLC controllers and legacy automation equipment. It uses standard Pi Pico header, perfectly aligning with Pico series pin positions for convenient installation without complex wiring modification. Dual independent channels work separately without signal conflict, meeting multidevice access requirements in embedded development scenarios. Smallsize PCB fits inside limited project enclosure space. Please doublecheck signal pin definition before poweron. Basic embedded development knowledge is recommended for assembly. Raspberry Pi Pico main board is not included in this package.
- Brand: AJMRTC
- Product Type: 2Channel UART To RS485 Converter Module
- Main Transceiver Chip: SP3485
- Compatible Host: Raspberry Pi Pico, Pico series
- Input Signal: TTL UART × 2
- Output Signal: Standard RS485 × 2
- Connector: Standard Pico compatible pin header
- Baud Rate Range: 300bps115200bps
- Application: Industrial serial communication, MCU debugging, data collection, electronic DIY embedded project
- Condition: New aftermarket serial adapter module

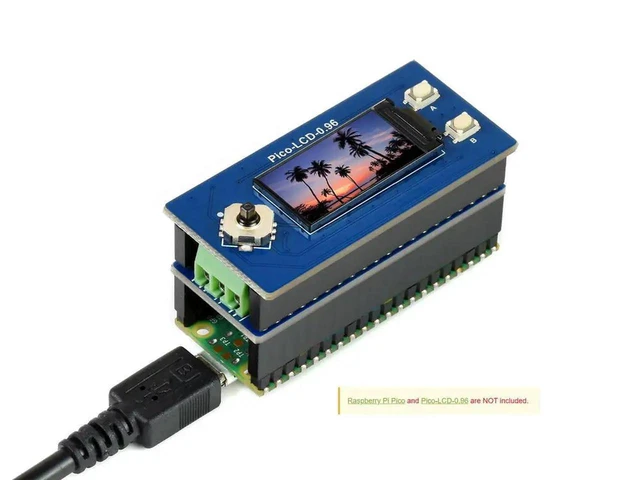

- Important Note: Raspberry Pi Pico board NOT included
- Important Note: Confirm pin definition before poweron to avoid hardware burnout
