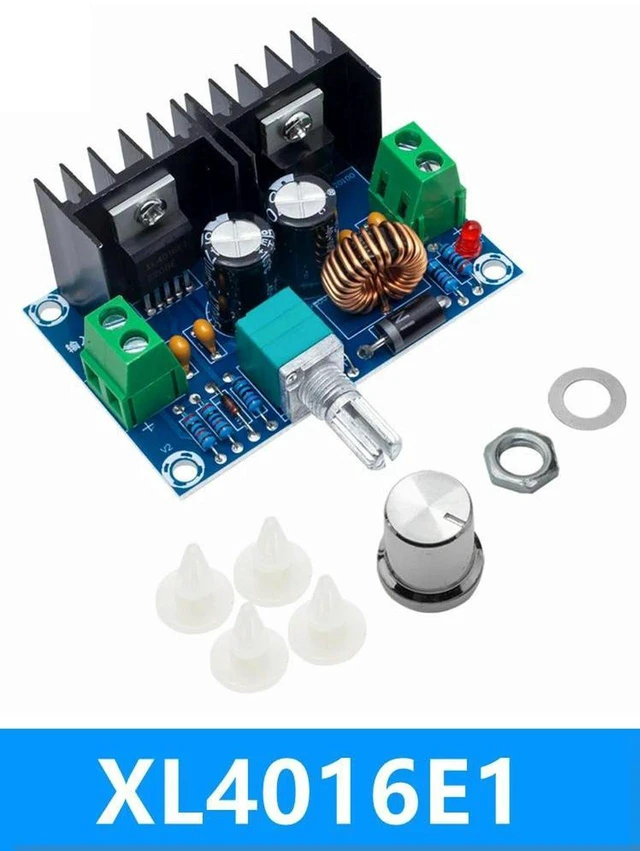

AJMRTC XH-M401 XL4016E1 DC-DC Buck Converter 8A 200W High Power Step Down Voltage Regulator Module, DC 4-40V Input 1.25-36V Adjustable Output PWM Power Board for LED Driver, Battery Charging & DIY
- - High power XL4016E1 buck module with peak 8A current & 200W power, wide DC 4-40V input, 1.25-36V continuously adjustable output
- - 180KHz PWM control design, up to 94% conversion efficiency, low ripple and stable voltage output
- - Built-in over-current, over-temperature and short-circuit protection to protect your electronic devices
- - Equipped with large heatsink and potentiometer for simple and precise output voltage adjustment
- - Widely used for LED drivers, battery charging, robotics, lab power supplies and DIY electronic projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC XH-M401 is a high-performance DC-DC step-down buck converter based on XL4016E1 chip. It converts high DC input voltage to lower adjustable DC voltage. It supports DC 4V-40V input and adjustable DC 1.25V-36V output, peak 8A current and maximum 200W power. Adopting 180KHz fixed PWM switching frequency, it can reach up to 94% conversion efficiency with low output ripple. Multiple safety protections including overcurrent, overtemperature and short-circuit protection prevent circuit damage from overload. The potentiometer enables easy and accurate voltage tuning. The pre-installed large heatsink enhances heat dissipation under heavy loads. It is ideal for DIY bench power supply, LED driver, battery charging, robot equipment, electronic experiments and circuit maintenance. Note: external cooling fan is recommended at 8A peak load; long-term continuous operation is suggested below 5A.
- Model: XH-M401
- Main Chip: XL4016E1
- Type: DC-DC Buck Step-down Converter
- Input Voltage: DC 4V ~ 40V
- Output Voltage: DC 1.25V ~ 36V (Adjustable)
- Max Output Current: 8A (5A recommended for long time continuous use)
- Max Power: 200W
- Switching Frequency: 180KHz
- Conversion Efficiency: Up to 94%
- Control Mode: PWM Modulation
- Protection: Over-current, Over-temperature, Short-circuit Protection

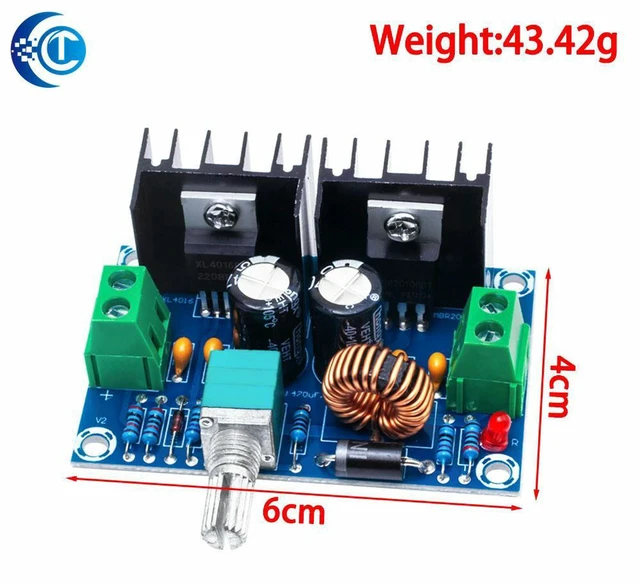

- Size: 61 × 41 × 27mm
- Package: 1 × XH-M401 Buck Converter Module
