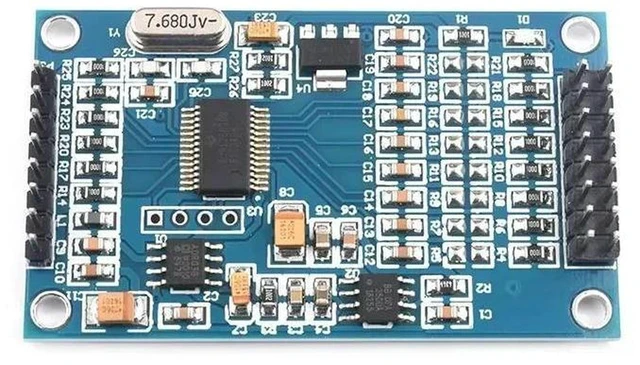

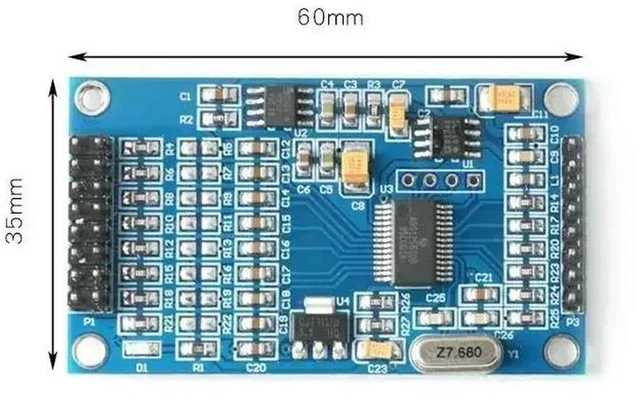

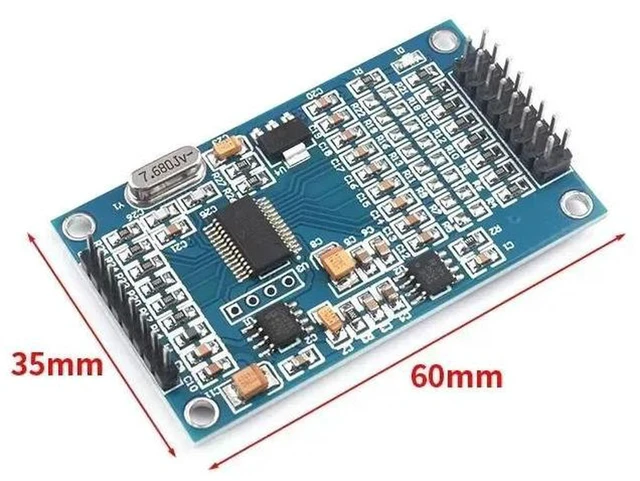

AJMRTC ADS1256 High Precision 24-bit 8 Channel ADC Module, Analog to Digital Converter Data Acquisition Board, ADS1256 AD Module for Industrial Signal Sampling, MCU Electronic Measurement Projects
- - ADS1256 high precision 24-bit ADC chip, supports 8 differential or single-ended analog input channels
- - Ultra-low noise analog front end, achieves high resolution signal sampling for weak voltage signal measurement
- - Flexible SPI communication interface, easy to connect with 51 MCU, STM32, Arduino and other controllers
- - Programmable input gain and data rate, adjustable sampling parameters to fit different measurement scenarios
- - Compact PCB board with pin headers, ideal for sensor data collection, industrial monitoring and lab measurement
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC ADS1256 ADC data acquisition module adopts ADS1256 high-performance 24-bit analog-to-digital converter. It provides 8 analog input channels, configurable as single-ended or differential inputs to capture weak analog signals accurately. With ultra-low noise characteristics, this AD module can complete high-resolution signal conversion for precision measurement tasks.
The module communicates via SPI interface, which is compatible with STM32, Arduino, 51 MCU and other mainstream microcontrollers. Users can set programmable gain and sampling speed to match different sensors and signal sources. The compact design with lead-out pins simplifies wiring. It is widely applied in weight sensing, pressure detection, industrial signal acquisition and laboratory precision electronic measurement.
- Brand: AJMRTC
- Chip: ADS1256
- Resolution: 24-bit
- Analog Input: 8 Channels (Differential / Single-ended)
- Communication: SPI Interface
- Feature: Ultra Low Noise, Programmable Gain
- Power Supply: 5V
- Application: Precision Analog Signal Data Acquisition
