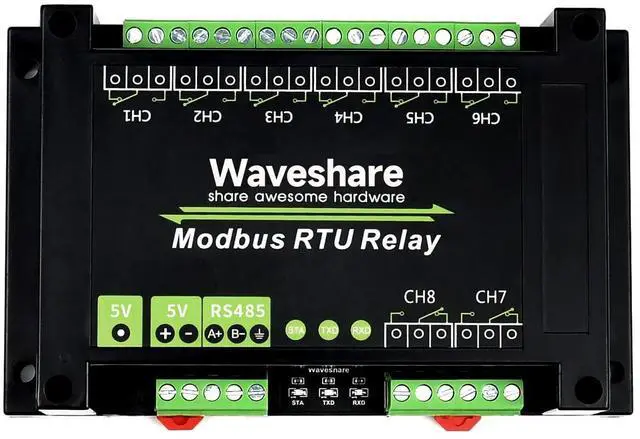

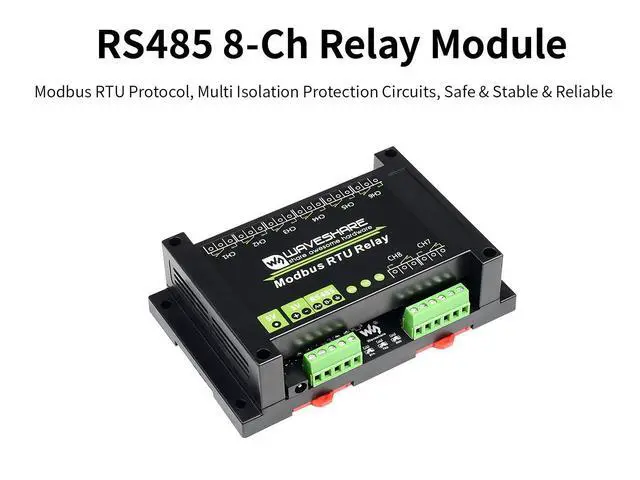

Industrial Modbus RTU 8-ch Relay Module with RS485 Interface Multi Isolation Protection Circuits Comes with an ABS Enclosure

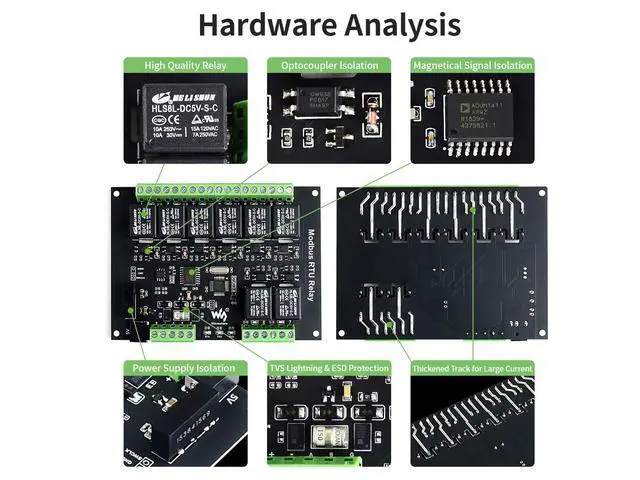

- Configurable device address (1~255), multi devices can be cascaded on RS485 bus. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically; Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption; Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, llgthningproof & anti-electrostatic. Onboard Optocoupler isolation, prevent interference from external high-voltage circuit connected to the relay; Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact rating: 10A 250VAC/30VDC; Rail-mounted ABS plastic enclosure, easy to install, safe to use. 3 LEDs for indicating the MCU status and signal transceiving status
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

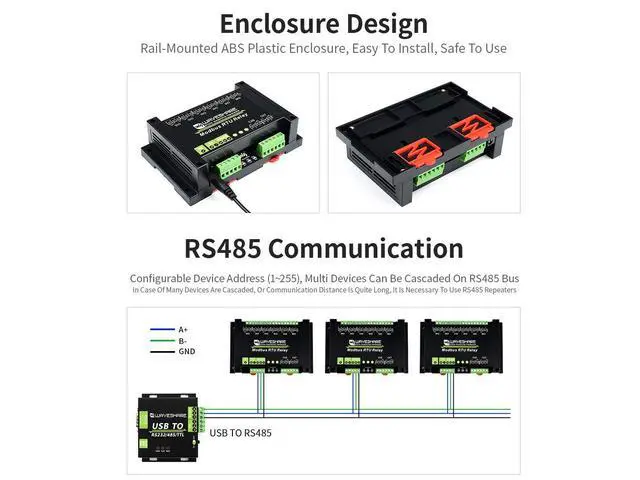

Configurable device address (1~255), multi devices can be cascaded on RS485 bus. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, llgthningproof & anti-electrostatic. Onboard Optocoupler isolation, prevent interference from external high-voltage circuit connected to the relay

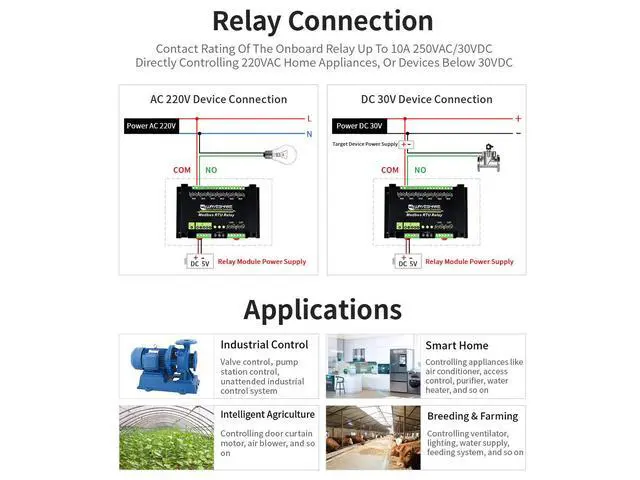

Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact
rating: 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use. 3 LEDs for indicating the MCU status and signal transceiving status
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, llgthningproof & anti-electrostatic. Onboard Optocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact
rating: 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use. 3 LEDs for indicating the MCU status and signal transceiving status
